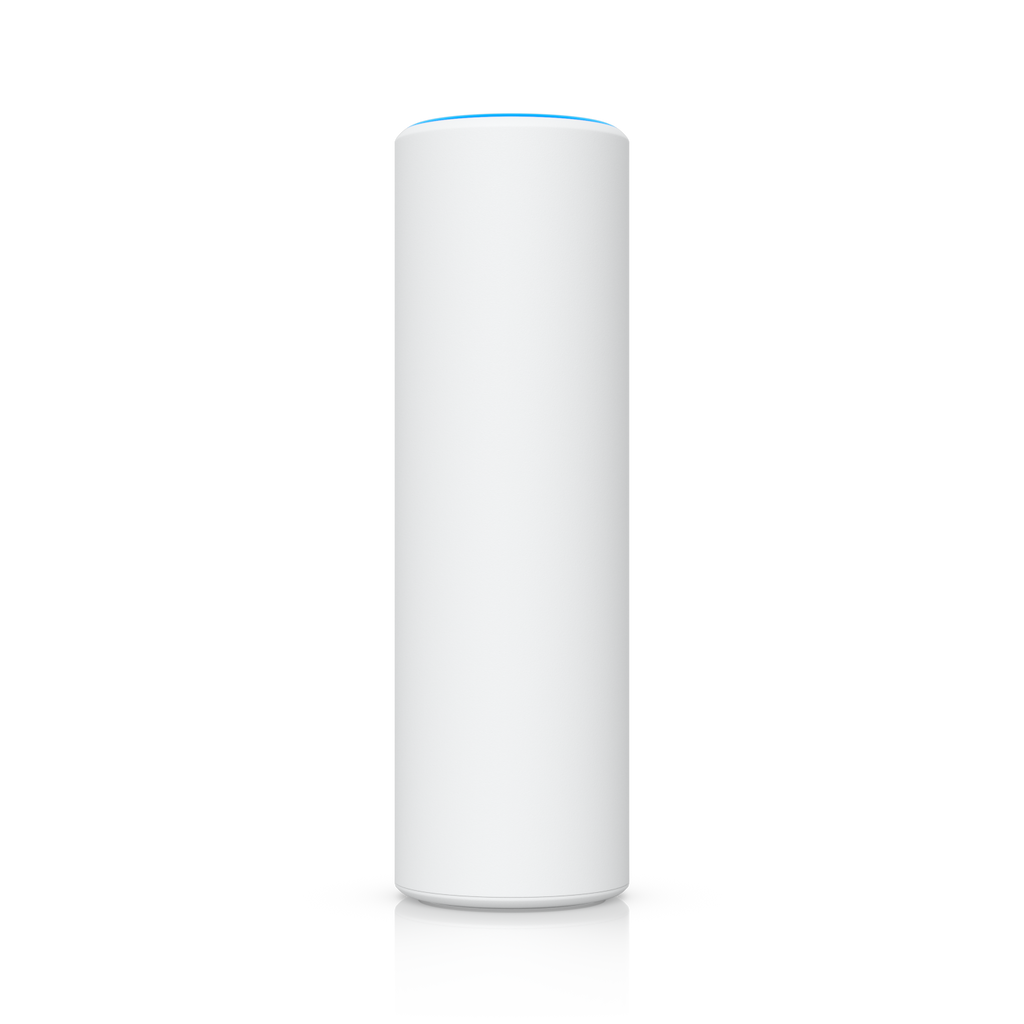

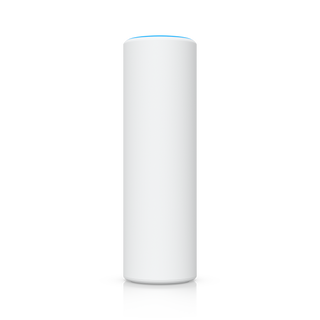

Access Point U7 Mesh
U7-Mesh-US
Compact indoor/outdoor WiFi 7 AP with integrated long-range antenna system.SpecificationsOverview Dimensions ⌀48.5 x 159.5 mm (⌀1.9 x 6.3") WiFi Standard WiFi 7 Spatial Streams 4 Coverage Area 140 m² (1,500...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Compact indoor/outdoor WiFi 7 AP with integrated long-range antenna system.
Specifications
Overview
| Dimensions | ⌀48.5 x 159.5 mm (⌀1.9 x 6.3") |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 4 |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Client Count | 200+ |
| Uplink | 2.5 GbE Cables with shorter boots are recommended |
| Mounting | Wall, Pole, Table stand (Mounts included) |
| Weatherproofing | IPX6 (Installed with the outdoor mount) |
| Power Method | PoE |
Performance
| 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 5 GHz | 4.3 Gbps (BW240) Depends on regulatory region |
| 2.4 GHz | 688 Mbps (BW40) |
| 5 GHz | Omnidirectional: 6 dBi Directional: 10 dBi |
| 2.4 GHz | 3 dBi |
| 5 GHz | 24 dBm |
| 2.4 GHz | 23 dBm |
| Max. BSSIDs | 8 per Radio |
| 802.11be (WiFi 7) | 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
Hardware
| Max. Power Consumption | 13W |
| Supported Voltage Range | 42.5–57V DC |
| Networking Interface | (1) 2.5 GbE RJ45 port |
| Weight | 313 g (11 oz) |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate |
| Mount Material | UV-stabilized polycarbonate |
| System | W/B |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz) |
| Certifications | CE, FCC, IC |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
Software
| UniFi Network | Version 10.1.85 and later |
| Mobile App | UniFi iOS™: Version 10.32.1 and later Android™: Version 10.35.1 and later |
Downloads & documents
