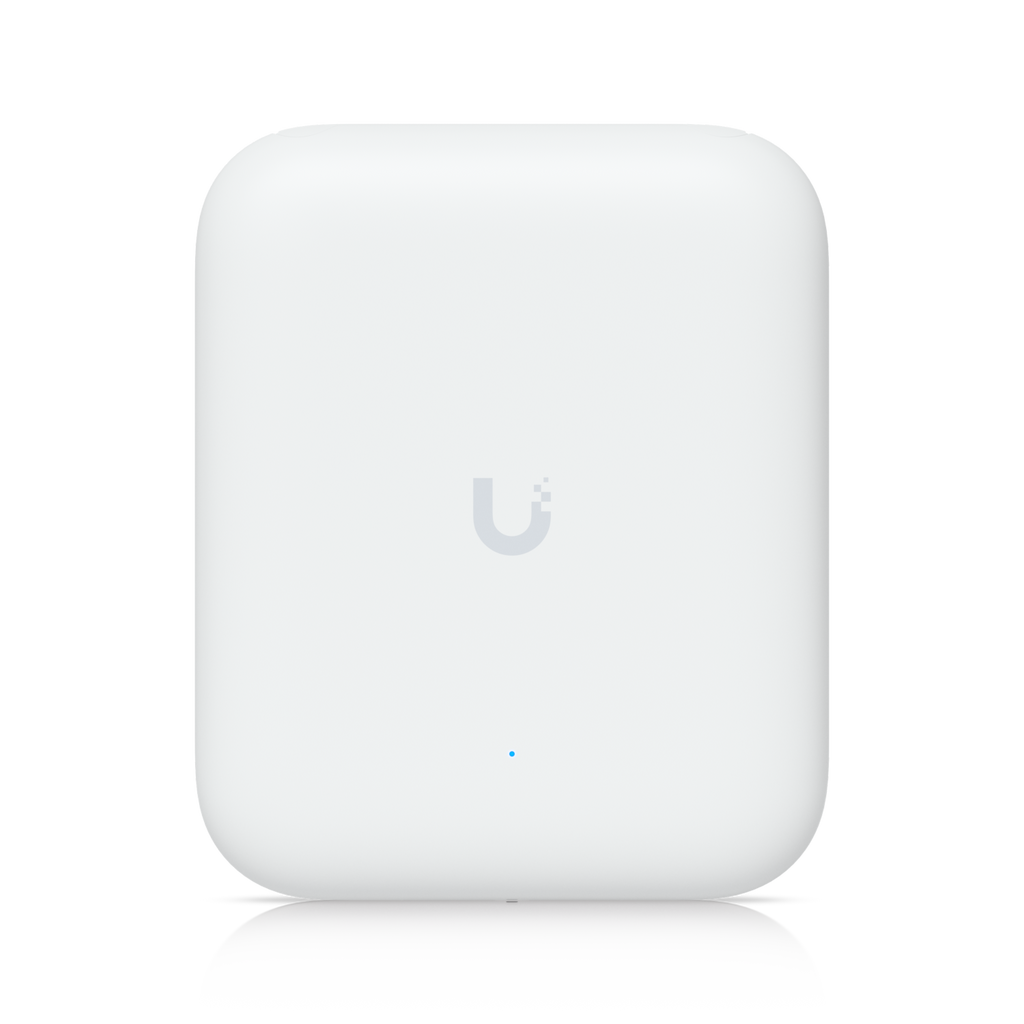

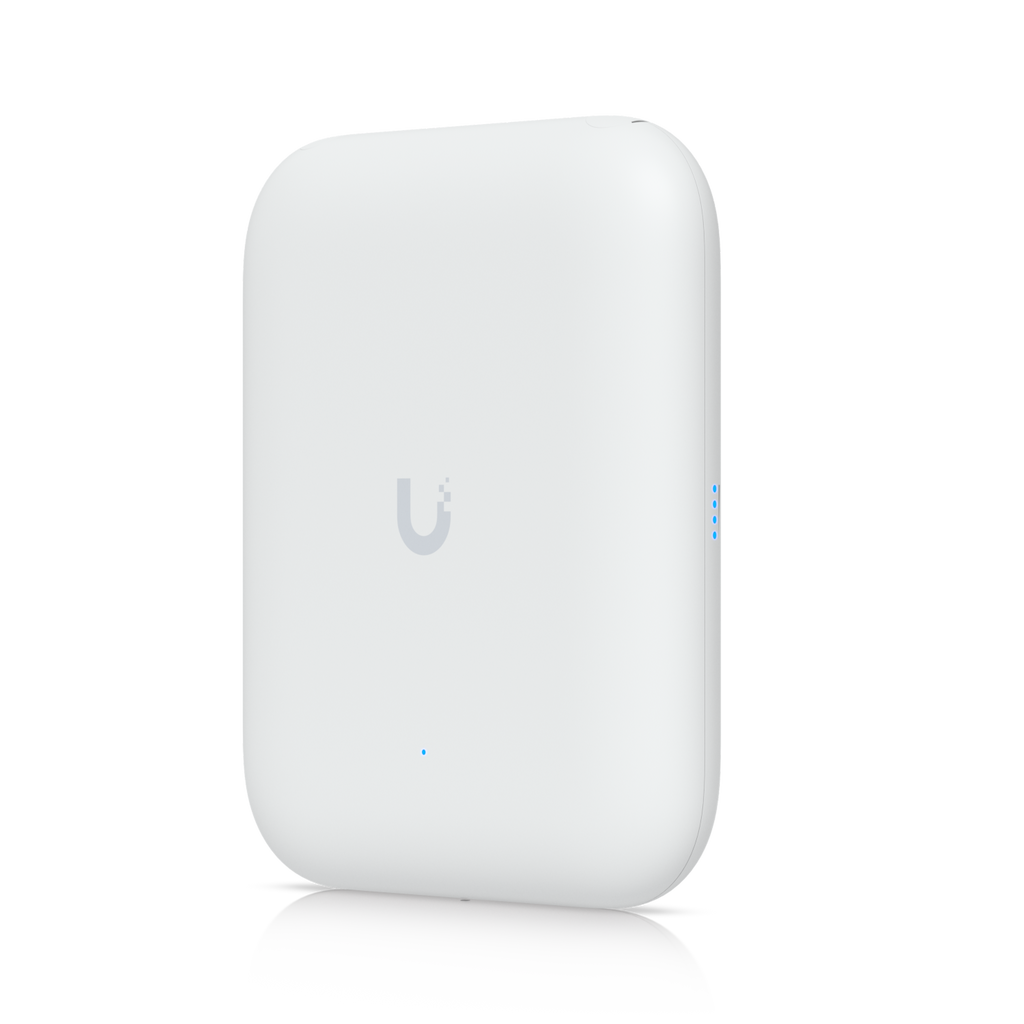

Access Point U7 Pro Outdoor
U7-Pro-Outdoor-US
All-weather IP67 WiFi 7 AP with 6 spatial streams, extended-range AFC 6 GHz support, integrated directional super antenna, and articulation mounting bracket.Note. 6 GHz operation is supported in these countries....

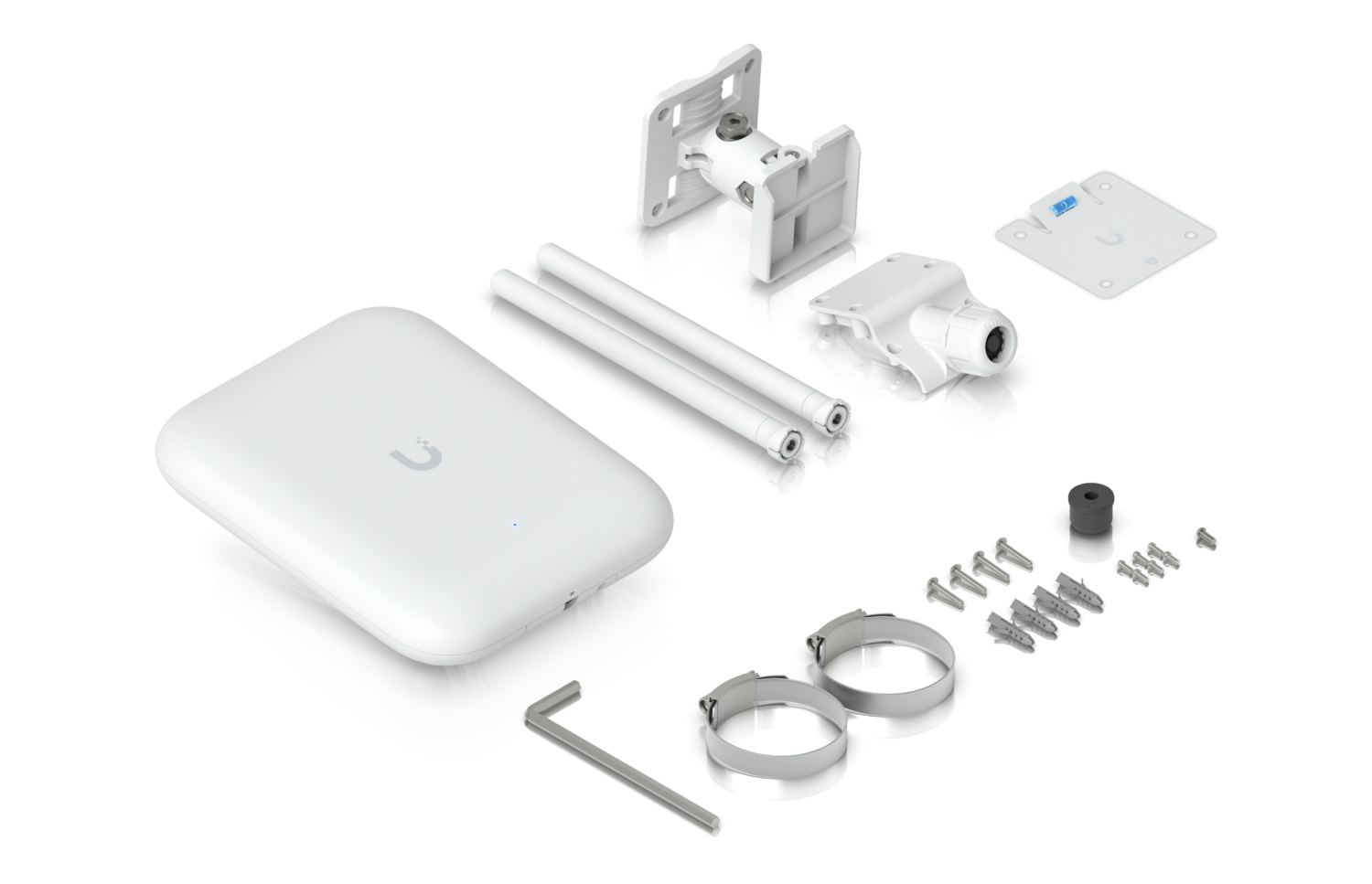

Or build it into a bundle — save up to 6% ↓What’s in the box
Everything that ships with your Access Point U7 Pro Outdoor — straight from the manufacturer.
What it is, and who it is for.
Built for outside — weather-sealed range that holds up to the elements.
How it compares
The honest cross-shop against the real alternatives — same job, no recurring license fees.
| Access Point U7 Pro OutdoorUniFi · $349.00 | TP-Link Omada EAP772 (Wi-Fi 7)~$200 | Aruba Instant On AP25~$230 | |
|---|---|---|---|
| Wi-Fi standard | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 6/6E — no Wi-Fi 7 in SMB line |
| Recurring license | None | None | None |
| Ecosystem | One console with gateway, switching, cameras | Omada network only | Wi-Fi + switching only |
| Vendor | Ubiquiti, US-based | TP-Link | HPE / Aruba, US-based |
| Price | $349.00 | ~$200 | ~$230 |
Same AP class, no per-device licensing, and it joins a network you can grow into. See the full comparison →
Buy your Access Point U7 Pro Outdoor here and a US-based team stands behind it — pre-sales design, setup guidance, and RMA help when you need it. Not a forum thread you hope someone answers. A real Giant in your corner.
Get a hand with your build →What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
All-weather IP67 WiFi 7 AP with 6 spatial streams, extended-range AFC 6 GHz support, integrated directional super antenna, and articulation mounting bracket.
Note. 6 GHz operation is supported in these countries. Long-range 6 GHz performance with AFC available in FCC/IC region only.
Key features
WiFi 7 with 6 GHz support
6 spatial streams
Long-range 6 GHz performance with AFC*
465 m² (5,000 ft²) open space coverage with the integrated directional super antenna
Software-switchable from internal directional to included external omni antennas
300+ connected devices
Powered using PoE+
2.5 GbE uplink
Versatile wall and pole mounting
Weatherproof (outdoor exposed)
Note. 6 GHz operation is supported in these countries.
*Available in FCC/IC region only.
Specifications
Overview
| Dimensions | Without mount: 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6") With mount: 170 x 208 x 121.8 mm (6.7 x 8.2 x 4.8") |
| WiFi Standard | WiFi 7 With 6 GHz support |
| Spatial Streams | 6 |
| Coverage Area | 465 m² (5,000 ft²) |
| Max. Client Count | 300+ |
| Uplink | 2.5 GbE |
| Mounting | Wall, Pole (Mounts Included) |
| Weatherproofing | IPX6 IP67 (With cable-gland door kit) |
| Power Method | PoE+ |
Performance
| 6 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 6 GHz | 5.8 Gbps (BW320) |
| 5 GHz | 4.3 Gbps (BW240) |
| 2.4 GHz | 688 Mbps (BW40) |
| 6 GHz | Directional internal: 10 dBi, 90° x 45° |
| 5 GHz | Directional internal: 11 dBi, 90° x 45° External omni: 8 dBi, 360° x 15° |
| 2.4 GHz | Directional internal: 8 dBi, 90° x 90° External omni: 6 dBi, 360° x 15° |
| 6 GHz | 26 dBm With 6 GHz Extended Range mode. Available in FCC/IC region only |
| 5 GHz | 26 dBm |
| 2.4 GHz | 23 dBm |
| Max. BSSIDs | 8 per Radio |
| 802.11be (WiFi 7) | 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
| 802.11ax (WiFi 6/6E) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
Hardware
| Max. Power Consumption | 21W |
| Supported Voltage Range | 42.5–57V DC |
| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| Weight | Device: 1.2 kg (2.6 lb) With mount: 1.33 kg (2.9 lb) |
| Wind Loading | 74.6 N at 200 km/h (16.8 lbf at 125 mph) |
| Pole Mount Diameter | 1–2.5" (25–63.5 mm) |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | UV-stabilized polycarbonate |
| System | (1) Power: White/Blue (4) Mesh signal: Blue |
| Certifications | FCC, IC |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
Software
| UniFi Network | Version 9.0.114 and later |
| Mobile App | iOS™ version 10.20.2 and later Android™ version 10.21.7 and later |
