Access Point U7 Pro XG

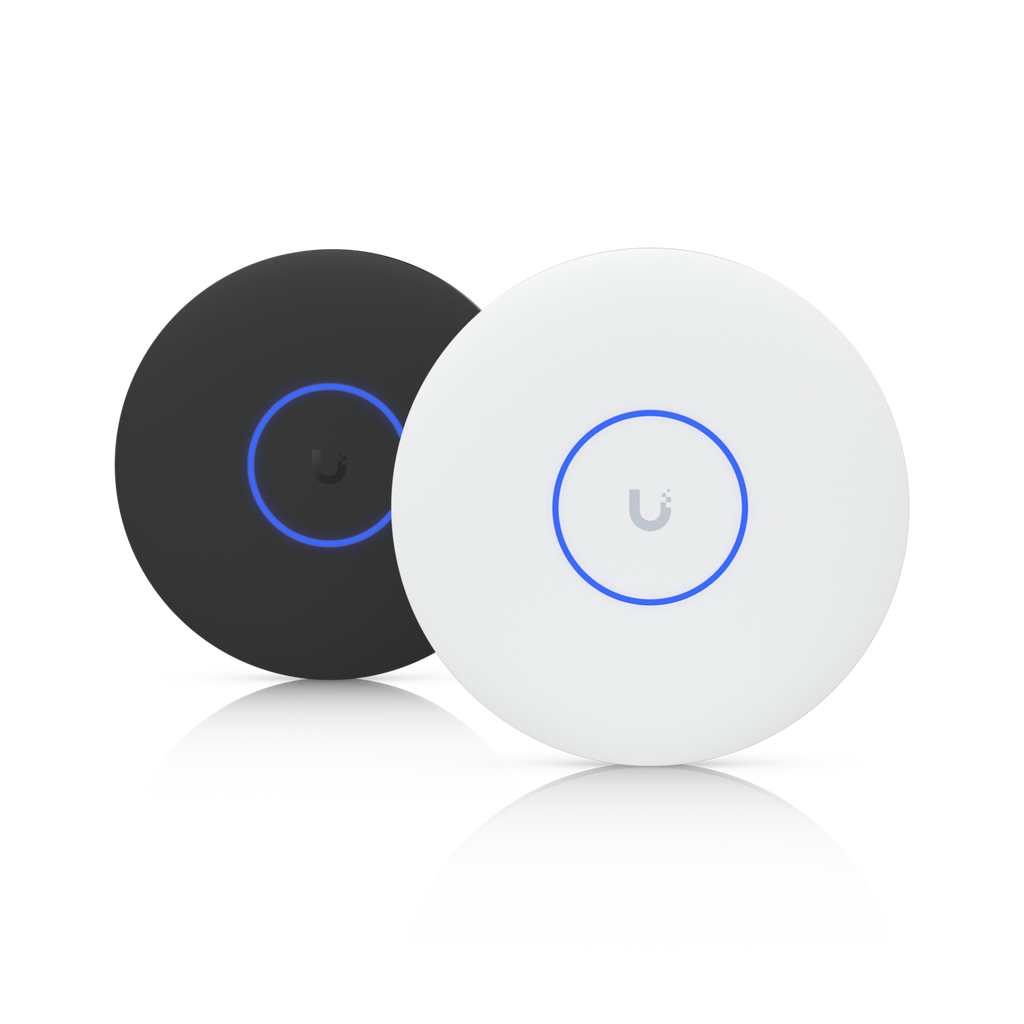

U7-Pro-XG-B-US · Black
Ceiling-mounted 6-stream WiFi 7 AP with 10/5/2.5/1 GbE support.Note. 6 GHz operation is supported in these countries.Key features WiFi 7 with 6 GHz support 6 spatial streams 140 m² (1,500...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Ceiling-mounted 6-stream WiFi 7 AP with 10/5/2.5/1 GbE support.
Note. 6 GHz operation is supported in these countries.
Key features
WiFi 7 with 6 GHz support
6 spatial streams
140 m² (1,500 ft²) coverage
300+ connected devices
Powered using PoE+
10 GbE uplink
Note. 6 GHz operation is supported in these countries.
Specifications
Overview
| Dimensions | ⌀206 x 32.5 mm (⌀8.1 x 1.3") |
| WiFi Standard | WiFi 7 With 6 GHz support |
| Spatial Streams | 6 |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Client Count | 300+ |
| Uplink | 10 GbE |
| Mounting | Ceiling, Wall (Lite Mount Included) |
| Power Method | PoE+ |
Performance
| 6 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 6 GHz | 5.8 Gbps (BW320) |
| 5 GHz | 4.3 Gbps (BW240) |
| 2.4 GHz | 688 Mbps (BW40) |
| 6 GHz | 6 dBi |
| 5 GHz | 5 dBi |
| 2.4 GHz | 4 dBi |
| 6 GHz | 24 dBm |
| 5 GHz | 26 dBm |
| 2.4 GHz | 23 dBm |
| Max. BSSIDs | 8 per Radio |
| 802.11be (WiFi 7) | 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320) 5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
Hardware
| Max. Power Consumption | 22W |
| Supported Voltage Range | 42.5–57V DC |
| Networking Interface | (1) 10 GbE RJ45 port |
| Weight | 750 g (1.7 lb) |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | Stainless steel (SUS304), galvanized steel (SGCC) |
| System | White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) |
| Certifications | CE, FCC, IC, Anatel: 06630-25-08356 |
| Operating Frequency | US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz U-NII-5 to U-NII-8: 5925 - 7125 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5850 MHz 5925 - 7125 MHz For worldwide, it depends on the regulatory region |
| Ambient Operating Temperature | -30 to 40° C (-22 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
Software
| UniFi Network | Version 9.0.114 and later (U7 Pro XG - White) Version 9.1.120 and later (U7 Pro XG - Black) |
