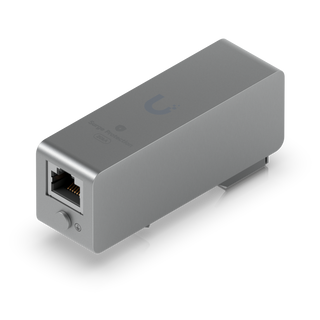

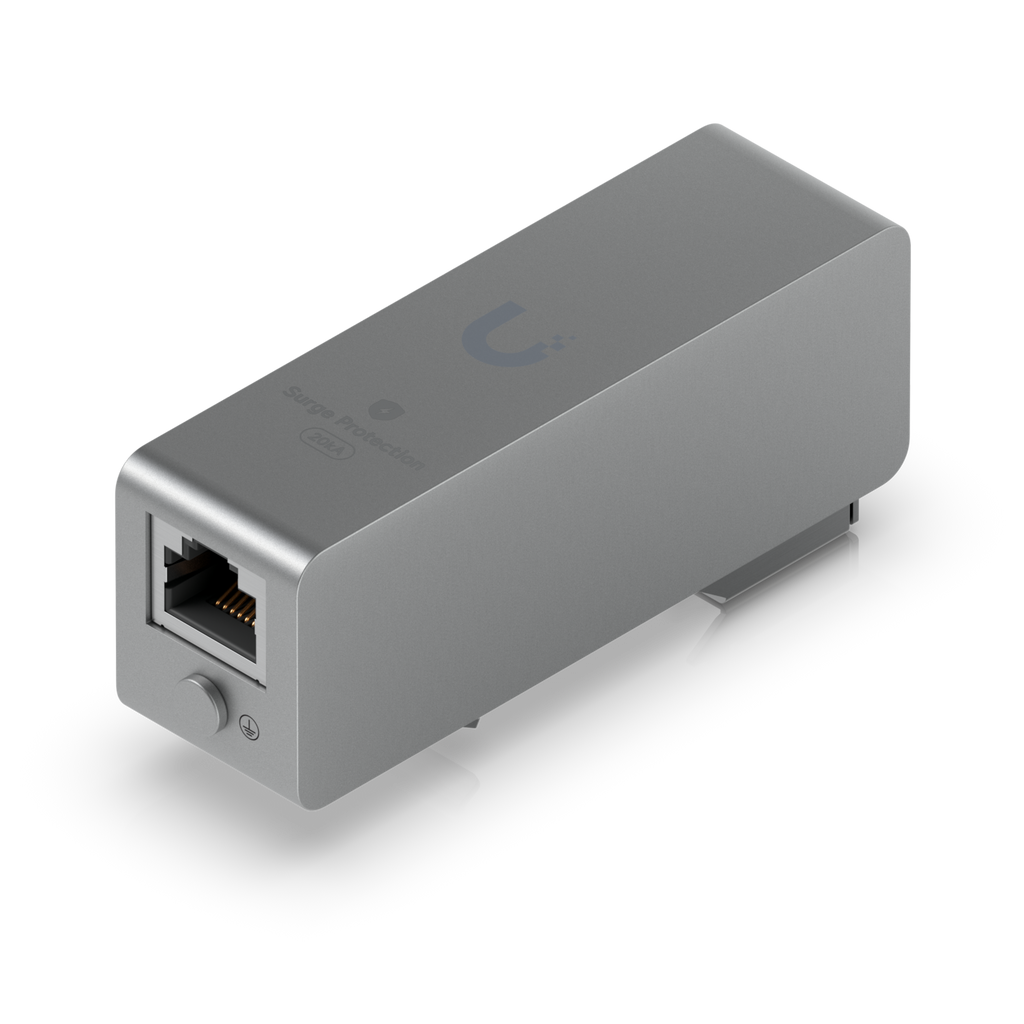

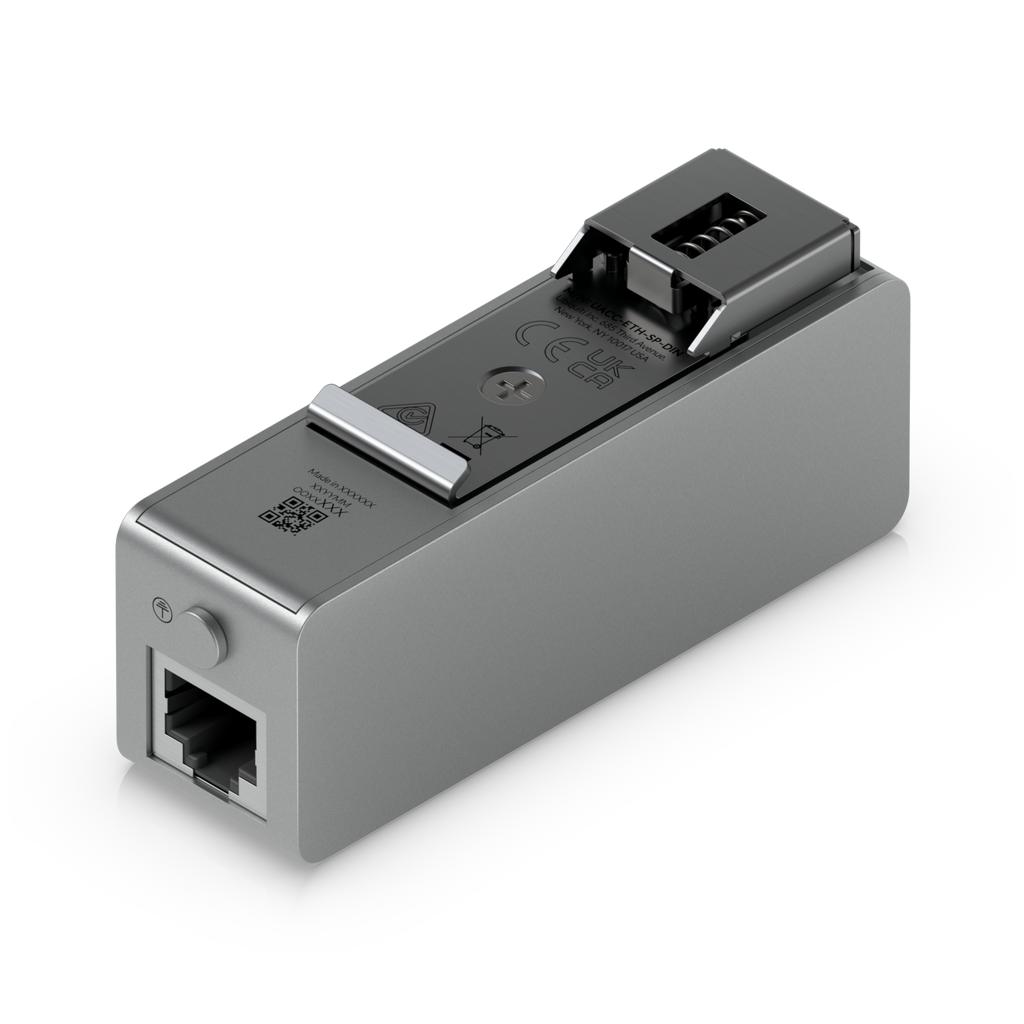

Ethernet Surge Protection (Single-Port)
UACC-ETH-SP-DIN
Bidirectional protection for up to 10 GbE, PoE++, and 20kA surge discharge for indoor installation.Key features Wall/DIN rail mount Multiple grounding pointsSpecificationsMechanical Dimensions 89 x 25.5 x 37.4 mm (3.5...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Bidirectional protection for up to 10 GbE, PoE++, and 20kA surge discharge for indoor installation.
Key features
Wall/DIN rail mount
Multiple grounding points
Specifications
Mechanical
| Dimensions | 89 x 25.5 x 37.4 mm (3.5 x 1 x 1.5") |
| Weight | 74 g (2.6 oz) |
| Enclosure Material | Polycarbonate, SGCC steel |
Hardware
| Networking Interface | (2) RJ45 female connectors |
| DC Spark-Over Voltage | 90V @ 100V/s |
| Max. Impulse Spark-Over Voltage | 600V @ 1kV/µs |
| Discharge Current | 20kA |
| Insulation | Max. Resistance: 1G ohm @ 50V |
| Max. Capacitance | 1.0 pF @ 1 MHz |
| Data Line Protection | Up to 10 Gbps |
| ESD/EMP Protection | Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs |
| Ambient Operating Temperature | -40° to +80° C (-40° to 176° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
