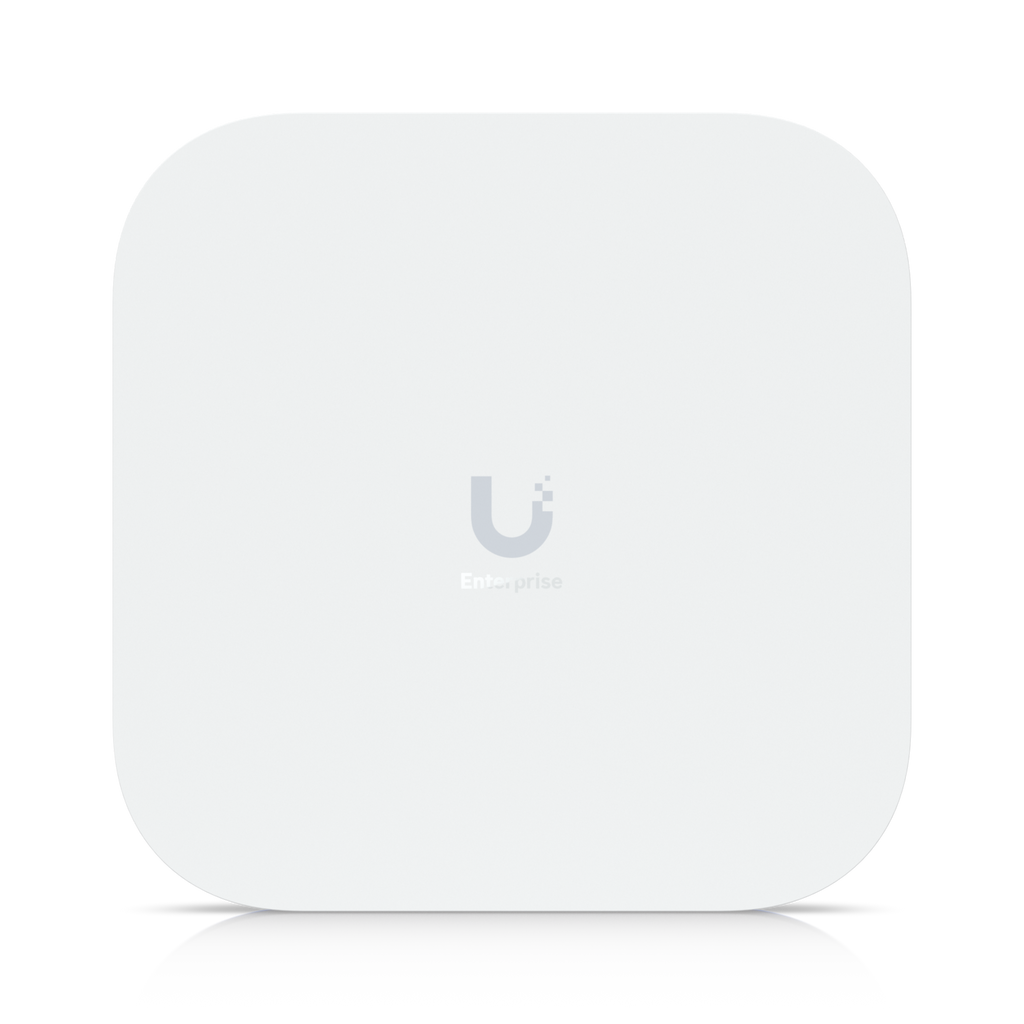

Access Point E7 Campus Indoor
E7-Campus-Indoor-US
Enterprise-grade access point with 10-stream WiFi 7 performance, expanded 6 GHz indoor spectrum capability, a 10 GbE uplink, and a redundant GbE port for high availability.Note. 6 GHz operation is...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Enterprise-grade access point with 10-stream WiFi 7 performance, expanded 6 GHz indoor spectrum capability, a 10 GbE uplink, and a redundant GbE port for high availability.
Note. 6 GHz operation is supported in these countries.
Long-range 6 GHz performance with AFC available in FCC/IC region only.
Specifications
Overview
| Dimensions | Device: 250 x 250 x 45.5 mm (9.8 x 9.8 x 1.8") Articulating mount: ⌀104 x 149.4 (⌀4.1 x 5.9") |
| WiFi Standard | WiFi 7 With 6 GHz support |
| Spatial Streams | 10 |
| Coverage Area | 465 m² (5,000 ft²) |
| Max. Client Count | 1000+ |
| Uplink | 10 GbE 1 GbE |

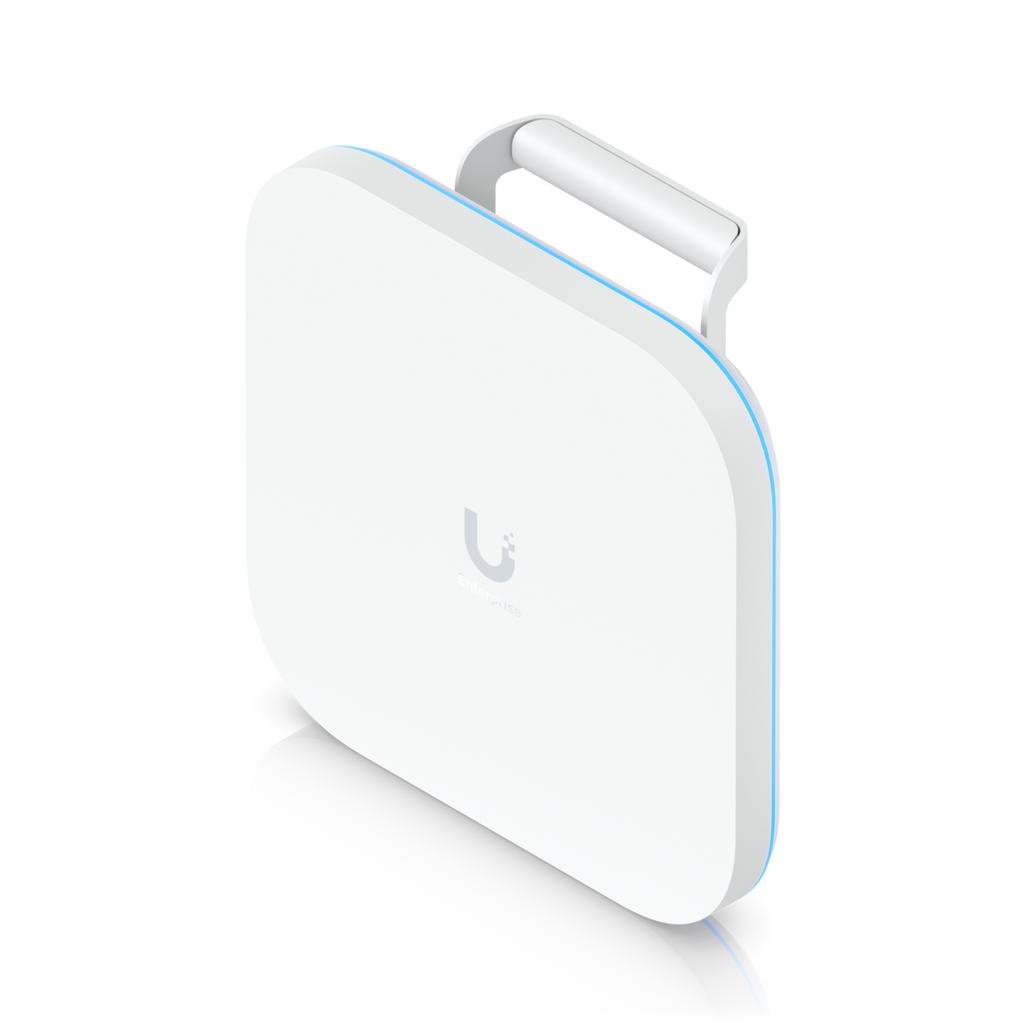

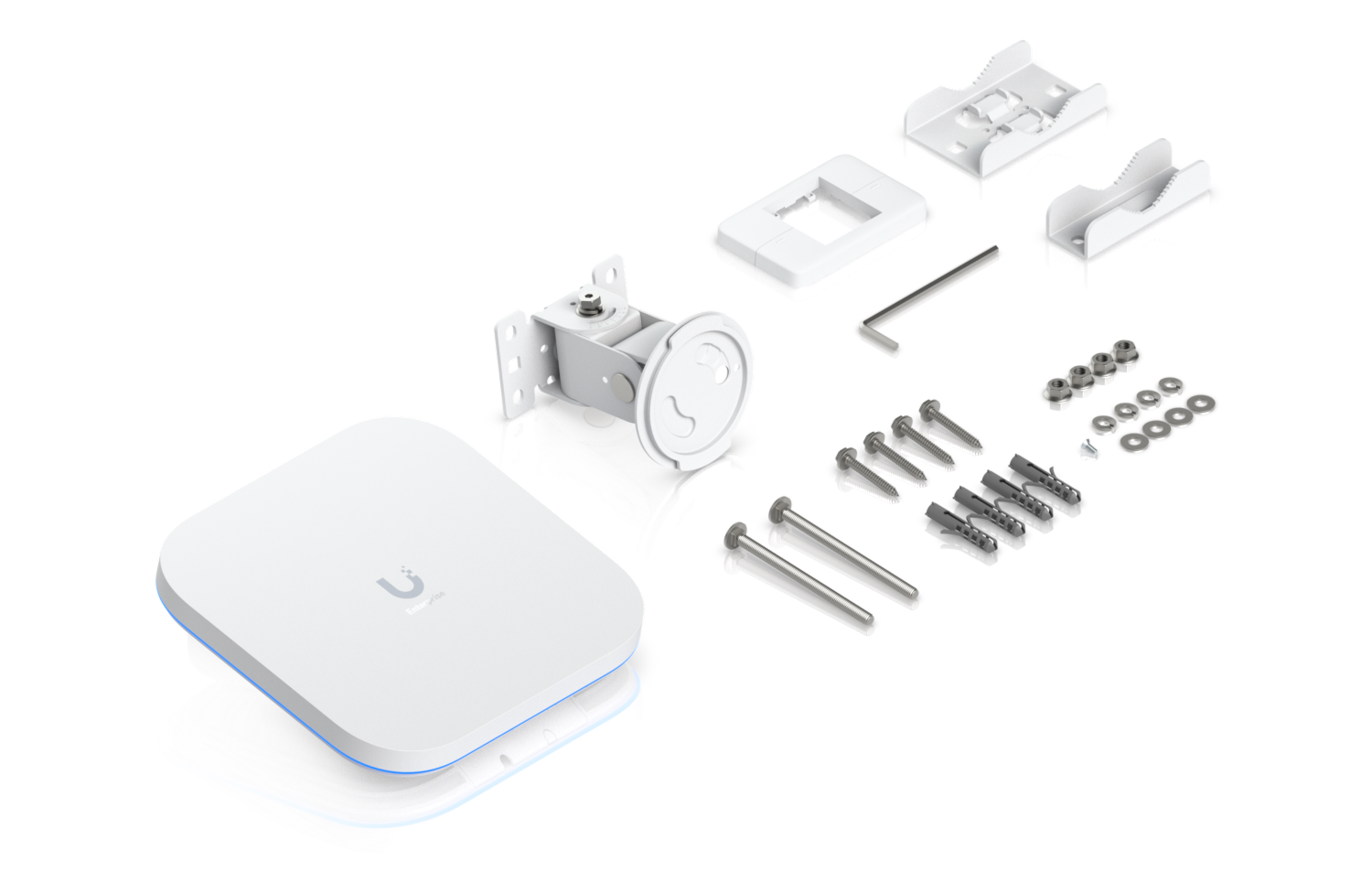

| Mounting | Wall, Pole (Mounts Included) VESA (Optional) |
| Power Method | PoE++ |
Performance
| 6 GHz | 4 x 4 (DL/UL MU-MIMO) |
| 5 GHz | 4 x 4 (DL/UL MU-MIMO) |
| 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 6 GHz | 11.5 Gbps (BW320) |
| 5 GHz | 8.6 Gbps (BW240) |
| 2.4 GHz | 688 Mbps (BW40) |
| 6 GHz | Directional internal: 12 dBi, 90° x 50° |
| 5 GHz | Directional internal: 12 dBi, 100° x 55° |
| 2.4 GHz | Directional internal: 9 dBi, 90° x 80° |
| 6 GHz | 30 dBm (36 dBm EIRP) With 6 GHz Extended Range mode. Available in FCC/IC region only. |
| 5 GHz | 30 dBm |
| 2.4 GHz | 23 dBm |
| Max. BSSIDs | 8 per Radio |
| 802.11be (WiFi 7) | 7.3 Mbps to 11.5 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11n | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
Hardware
| Max. Power Consumption | 44W |
| Supported Voltage Range | 42.5–57V DC |
| Networking Interface | (1) 10 GbE RJ45 port (1) GbE RJ45 port |
| Weight | Device: 2.2 kg (4.9 lb) With articulating mount: 3.1 kg (6.8 lb) |
| Pole Mount Diameter | 1–2.5" (25–63.5 mm) |
| Antennas | (1) Internal with directional patterns |
| 6 GHz | 90° x 50° |
| 5 GHz | 100° x 55° |
| 2.4 GHz | 90° x 80° |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | Stainless steel, aluminum alloy |
| System | R/G/B |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) |
| Certifications | FCC, IC |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
Software
| UniFi Network | Version 10.0.162 and later |
| Mobile App | iOS™ version 10.30.2 and later Android™ version 10.31.4 and later |
