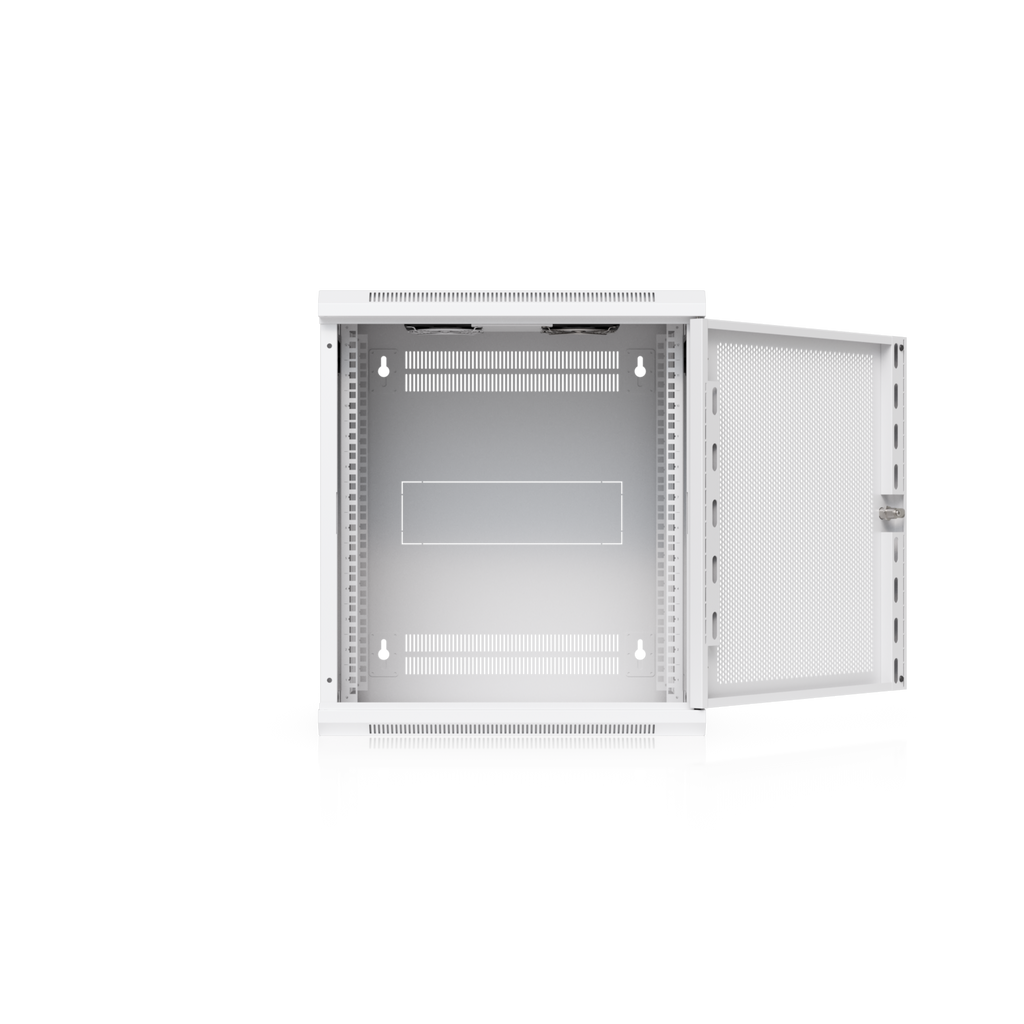

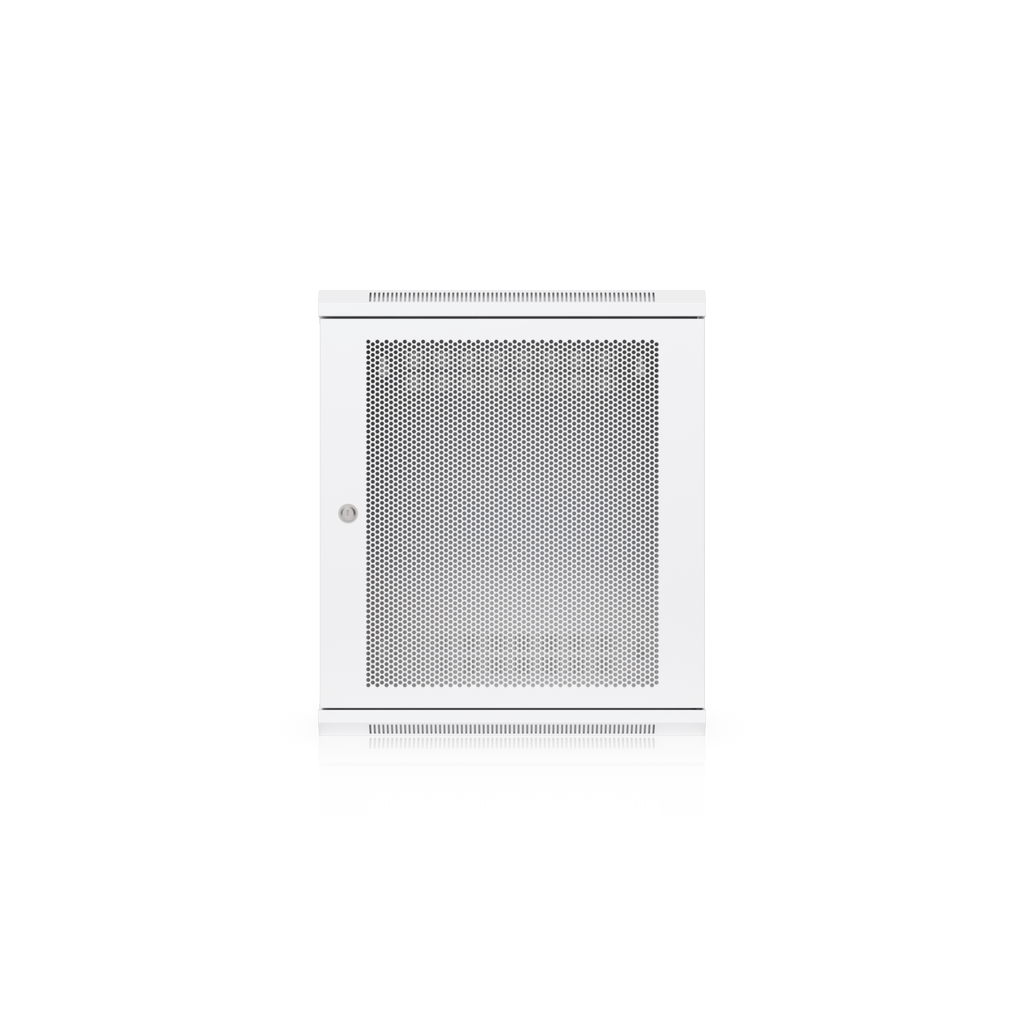

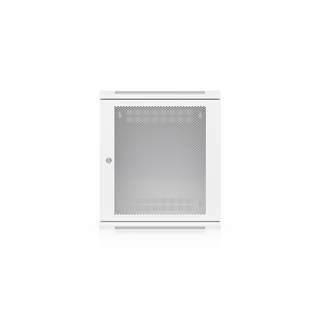

12U Rack Cabinet, 450 mm, Perforated Door
UACC-Rack-12U-Wall-450-P
Fully assembled wall-mount rack with built-in fans and removable panels, engineered for easy equipment access and space-efficient small-scale deployments.Shipping note. Due to the product’s size and weight, delivery may be...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Fully assembled wall-mount rack with built-in fans and removable panels, engineered for easy equipment access and space-efficient small-scale deployments.
Shipping note. Due to the product’s size and weight, delivery may be restricted for certain residential addresses.
Specifications
Overview
| Dimensions | Packaging: 580 x 675 x 735 mm (22.8 x 26.6 x 28.9") Rack: 550 x 450 x 635 mm (21.7 x 17.7 x 25") |
| Weight | Packaging: 22 kg (48.5 lb) Rack: 17.8 kg (39.2 lb) |
| Enclosure Material | SPCC steel Door/side panels: 0.8 mm (0.03") Main body: 0.8 mm (0.03") Posts: 2 mm (0.08") |
| Color | White |
| Treatment | Powder coating |
| U Height | 12U |
| Rack Type | 4 post, enclosed cabinet |
| Mounting Hole Type | Square |
| Adjustable Mounting Depth | Default 283 mm (11.1") Max. 305 mm (12") Adjustable pitch 22 mm (0.9") |
| Max. Weight Capacity | 50 kg (110 lb) |
| Front Door | Perforated Default left-hand outswing, reversible |
| Side Panels | (2) Solid, removable and lockable |
| Mounting | Wall mount |
| Acoustic Noise | ≤ 50 dB(A) sound pressure level Measured at 1 m in front of the enclosure, with cabinet empty (no installed equipment), under nominal fan operating conditions per ISO 7779 |
| Cable Entry Opening | (1) Rear wall: 350 x 100 mm (13.8 x 3.9") (1) Top: 336.5 x 52.5 mm (13.2 x 2.1") (1) Bottom: 336.5 x 52.5 mm (13.2 x 2.1") |
| Security | (1) Front door lock (4) Side panel locks (2) Keys |
| Standard | CE; EIA/ECA-310-E; RoHS |
| Supported Devices | Compatible with Ubiquiti rack-mount devices up to 325 mm in depth. Note: 325 mm devices can be installed when the mounting depth is set to 305 mm (max), but DC power backup is not supported due to limited rear-side clearance. Includes UNVR-Pro, UNAS-Pro, USW-Pro-Max-24, USW-Pro-Max-24-PoE, USW-Pro-Max-48, USW-Pro-Aggregation, USW-Enterprise-24-PoE |
