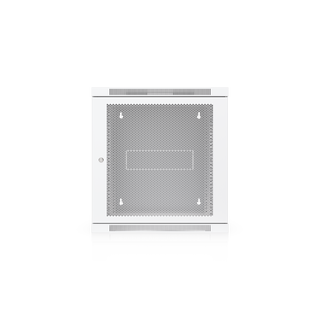

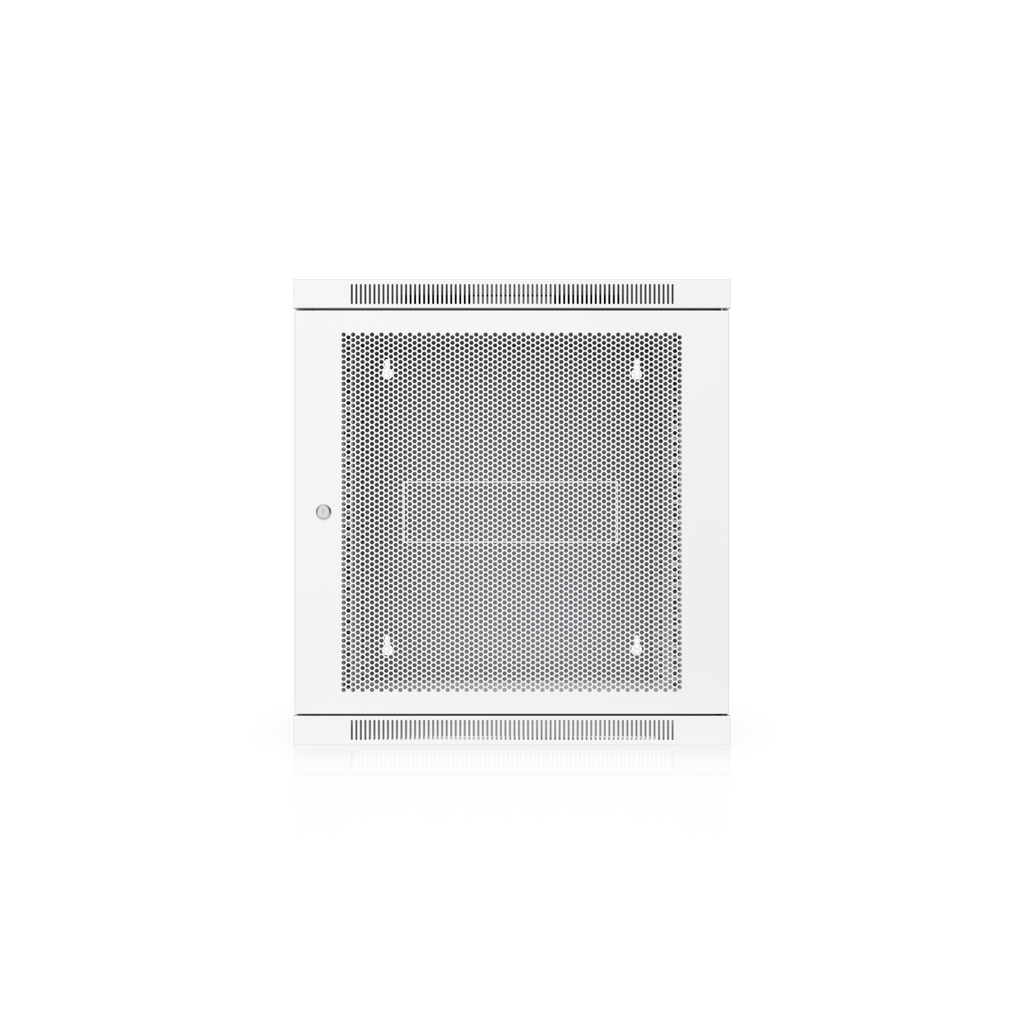

12U Rack Cabinet, Swing, Perforated Door
UACC-Rack-12U-Wall-SW-P
Fully assembled wall-mount rack with built-in fans and removable panels, engineered for easy equipment access and space-efficient small-scale deployments.Shipping note. Due to the product’s size and weight, delivery may be...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.

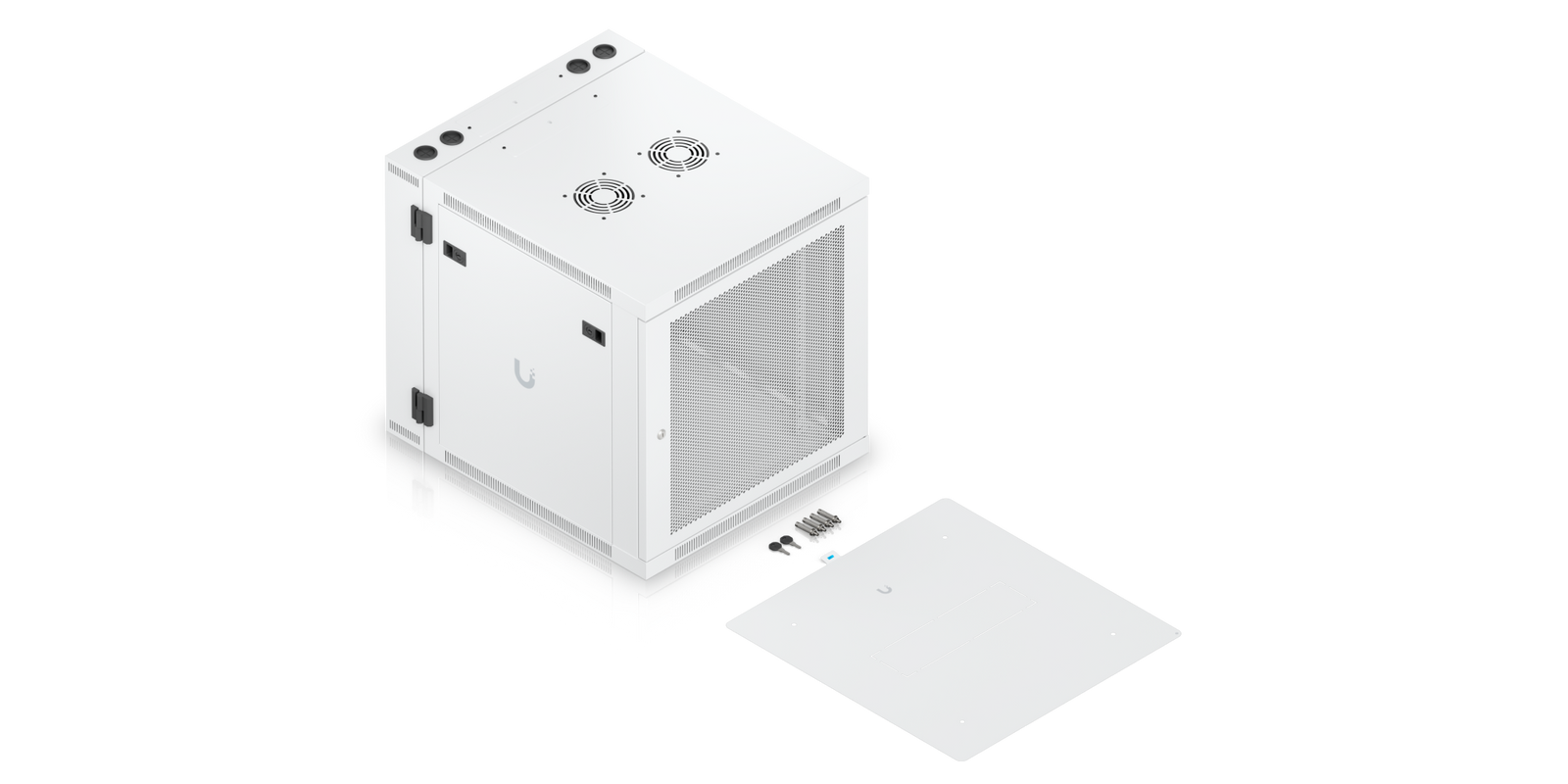

Fully assembled wall-mount rack with built-in fans and removable panels, engineered for easy equipment access and space-efficient small-scale deployments.
Shipping note. Due to the product’s size and weight, delivery may be restricted for certain residential addresses.
Specifications
Overview
| Dimensions | Packaging: 725 x 840 x 735 mm (28.5 x 33.1 x 28.9") Rack: 600 x 700 x 639 mm (23.6 x 27.6 x 25.2") |
| Weight | Packaging: 31.8 kg (70.1 lb) Rack: 25.8 kg (56.9 lb) |
| Enclosure Material | SPCC steel Door/side panels: 1.2 mm (0.05") Main body: 1.2 mm (0.05") Posts: 2 mm (0.08") |
| Color | White |
| Treatment | Powder coating |
| U Height | 12U |
| Rack Type | 4 post, enclosed cabinet |
| Mounting Hole Type | Square |
| Adjustable Mounting Depth | Default 434 mm (17.1") Max. 559 mm (22") Adjustable pitch 25 mm (1") |
| Max. Weight Capacity | 80 kg (176 lb) |

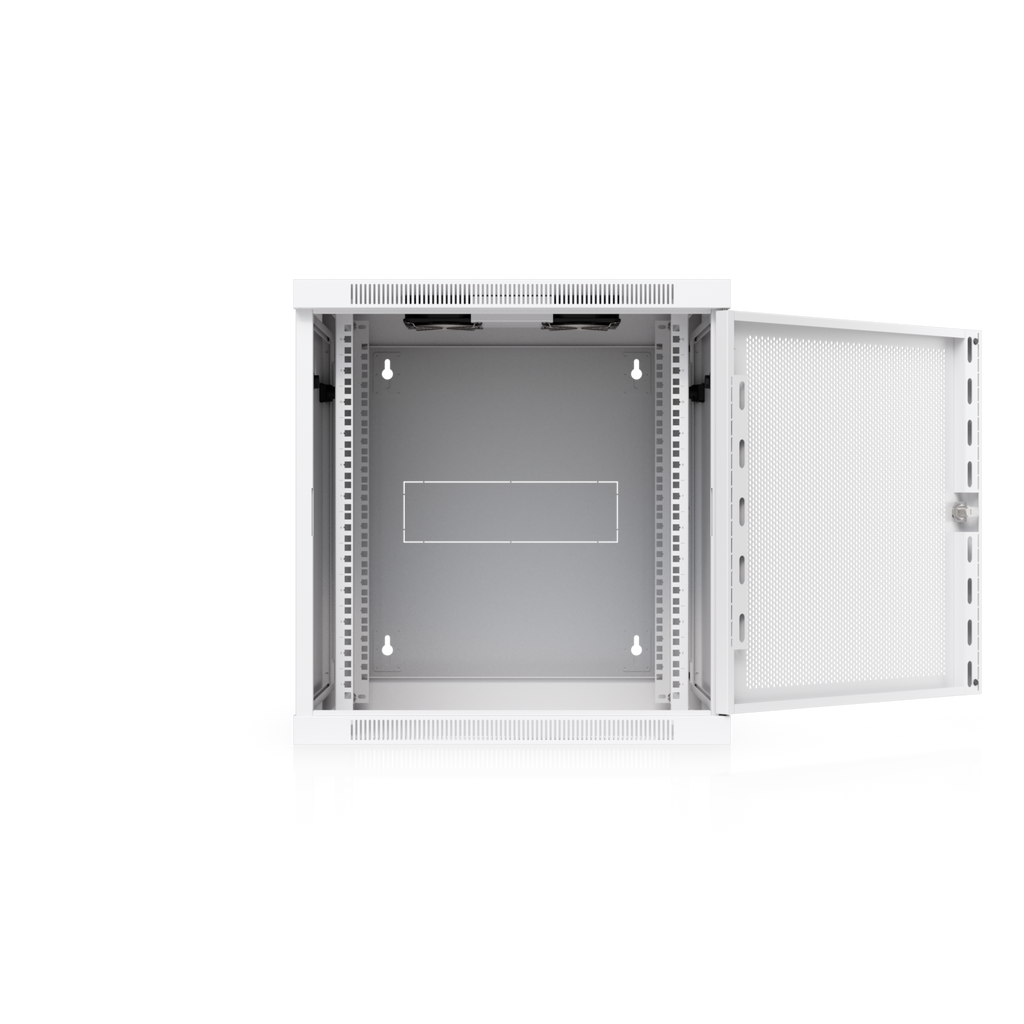

| Front Door | Perforated Default left-hand outswing, reversible |
| Rear Door | Solid Swing-out |
| Side Panels | (2) Solid, removable and lockable |
| Mounting | Wall mount |
| Acoustic Noise | ≤ 50 dB(A) sound pressure level Measured at 1 m in front of the enclosure, with cabinet empty (no installed equipment), under nominal fan operating conditions per ISO 7779 |
| Cable Entry Opening | (1) Rear wall: 350 x 100 mm (13.8 x 3.9") (2) Top: 235 x 62 mm (9.3 x 2.4") (4) Top knockout: 35 mm (1.4") (1) Bottom: 235 x 62 mm (9.3 x 2.4") (4) Bottom knockout: 35 mm (1.4") |
| Security | (1) Front door lock (1) Swing out door lock (4) Side panel locks (2) Keys |
| Standard | CE; EIA/ECA-310-E; RoHS |
