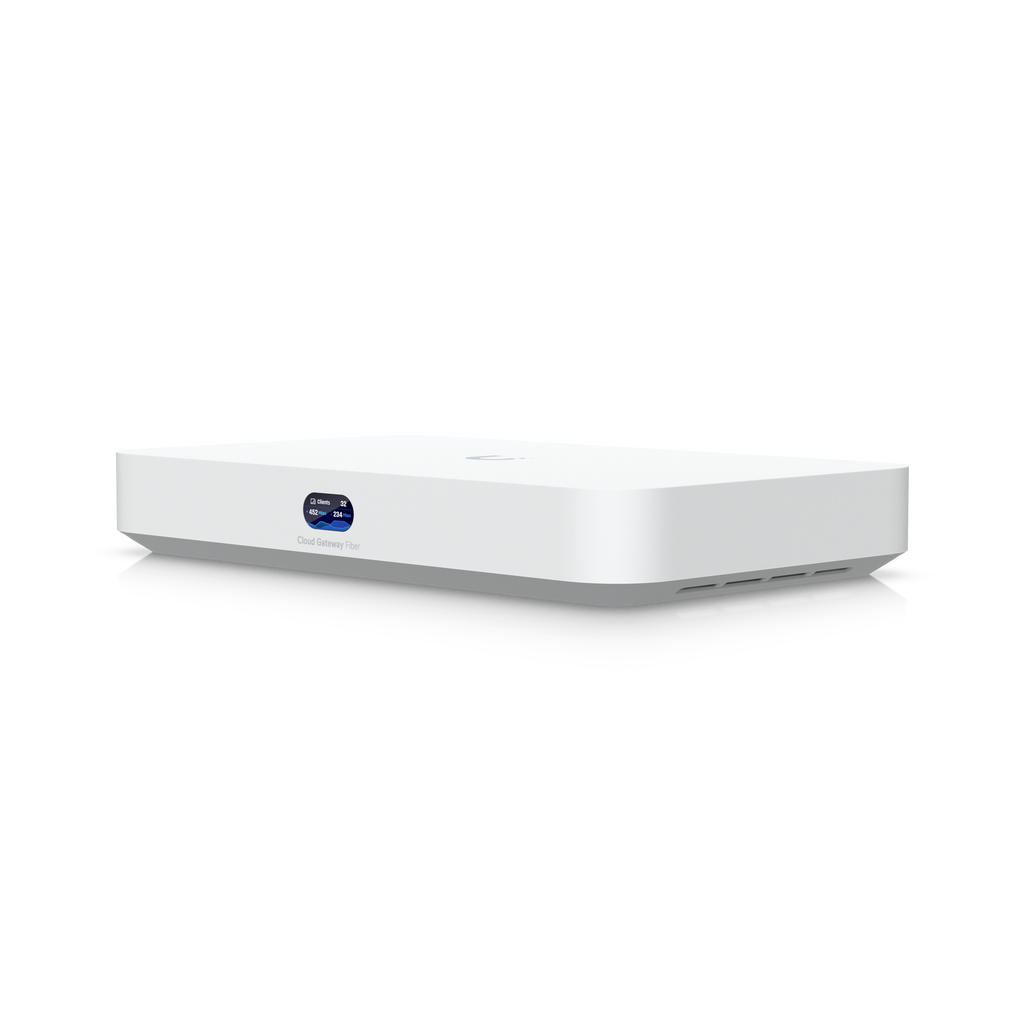

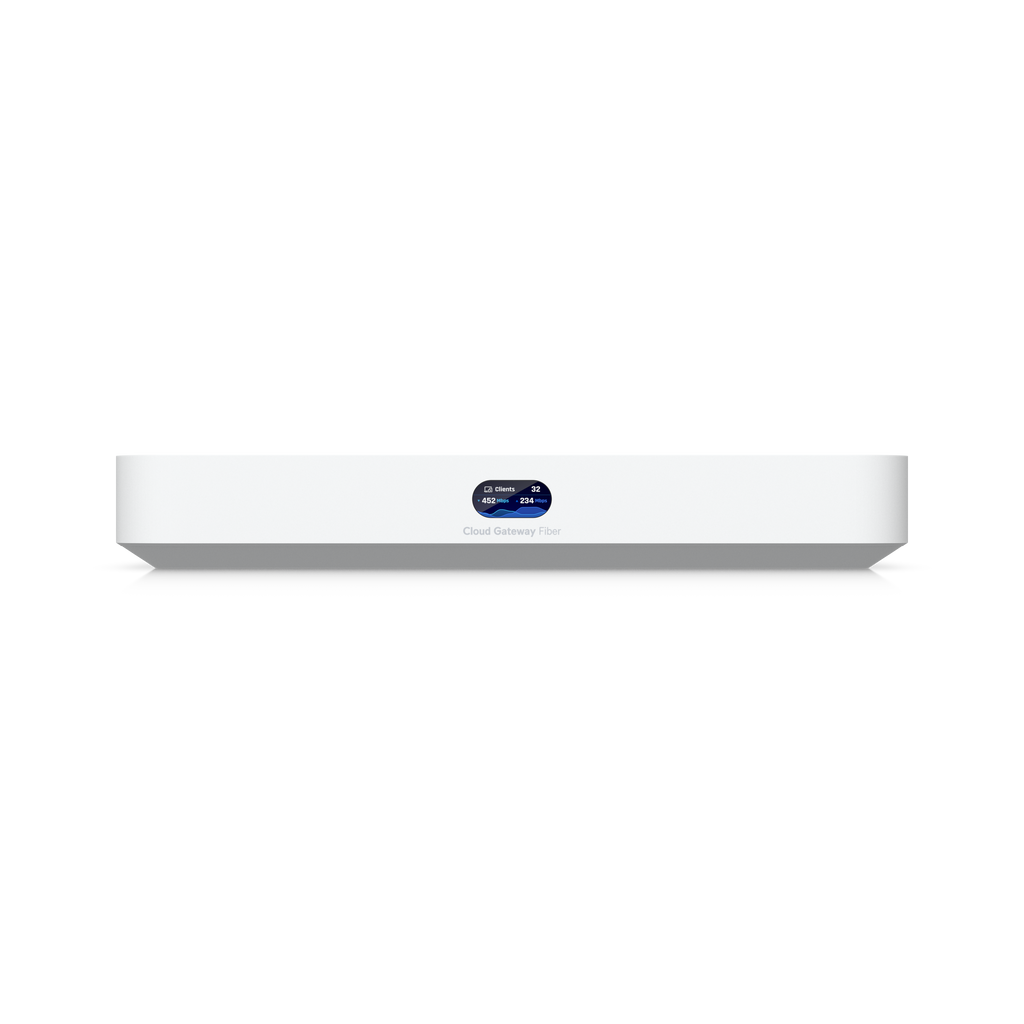

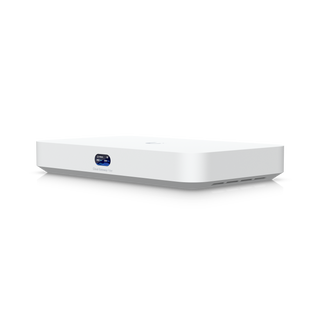

Cloud Gateway Fiber
UCG-Fiber
Desktop 10G Cloud Gateway with integrated 4-port 2.5 GbE switch, selectable NVR storage, and full UniFi application support.Key features Includes full UniFi application suite for device management Manages 50+ UniFi...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Desktop 10G Cloud Gateway with integrated 4-port 2.5 GbE switch, selectable NVR storage, and full UniFi application support.
Key features
Includes full UniFi application suite for device management
Manages 50+ UniFi devices and 500+ clients
5 Gbps routing with IDS/IPS
(1) 10G SFP+ and (1) 10 GbE RJ45 WAN port
(1) 10G SFP+ LAN port
Integrated 4-port switch with (1) PoE+ port
NVMe SSD storage slot*
*NVMe SSD not included. Third-party SSD installation requires tray accessory.
Specifications
Overview
| Dimensions | 212.8 x 127.6 x 30 mm (8.4 x 5 x 1.2") |
| Managed UniFi Devices | 50+ |
| Managed Cameras | (15) HD (8) 2K (5) 4K |
| Managed Access Hubs | 50 |
| Simultaneous Users Connected | 500+ |
| Max. WAN Port Count | 6 |
| Default WAN Ports | (1) 10G SFP+ (1) 10 GbE RJ45 |
| 2.5 GbE RJ45 | 4 (2.5G/1G/100M/10M) |
| 10 GbE RJ45 | 1 (10G/2.5G/1G) |
| 10G SFP+ | 2 (10G/1G) |
| IDS/IPS Throughput | 5 Gbps |
| Form Factor | Compact desktop |
Security
| IDS/IPS Signatures | 55,000+ with CyberSecure |
Networking
| MAC Address Table Size | 4,000 |
Hardware
| NVR Storage | Selectable NVMe SSD up to 2 TB No Storage option does not include NVMe SSD. Third-party SSD installation requires a tray accessory. 1/2 TB option includes tray accessory and NVMe SSD. |
| PoE Budget | 30W |
| Voltage Range PoE Mode | 50-57V |
| Max. Power Consumption | 29.4W (Excluding PoE output) |
| Power Method | DC jack (54V DC/1.1A) |
| Power Supply | 54V DC/1.1A (Adapter included) |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 100 BTU/hr (Excluding PoE Output) |
| Processor | Quad-core ARM® Cortex®-A73 at 2.2 GHz |
| System Memory | 3 GB |
| Weight | Without SSD: 675 g (1.5 lb) With SSD: 734 g (1.6 lb) |
| Enclosure Material | Polycarbonate |
| LCM Display | 0.96" status display |
| Management | Ethernet Bluetooth |
| Button | (1) Factory reset |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, SRRC, Anatel: 04395-25-08356 |
