Dream Machine Pro
UDM-Pro · US Version
10G Cloud Gateway with 100+ UniFi device / 1,000+ client support and 3.5 Gbps IPS routing.Key features Includes full UniFi application suite for device management 3.5+ Gbps routing with IDS/IPS...

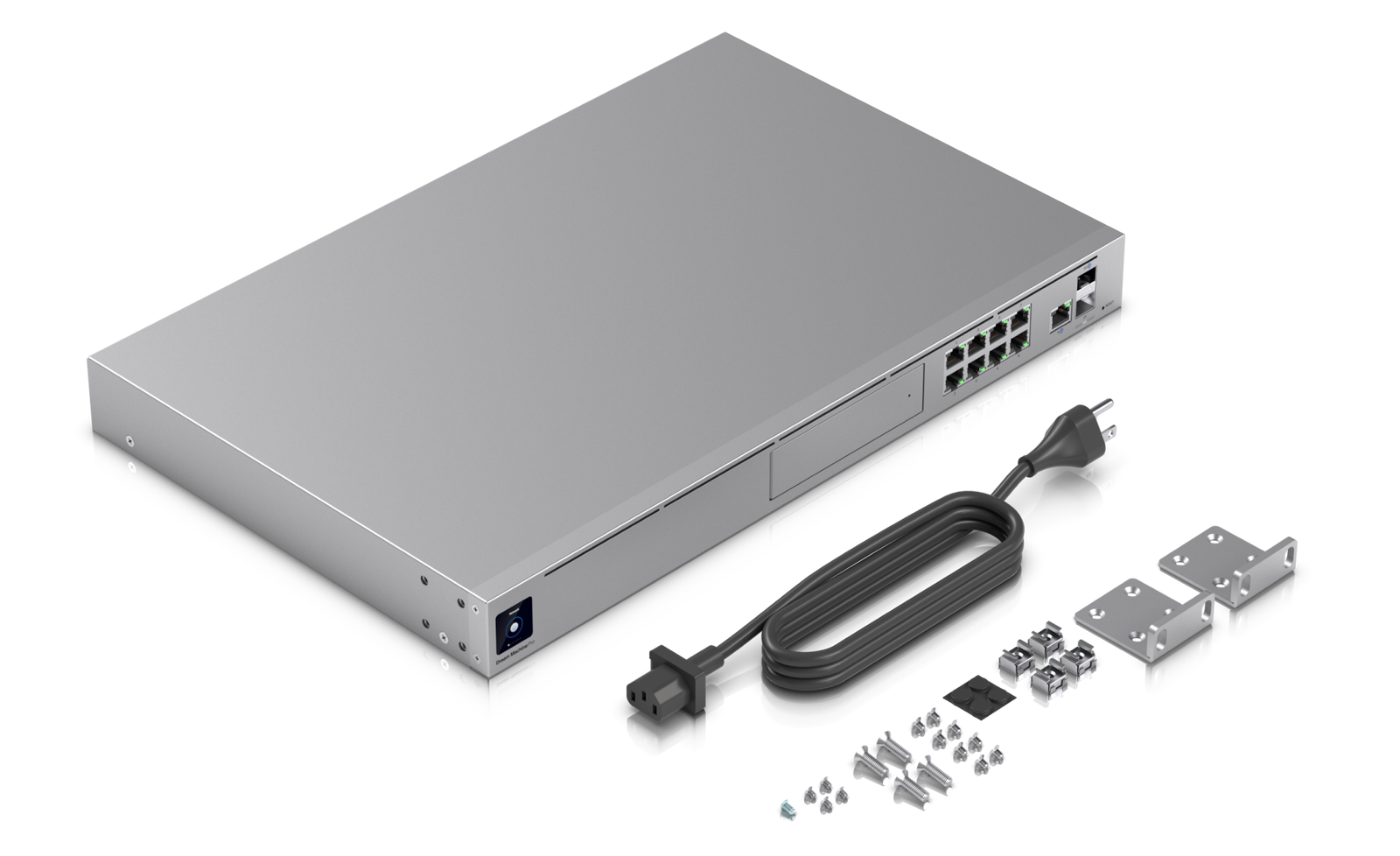

Or build it into a bundle — save up to 6% ↓What’s in the box
Everything that ships with your Dream Machine Pro — straight from the manufacturer.
What it is, and who it is for.
Ready for the floor — the gear that runs a real business all day, every day.
How it compares
The honest cross-shop against the real alternatives — same job, no recurring license fees.
| Dream Machine ProUniFi · $475.00 | TP-Link Omada ER8411~$400 | Firewalla Gold Pro~$489 | |
|---|---|---|---|
| Recurring license | None | None | None |
| Management | UniFi OS — self-host or cloud, free | Omada controller | Mobile app |
| Ecosystem | Full UniFi stack — network + Protect + Access | Omada network only | Firewall + parental only |
| Vendor | Ubiquiti, US-based | TP-Link | Firewalla, US-based |
Same job, no subscription, and it feeds the same console as your cameras and switches. See the full comparison →
Buy your Dream Machine Pro here and a US-based team stands behind it — pre-sales design, setup guidance, and RMA help when you need it. Not a forum thread you hope someone answers. A real Giant in your corner.
Get a hand with your build →What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
10G Cloud Gateway with 100+ UniFi device / 1,000+ client support and 3.5 Gbps IPS routing.
Key features
Includes full UniFi application suite for device management
3.5+ Gbps routing with IDS/IPS
(1) 10G SFP+*, (8) GbE RJ45 LAN ports
(1) 10G SFP+*, (1) GbE RJ45 WAN ports
3.5" NVR HDD bay
UniFi Power Backup ready
1.3" touchscreen
*Pair with an official SFP+ Module or SFP+ to RJ45 Adapter for the best experience.
Specifications
Overview
| Dimensions | 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2") |
| Managed UniFi Devices | 100+ |
| Managed Cameras | (24) HD (14) 2K (8) 4K |
| Managed Access Hubs | 150 |
| Simultaneous Users Connected | 1,000+ |
| Max. WAN Port Count | 8 |
| Default WAN Ports | (1) 10G SFP+ (1) GbE RJ45 |
| 1 GbE RJ45 | 9 (1G/100M/10M) |
| 10G SFP+ | 2 (10G/1G) |
| IDS/IPS Throughput | 3.5 Gbps |
| Form Factor | Rack mount (1U) |
| Redundancy | Shadow Mode (VRRP) Gateway Failover DC Power Backup Enable DC power backup using UniFi RPS |
Security
| IDS/IPS Signatures | 55,000+ with CyberSecure |
Networking
| MAC Address Table Size | 4,000 |
Hardware
| NVR Storage | (1) 3.5" NVR HDD bay |
| Max. Power Consumption | 33W |
| Power Method | (1) Universal AC input, 100–240V AC, 50/60 Hz (1) USP-RPS DC input |
| Power Supply | AC/DC, internal, 50W |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 112 BTU/hr |
| Processor | Quad-core ARM® Cortex®-A57 at 1.7 GHz |
| System Memory | 4 GB |
| On-board Storage | 16 GB |
| Weight | 3.9 kg (8.6 lb) |
| Enclosure Material | Aluminium CNC, SGCC steel |
| Mount Material | SGCC steel |
| LCM Display | 1.3" touchscreen |
| Management | Ethernet Bluetooth |
| Button | (1) Factory reset |
| ESD/EMP Protection | Air: ± 15kV, contact: ± 8kV |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 01136-20-08356, SRRC |
Downloads & documents
Build around the Dream Machine Pro.
It's already in your kit below. Add a gateway and PoE and the discount starts working. Discount tiers climb with the bundle — the Giant fills as you build.
Type your address. We'll spec the building.
Square footage, floors, rooms, construction type — turned into an AP count, a switch size, and a gateway that fits. No guesswork, no overbuying.
Start typing your address — we pull the property's square footage and floors, then size the kit. Adjust anything before you build.
Enter an address and the plan appears here —
property facts first, then the kit.
Pick the right one, not the biggest one
The honest line-up from cloud gateways. Most buyers reading this page should buy the middle column.
Dream Router 7
Dream Machine Pro
Dream Machine Special EditionAsked before checkout
The questions our support inbox actually gets.
Does it ship the same day?+
Orders placed before 2 PM ET on a business day leave the same day from our bench in Altamonte Springs, FL. Tracking is emailed the moment the label prints.
What if it's the wrong size for my building?+
Return it. 30 days, no restocking fee, refund to the original payment method. Better: send us your floor plan first and we'll size the kit for free — half of all returns are sizing problems.
Who handles the warranty?+
We do. Everything carries the manufacturer's warranty and we run the claim for you — one email to us instead of a ticket queue overseas.
How does the bundle discount work?+
Add items to a kit in the bundle builder: 2+ items saves 5%, 3+ saves 8%, 4+ saves 12%, and 5+ saves 15% off the whole kit.
