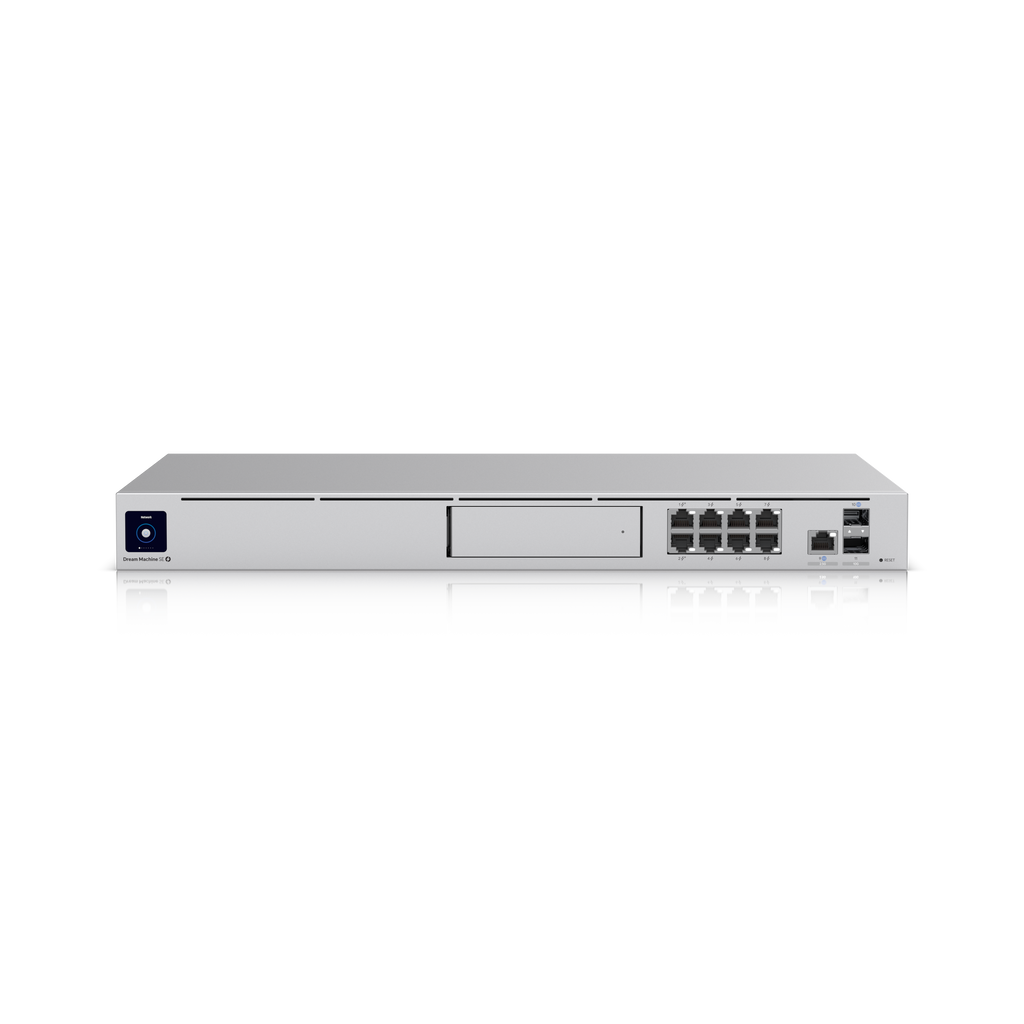

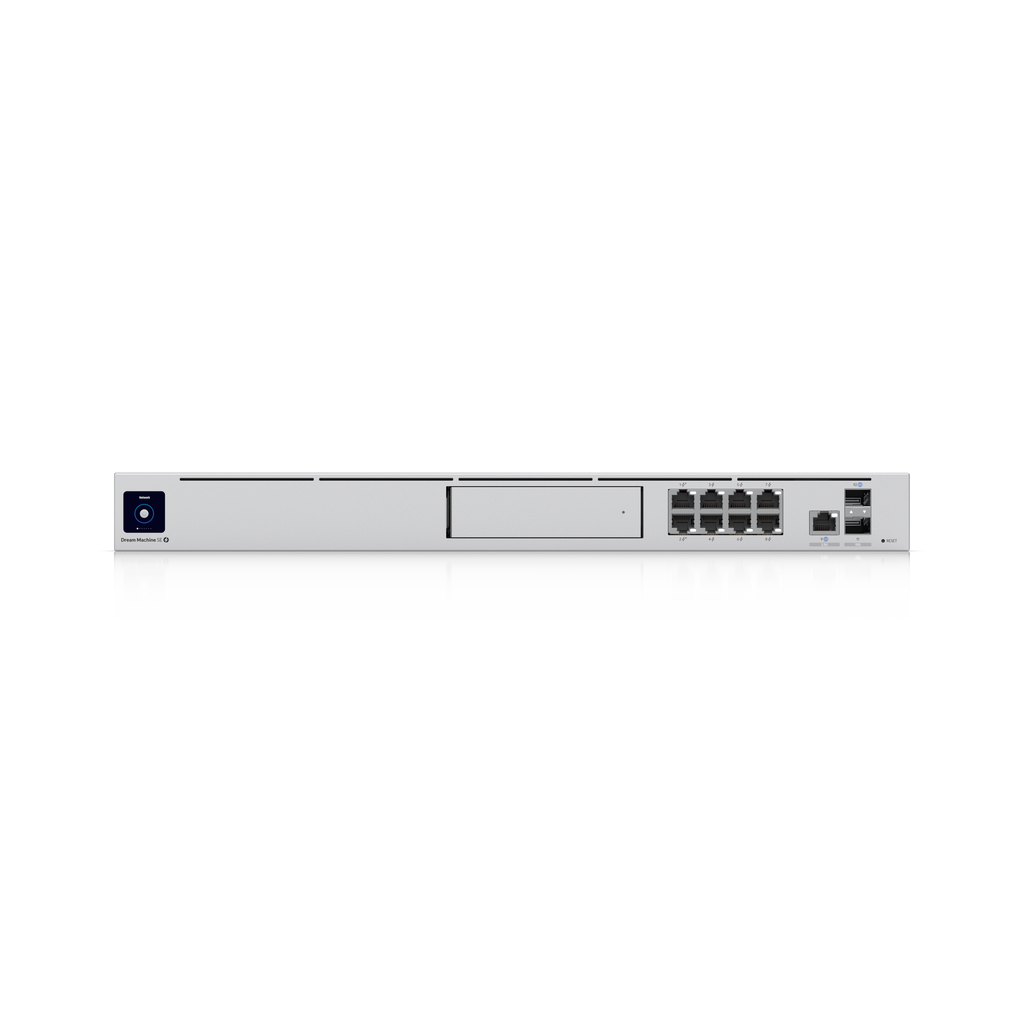

Dream Machine Special Edition
UDM-SE · US Version
10G Cloud Gateway with 100+ UniFi device / 1,000+ client support, 3.5 Gbps IPS routing, and built-in PoE switching.Key features Includes full UniFi application suite for device management 3.5+ Gbps...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
10G Cloud Gateway with 100+ UniFi device / 1,000+ client support, 3.5 Gbps IPS routing, and built-in PoE switching.
Key features
Includes full UniFi application suite for device management
3.5+ Gbps routing with IDS/IPS
(1) 10G SFP+*, (8) GbE RJ45 LAN ports including (2) PoE+, and (6) PoE
(1) 10G SFP+*, (1) 2.5 GbE RJ45 WAN ports
(1) 3.5" NVR HDD bay
Built-in 128 GB SSD for NVR detection recordings
UniFi Power Backup ready
1.3" touchscreen
*Pair with an official SFP+ Module or SFP+ to RJ45 Adapter for the best experience.
Specifications
Overview
| Dimensions | 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2") |
| Managed UniFi Devices | 100+ |
| Managed Cameras | (24) HD (14) 2K (8) 4K |
| Managed Access Hubs | 150 |
| Simultaneous Users Connected | 1,000+ |
| Max. WAN Port Count | 8 |
| Default WAN Ports | (1) 10G SFP+ (1) 2.5 GbE RJ45 |
| 1 GbE RJ45 | 8 (1G/100M/10M) |
| 2.5 GbE RJ45 | 1 (2.5G/1G/100M/10M) |
| 10G SFP+ | 2 (10G/1G) |
| IDS/IPS Throughput | 3.5 Gbps |
| Form Factor | Rack mount (1U) |
| Redundancy | Shadow Mode (VRRP) Gateway Failover DC Power Backup Enable DC power backup using UniFi RPS |
Security
| IDS/IPS Signatures | 55,000+ with CyberSecure |
Networking
| MAC Address Table Size | 4,000 |
Hardware
| NVR Storage | (1) 3.5" NVR HDD bay Built-in 128 GB SSD for Faster Experience |
| PoE Budget | 180W |
| PoE | 15.4W |
| PoE+ | 30W |
| Voltage Range PoE Mode | PoE: 44-57V PoE+: 50-57V |
| Max. Power Consumption | 50W (Excluding PoE Output) |
| Power Method | (1) Universal AC input, 100–240V AC, 4.4A Max., 50/60 Hz (1) USP-RPS DC input, 52V DC, 3.94A |
| Power Supply | AC/DC, internal, 240W |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 170 BTU/hr (Excluding PoE Output) |
| Processor | Quad-core ARM® Cortex®-A57 at 1.7 GHz |
| System Memory | 4 GB |
| On-board Storage | 16 GB eMMC 128 GB SSD (Integrated) |
| Weight | 5 kg (10.9 lb) |
| Enclosure Material | Aluminium CNC, SGCC steel |
| Mount Material | SGCC steel |
| LCM Display | 1.3" touchscreen |
| Management | Ethernet Bluetooth |
| Button | (1) Factory reset |
| ESD/EMP Protection | Air: ± 15kV, contact: ± 8kV |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 07309-22-08356, SRRC |
Downloads & documents
Build around the Dream Machine Special Edition.
It's already in your kit below. Add a gateway and PoE and the discount starts working. Discount tiers climb with the bundle — the bars fill as you build.
Type your address. We'll spec the building.
Square footage, floors, rooms, construction type — turned into an AP count, a switch size, and a gateway that fits. No guesswork, no overbuying.
Four quick questions size the kit. Property-records autofill is in the build phase.
Enter an address and the plan appears here —
property facts first, then the kit.
Pick the right one, not the biggest one
The honest line-up from cloud gateways. Most buyers reading this page should buy the middle column.
Dream Router 5G Max
Dream Machine Special Edition

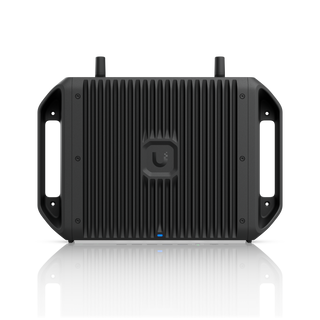

Cloud Gateway IndustrialAsked before checkout
