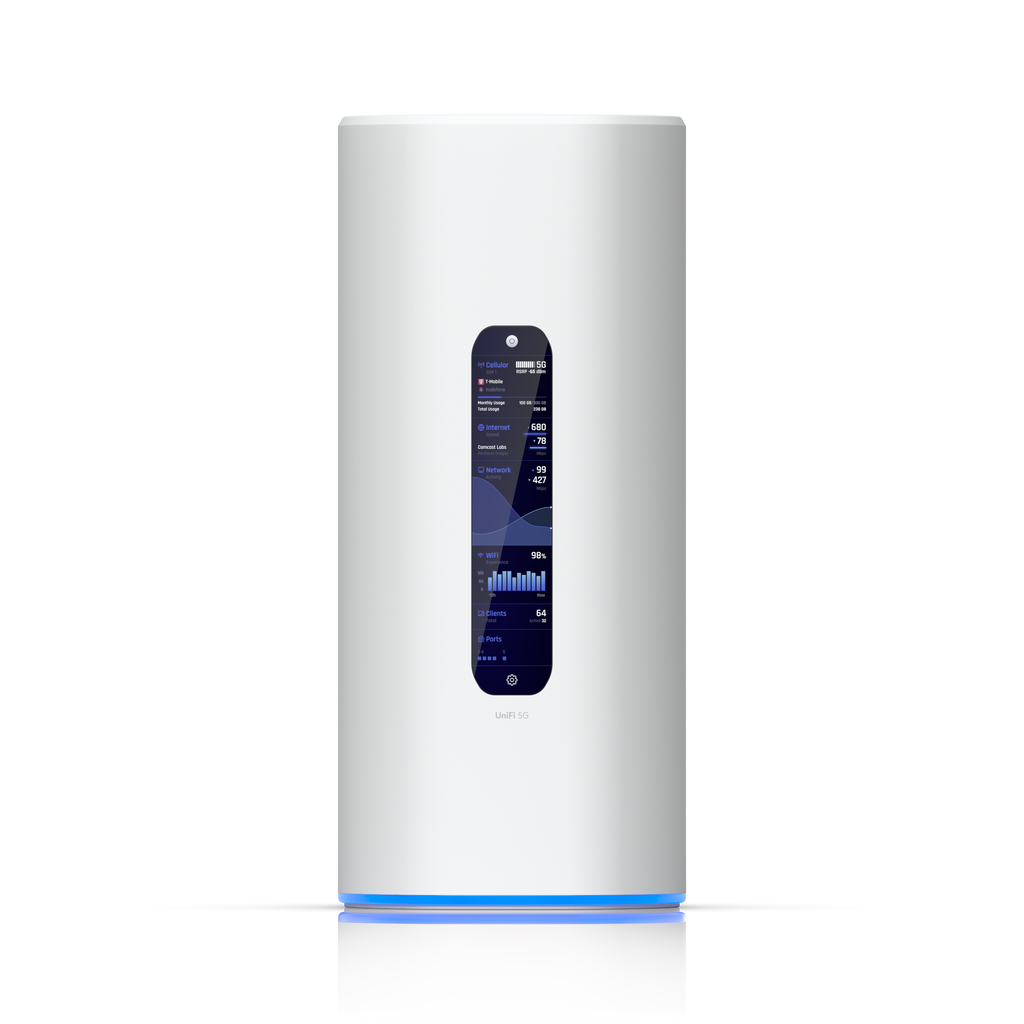

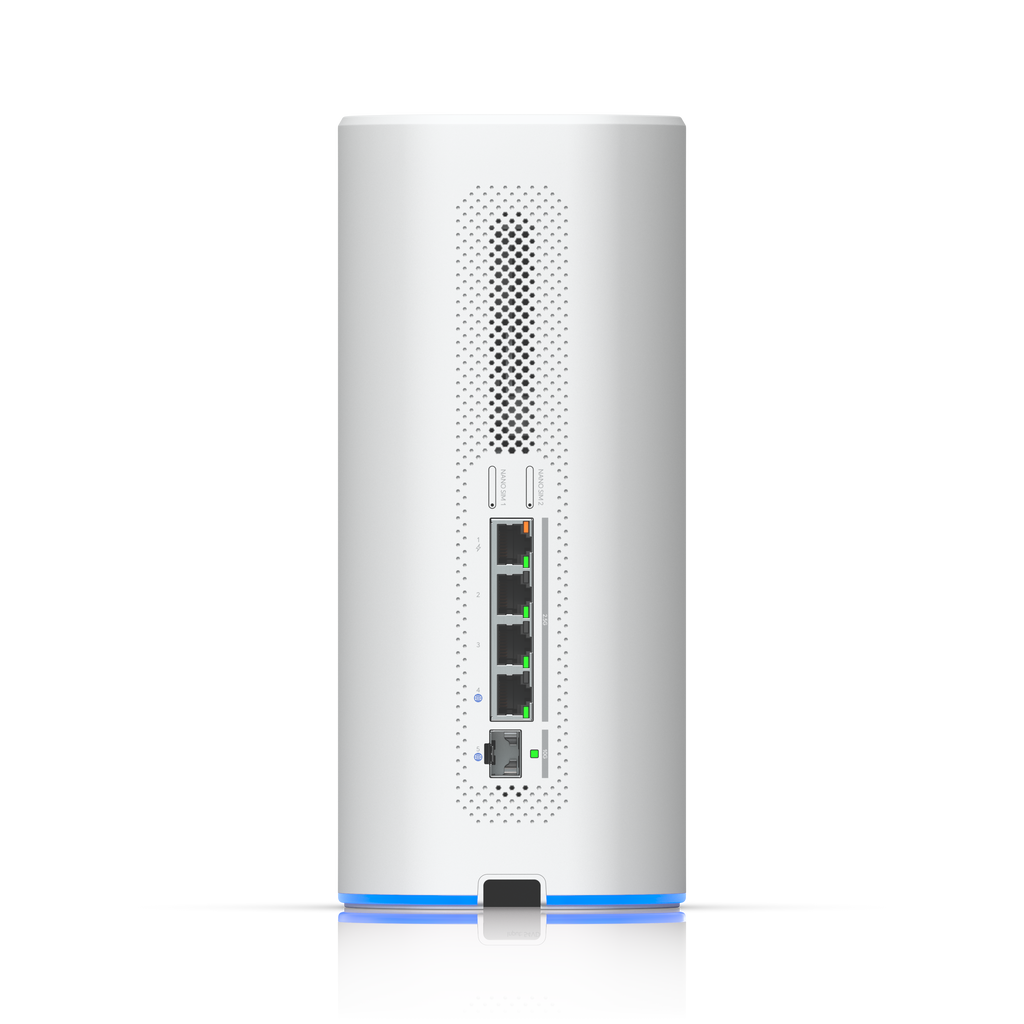

Dream Router 5G Max
UDR-5G-Max-US
Desktop Cloud Gateway with full-performance 5G up to 3.4 Gbps, WiFi 7, 10G SFP+, 4-port 2.5 GbE switch with (1) PoE port, and SD card storage. Certified with AT&T and...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Desktop Cloud Gateway with full-performance 5G up to 3.4 Gbps, WiFi 7, 10G SFP+, 4-port 2.5 GbE switch with (1) PoE port, and SD card storage. Certified with AT&T and T-Mobile* (Verizon** coming soon).
*T-Mobile Home Internet SIMs aren't supported. Data-only plan required.
**Verizon is not supported at this time. Direct SIM/eSIM activation is expected in a future update.
Specifications
Overview
| Dimensions | 110 x 110 x 250 mm (4.3 x 4.3 x 9.8") |
| Managed UniFi Devices | 30+ |
| Managed Cameras | (5) HD (2) 2K (1) 4K |
| Simultaneous Users Connected | 300+ |
| Max. WAN Port Count | 4 |
| Default WAN Ports | (1) 10G SFP+ (1) 2.5 GbE RJ45 |
| 2.5 GbE RJ45 | 4 (1 PoE) (2.5G/1G/100M) |
| 10G SFP+ | 1 (10G/1G) |
| IDS/IPS Throughput | 2.3 Gbps |
| Form Factor | Desktop |
| Coverage Area | 160 m² (1,750 ft²) |
Security
| IDS/IPS Signatures | 20,000+ with CyberSecure |
VPN & SD-WAN
| Site Magic | 20 |
| WireGuard | 8 |
| OpenVPN | 8 |
Networking
| MAC Address Table Size | 2,000 |
Integrated WiFi
| WiFi Standard | 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7) |
| 6 GHz | 5.7 Gbps |
| 5 GHz | 4.3 Gbps |
| 2.4 GHz | 688 Mbps |
| 6 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 6 GHz | 8 dBi |
| 5 GHz | 5 dBi |
| 2.4 GHz | 4 dBi |
| 6 GHz | 22 dBm |
| 5 GHz | 26 dBm |
| 2.4 GHz | 23 dBm |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| Max. BSSIDs | 4 per Radio |
| 802.11be (WiFi 7) | 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
| 802.11ax (WiFi 6/6E) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15 , HT 20/40) |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
Cellular
| Category | 5G NR Sub-6 |
| Frequency Bands | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 |
| Max. TX Power | HPUE power class 2: 26 dBm |
| Frequency Bands | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B18, B19, B20, B21, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71 |
| Max. TX Power | HPUE power class 2: 25 dBm |
| Frequency Bands | B1, B2, B4, B5, B8, B19 |
| 5G NSA | Downlink 3.4 Gbps Uplink 560 Mbps Speed depends on network coverage and performance at the device location |
| 5G SA | Downlink 1.8 Gbps Uplink 650 Mbps |
| 4G LTE | Downlink 1.6 Gbps Uplink 210 Mbps |
| Antenna Gain | 617-960 MHz: 3 dBi 1710-2700 MHz: 7 dBi 3300-5000 MHz: 8 dBi 5150~5925 MHz: 8 dBi |
| SIM | (2) Nano SIM (1) Nano-SIM or eSIM Nano-SIM 2 cannot be used when an eSIM is active |
Hardware
| NVR Storage | Pre-installed 64 GB microSD for NVR |
| Expansion Slot | MicroSD Card 64 GB pre-installed microSD |
| PoE Budget | 15.4W |
| PoE | 15.4W |
| Voltage Range PoE Mode | 44–57V |
| Max. Power Consumption | 34.5W (Excluding PoE output) |
| Power Method | DC jack (54V DC/1.1A) |
| Power Supply | 54V DC/1.1A (Adapter included) |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 115 BTU/hr (Excluding PoE output) |
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| System Memory | 3 GB |
| Weight | 1.4 kg (3.1 lb) |
| Enclosure Material | Polycarbonate |
| LCM Display | 4.7" touchscreen |
| Management | Ethernet Bluetooth |
| Button | (1) Factory reset |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE, GCF, PTCRB, AT&T, T-Mobile, Wi-Fi Alliance® |
Software
| Mobile App | UniFi iOS™: Version 10.33.0 and later UniFi Android™: Version 10.36.1 and later |
Downloads & documents
Build around the Dream Router 5G Max.
It's already in your kit below. Add a gateway and PoE and the discount starts working. Discount tiers climb with the bundle — the bars fill as you build.
Type your address. We'll spec the building.
Square footage, floors, rooms, construction type — turned into an AP count, a switch size, and a gateway that fits. No guesswork, no overbuying.
Four quick questions size the kit. Property-records autofill is in the build phase.
Enter an address and the plan appears here —
property facts first, then the kit.
Pick the right one, not the biggest one
The honest line-up from cloud gateways. Most buyers reading this page should buy the middle column.
Dream Machine Special Edition
Dream Router 5G Max
Cloud Gateway IndustrialAsked before checkout
The questions our support inbox actually gets.
Does it ship the same day?+
Orders placed before 2 PM ET on a business day leave the same day from our bench in Altamonte Springs, FL. Tracking is emailed the moment the label prints.
What if it's the wrong size for my building?+
Return it. 30 days, no restocking fee, refund to the original payment method. Better: send us your floor plan first and we'll size the kit for free — half of all returns are sizing problems.
Who handles the warranty?+
We do. Everything carries the manufacturer's warranty and we run the claim for you — one email to us instead of a ticket queue overseas.
How does the bundle discount work?+
Add items to a kit in the bundle builder: 2+ items saves 5%, 3+ saves 8%, 4+ saves 12%, and 5+ saves 15% off the whole kit.
