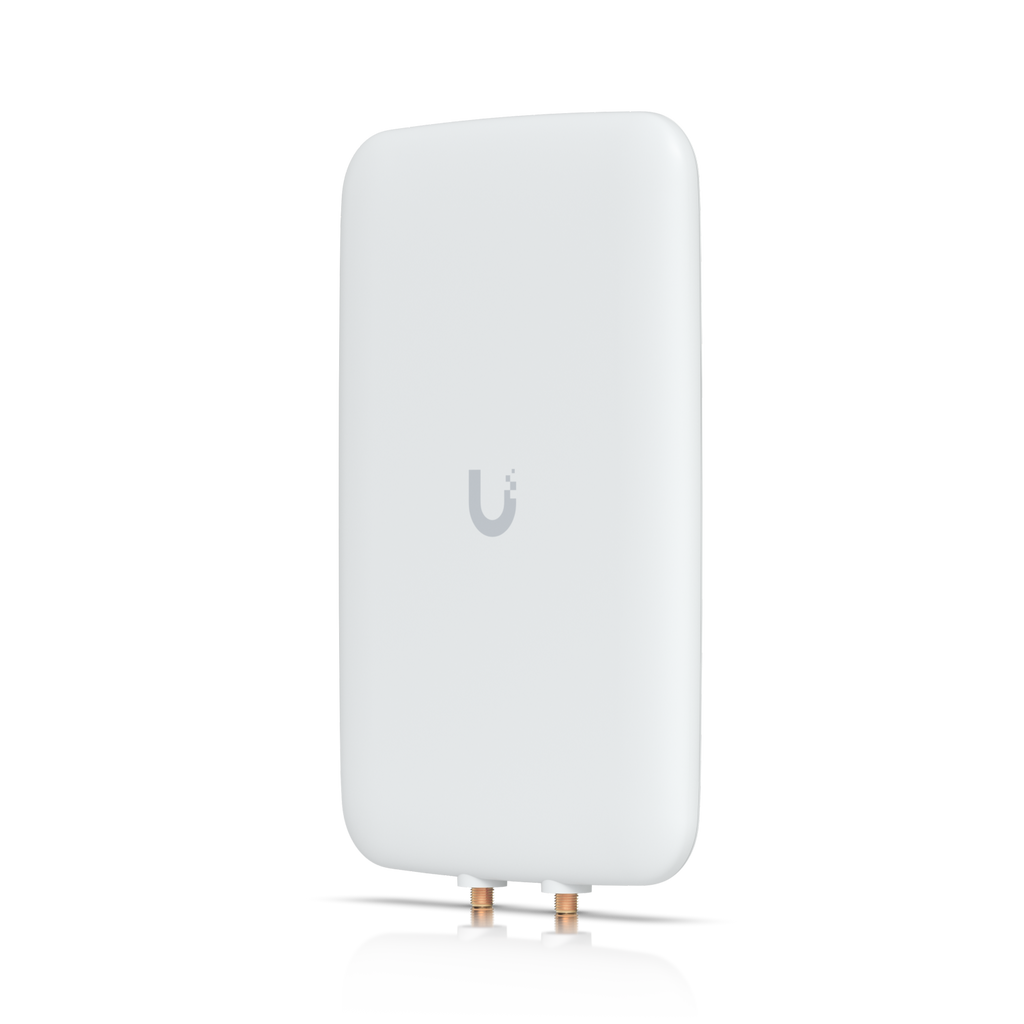

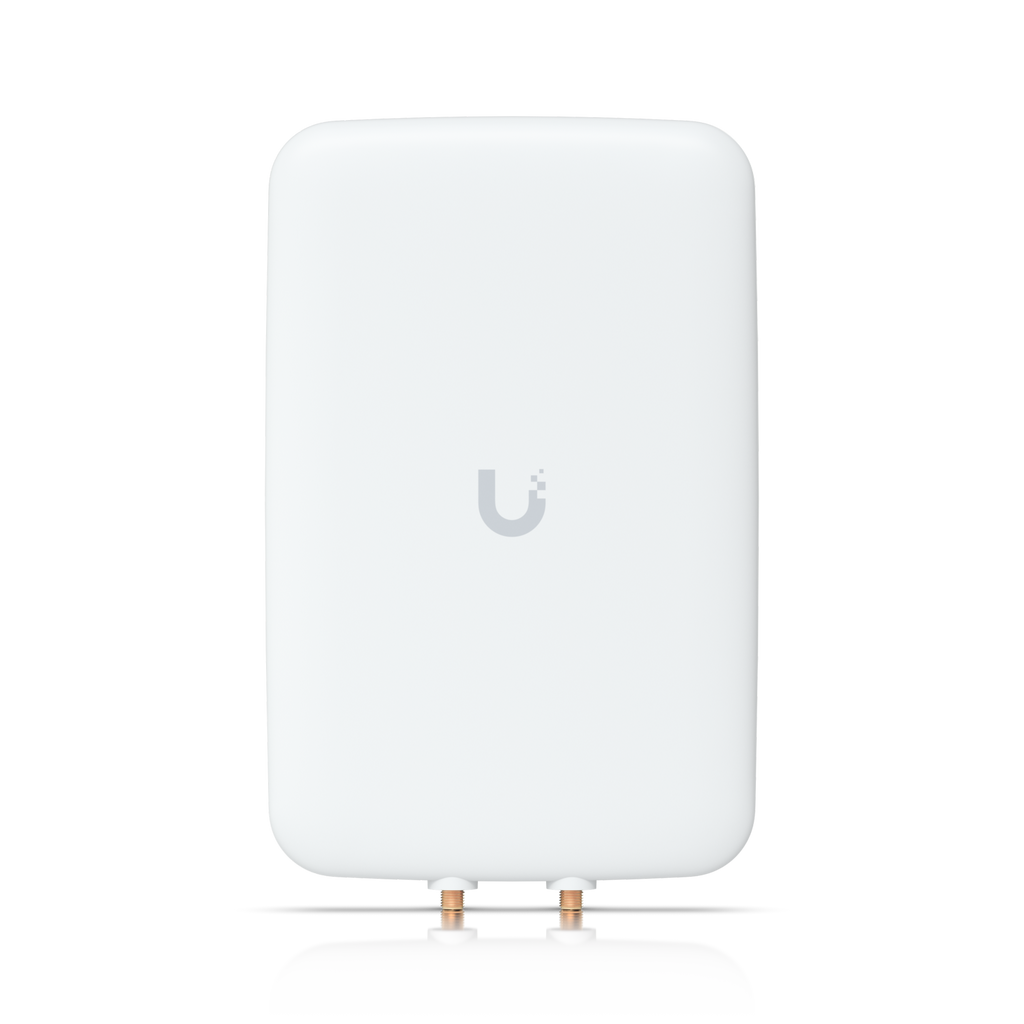

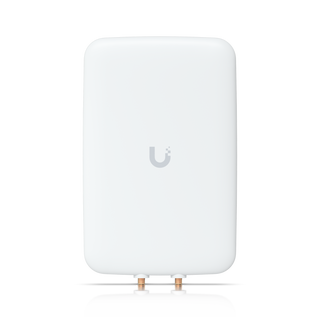

AC Mesh Dual-Band Antenna
UMA-D
An optional mesh antenna for AC Mesh.Key features Outdoor weather-resistant enclosure High-efficiency directional radiation pattern Dual-band, dual-polarity optimized for 802.11ac Ball joint 3-axis mount for precise aiming Wall and pole...
Or build it into a bundle — save up to 6% ↓What it is, and who it is for.
Built for the home — serious networking that disappears into the walls, no IT department required.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
An optional mesh antenna for AC Mesh.
Key features
Outdoor weather-resistant enclosure
High-efficiency directional radiation pattern
Dual-band, dual-polarity optimized for 802.11ac
Ball joint 3-axis mount for precise aiming
Wall and pole mount included
Specifications
Mechanical
| Dimensions | 201.3 x 128 x 32.5 mm (7.9 x 5 x 1.3") |
| Weight | Without mount: 400 g (0.9 lb) With mount: 480 g (1.1 lb) |
| Enclosure Material | Outdoor UV-stabilized plastic |
Hardware
| Supported Frequency Range | 2.4–2.5 GHz 5.1–5.9 GHz |
| RF Connections | (2) RP-SMA |
| 5 GHz | 15 dBi |
| 2.4 GHz | 10 dBi |
| 5 GHz | 45° |
| 2.4 GHz | 90° |
| 5 GHz | 45° |
| 2.4 GHz | 90° |
| 5 GHz | 45° |
| 2.4 GHz | 90° |
| Max VSWR | 2:1 |
| Polarization | Dual-linear |
| 5 GHz | 30 dB |
| 2.4 GHz | 25 dB |
| Certifications | Anatel: 06187-19-08356 |
