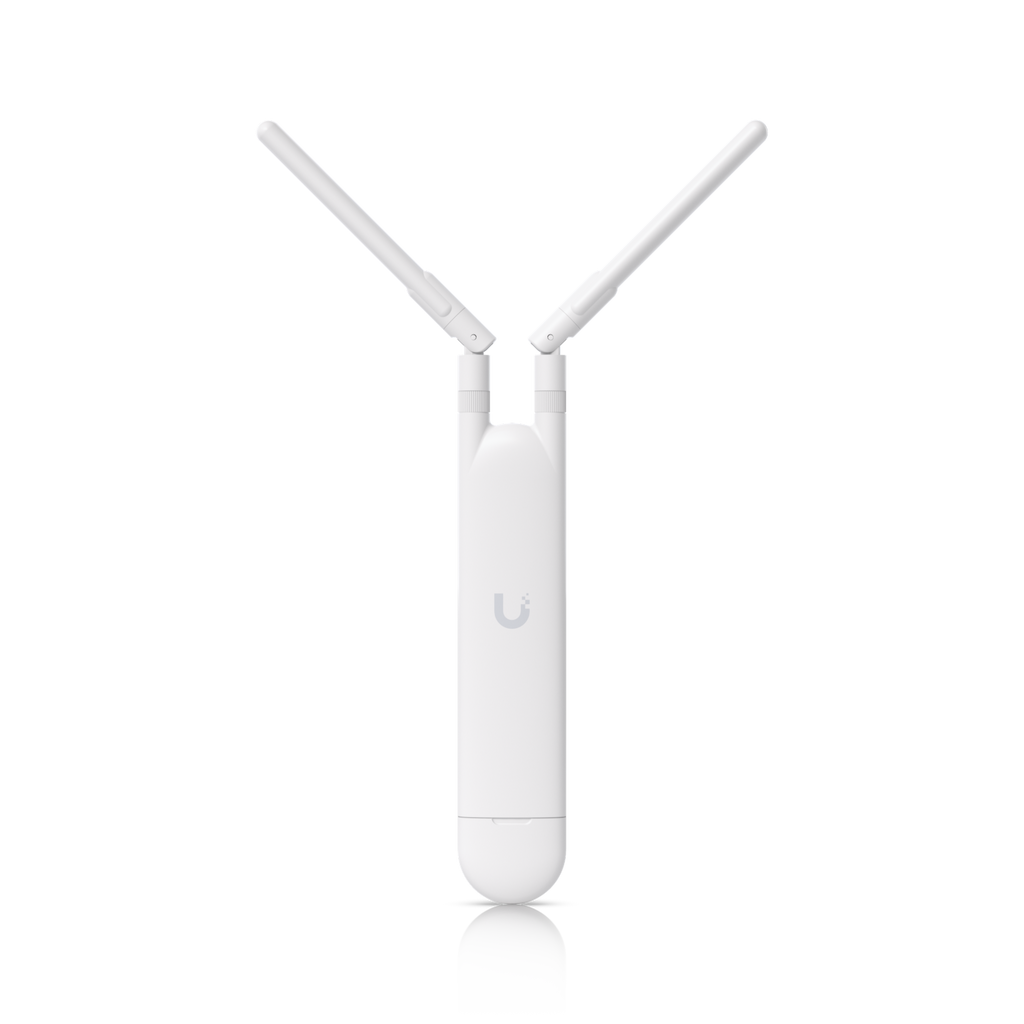

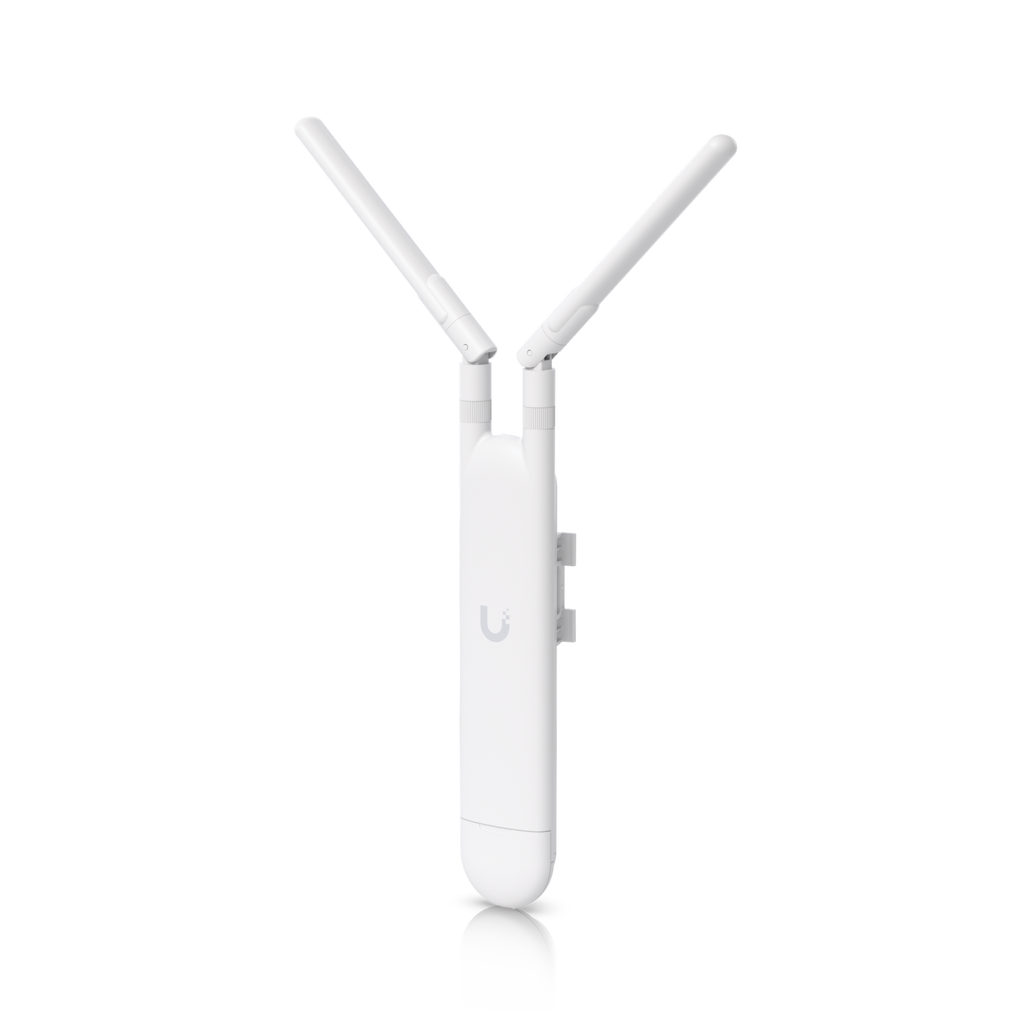

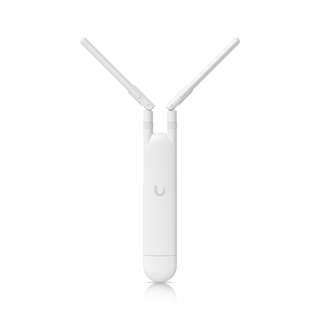

Access Point AC Mesh
UAP-AC-M-US · Single Unit
Compact, indoor/outdoor WiFi 5 AP with 4 spatial streams and optional external antenna support for directional coverage.Note. PoE power adapter included with single unit purchase.UMA-D external antenna accessory offers directional...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Compact, indoor/outdoor WiFi 5 AP with 4 spatial streams and optional external antenna support for directional coverage.

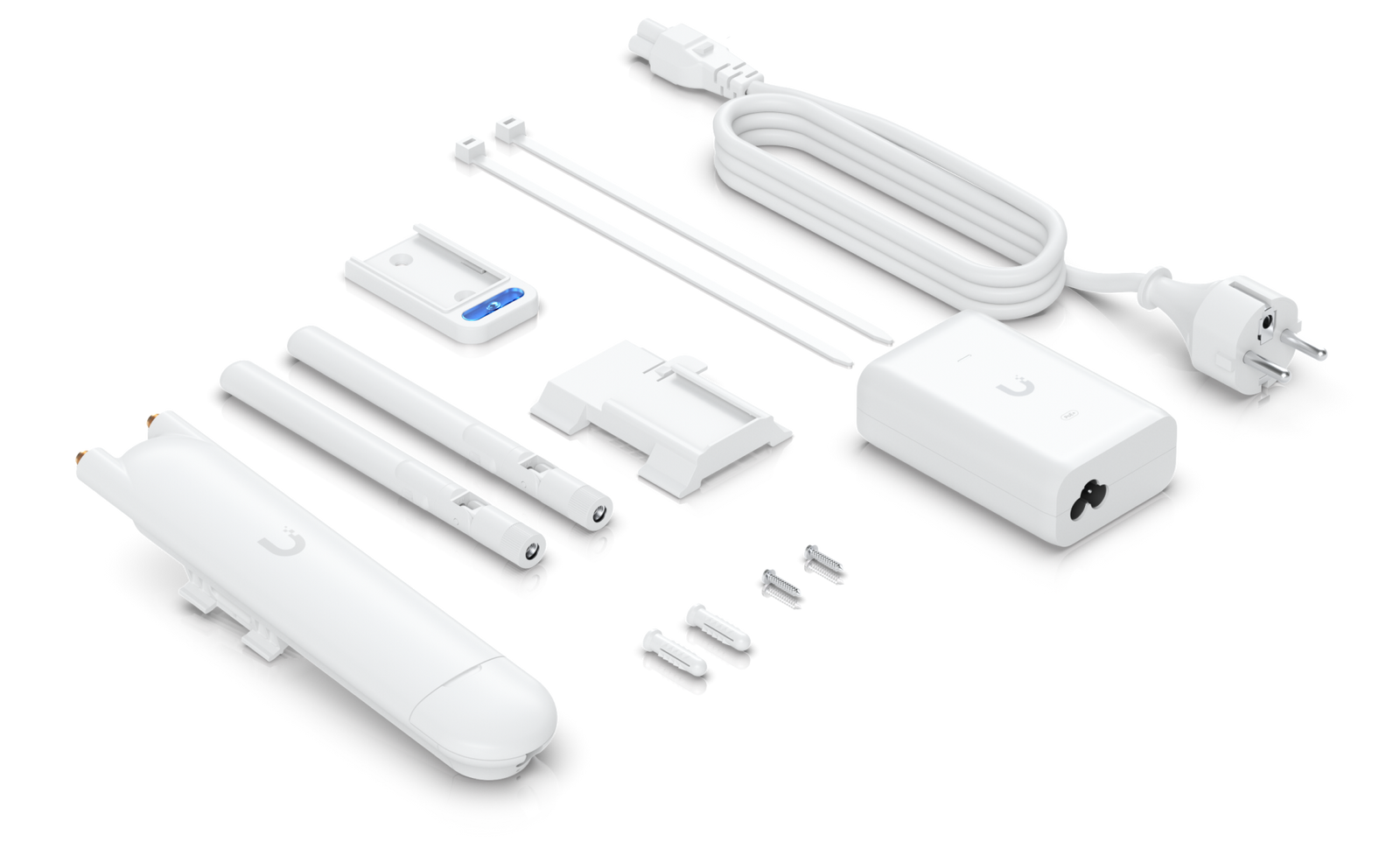

Note. PoE power adapter included with single unit purchase.
UMA-D external antenna accessory offers directional coverage.
Key features
WiFi 5
4 spatial streams
140 m² (1,500 ft²) coverage
200+ connected devices
Powered using PoE*
GbE uplink
Versatile wall and pole mounting
(2) RP-SMA connectors for optional external antennas**
Weatherproof (outdoor exposed)
*PoE power adapter included with single unit purchase.
**UMA-D external antenna accessory offers directional coverage.
Specifications
Overview
| Dimensions | 353 x 46 x 34.4 mm (13.9 x 1.8 x 1.4") |
| WiFi Standard | WiFi 5 |
| Spatial Streams | 4 |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Client Count | 200+ |
| Uplink | GbE |
| Mounting | Wall, Pole (Mounts Included) |
| Weatherproofing | IPX4 |
| Power Method | PoE Supports passive 24V (Pairs 4, 5+; 7, 8 return) |
Performance
| 5 GHz | 2 x 2 (DL MU-MIMO) |
| 2.4 GHz | 2 x 2 (DL MU-MIMO) |
| 5 GHz | 867 Mbps (BW80) |
| 2.4 GHz | 300 Mbps (BW40) |
| 5 GHz | 4 dBi |
| 2.4 GHz | 3 dBi |
| 5 GHz | 20 dBm |
| 2.4 GHz | 20 dBm |
| Max. BSSIDs | 8 per Radio |
| 802.11ac (WiFi 5) | 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
Hardware
| Max. Power Consumption | 8.5W |
| Supported Voltage Range | 44–57V DC |
| Networking Interface | (1) GbE RJ45 port |
| Weight | 152 g (5.4 oz) |
| Pole Mount Diameter | 1–3" (25–76 mm) |
| Management | Ethernet Bluetooth |
| Enclosure Material | Polycarbonate |
| Channel Bandwidth | HT 20/40, VHT 20/40/80 (MHz) |
| Certifications | CE, FCC, IC, UKCA, Anatel: 01769-18-08356 |
| Operating Frequency | US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5850 MHz For worldwide, it depends on the regulatory region |
| Ambient Operating Temperature | -30 to 70° C (-22 to 158° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
Software
| UniFi Network | Version 6.0.45 and later |
Downloads & documents
