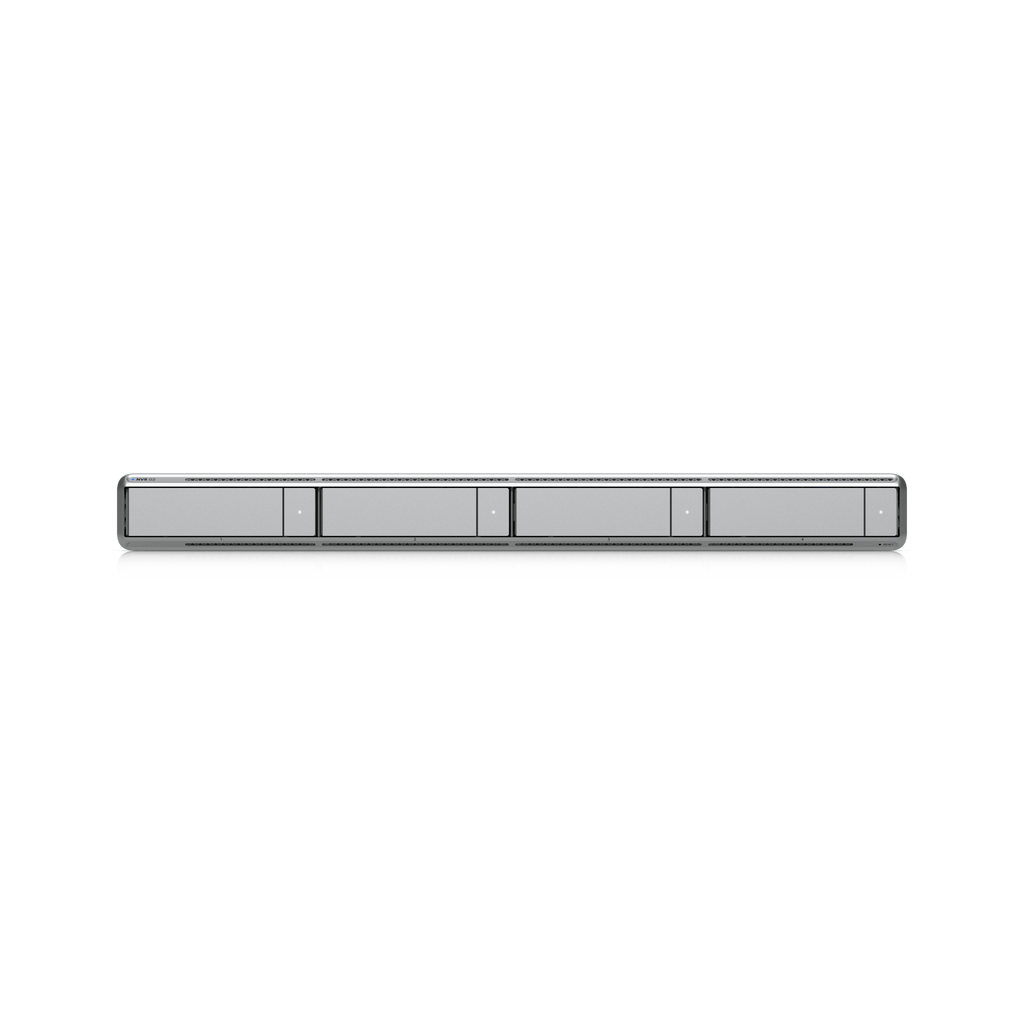

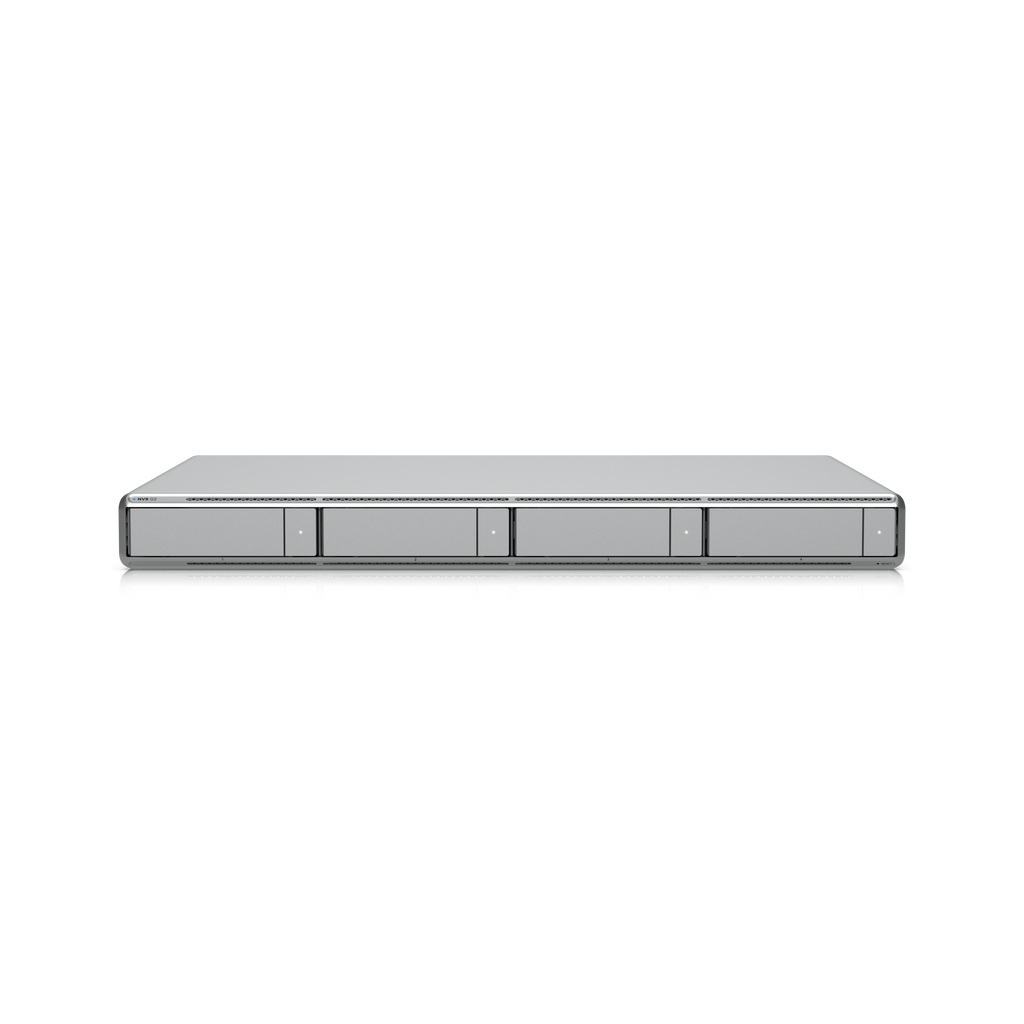

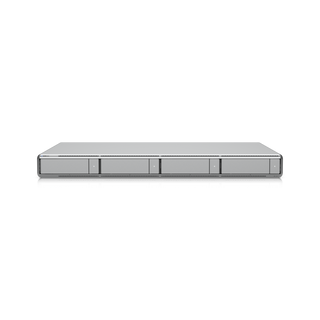

Network Video Recorder G2
UNVR-G2
1U UniFi Protect NVR with built-in AI event analytics, HDMI output, four 2.5”/3.5” HDD bays, and support for up to (30) 4K or (60) Full HD cameras.SpecificationsOverview Dimensions 442.4 x...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
1U UniFi Protect NVR with built-in AI event analytics, HDMI output, four 2.5”/3.5” HDD bays, and support for up to (30) 4K or (60) Full HD cameras.
Specifications
Overview
| Dimensions | 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8") |
| Managed Cameras | (60) HD (50) 2K (30) 4K Using the built-in HDMI Viewport (40) HD (30) 2K (20) 4K |
| Managed Access Hubs | 150+ |
| Storage Capacity | (4) 2.5/3.5" drive bays |
| Networking Interface | (1) 10G SFP+ port (1) 2.5 GbE RJ45 port |
| Form Factor | Rack Mount (1U) |
| Management Application | UniFi Protect UniFi Access UniFi Connect |
Hardware
| Hard Drive Capacity | (4) 2.5/3.5" HDD / SSD support |
| Max. Power Budget for Drives | 75W |
| Max. Power Consumption | 100W |
| Power Method | (1) Universal AC input, 100–240V AC, 2A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC |
| Power Supply | AC/DC, Internal PSU, 100W |
| Processor | Qualcomm® Kryo™ CPU built on Arm® Cortex® technology (4 nm) (1) Prime core (3.2 GHz) (4) Performance cores (2.8 GHz) (3) Efficiency cores (2.0 GHz) |
| Memory | 8 GB |
| Management | Ethernet Bluetooth |
| Weight | 6 kg (13.2 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
Software
| UniFi Protect | Version 7.1.55 or later. |
| UniFi Access | Version 4.2.16 or later. |
