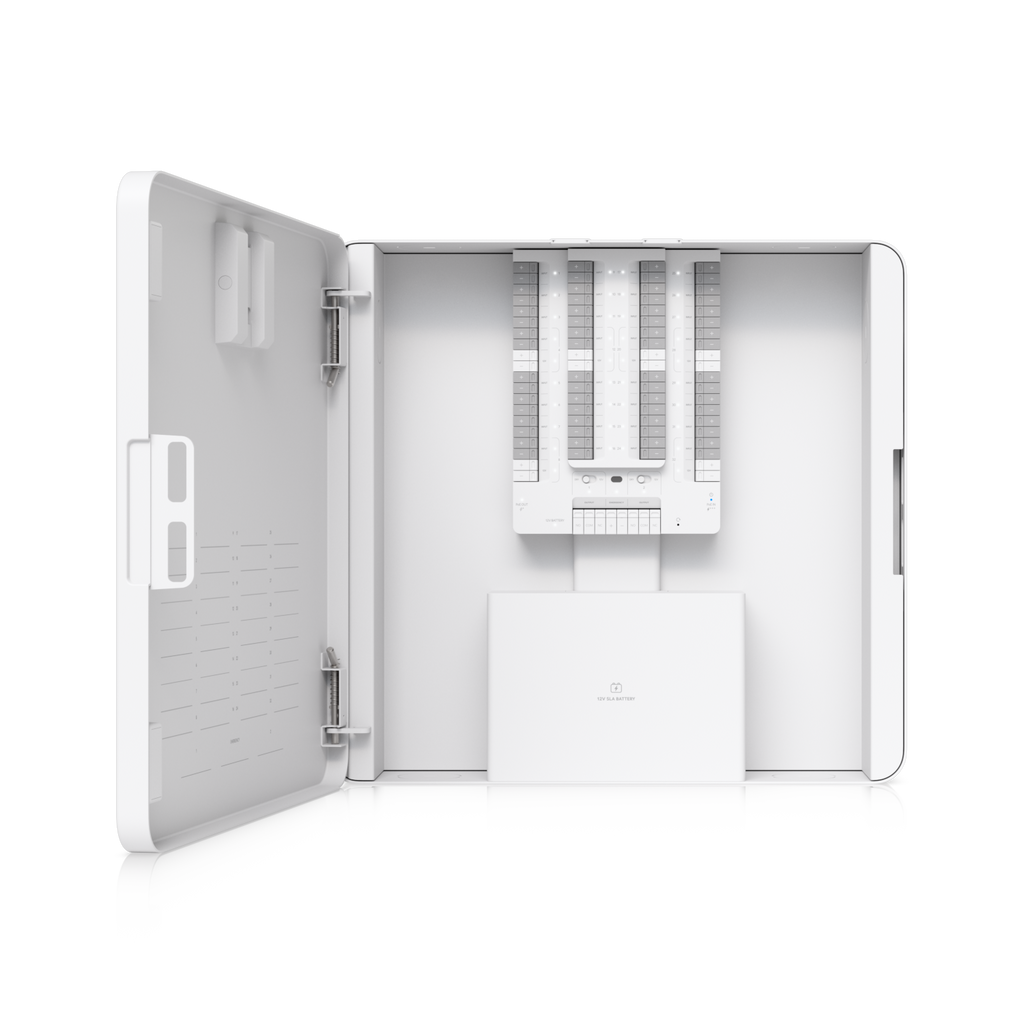

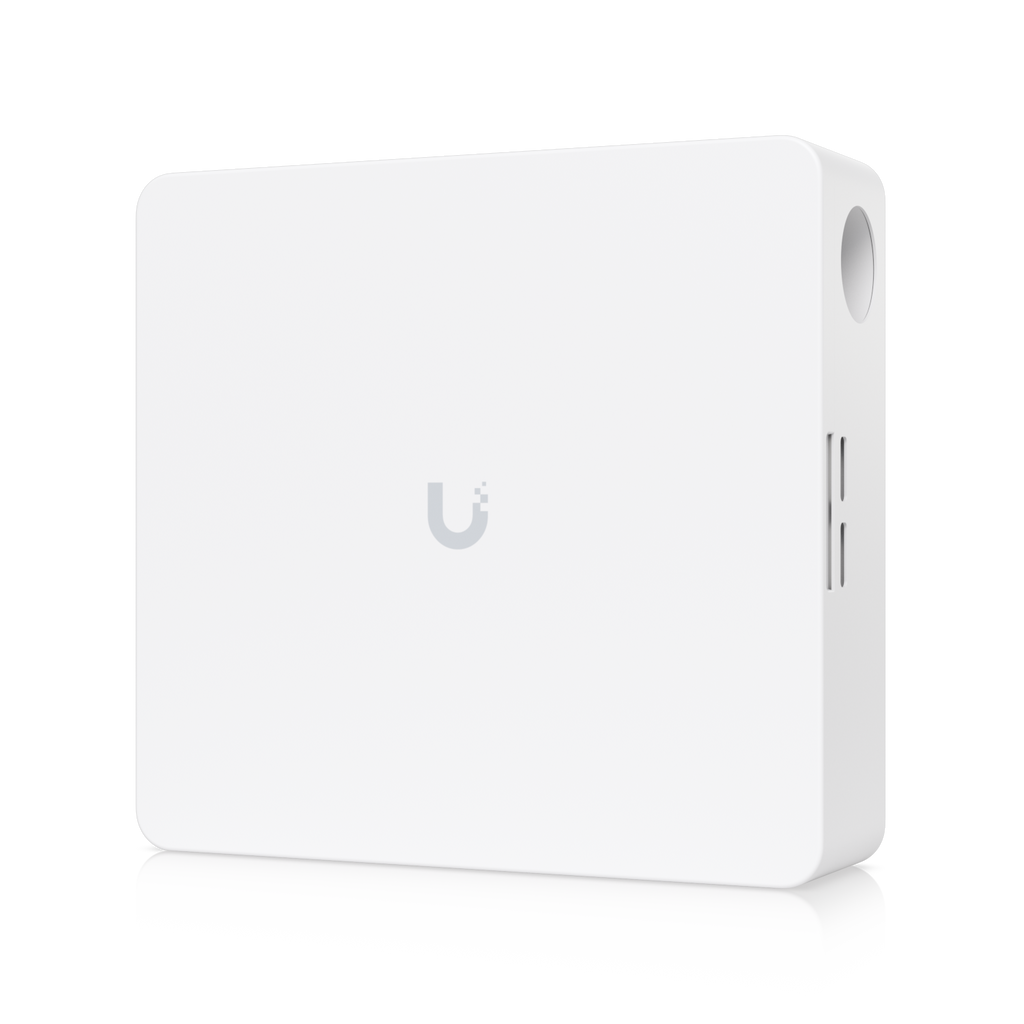

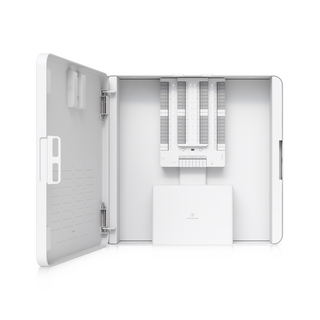

Protect Alarm Hub Kit
UP-AlarmHub
32 input zone alarm control hub for hardwire intrusion sensors powered using PoE++ input and optional battery backup.SpecificationsOverview Dimensions 379 x 355 x 105 mm (15 x 14 x 4.1")...

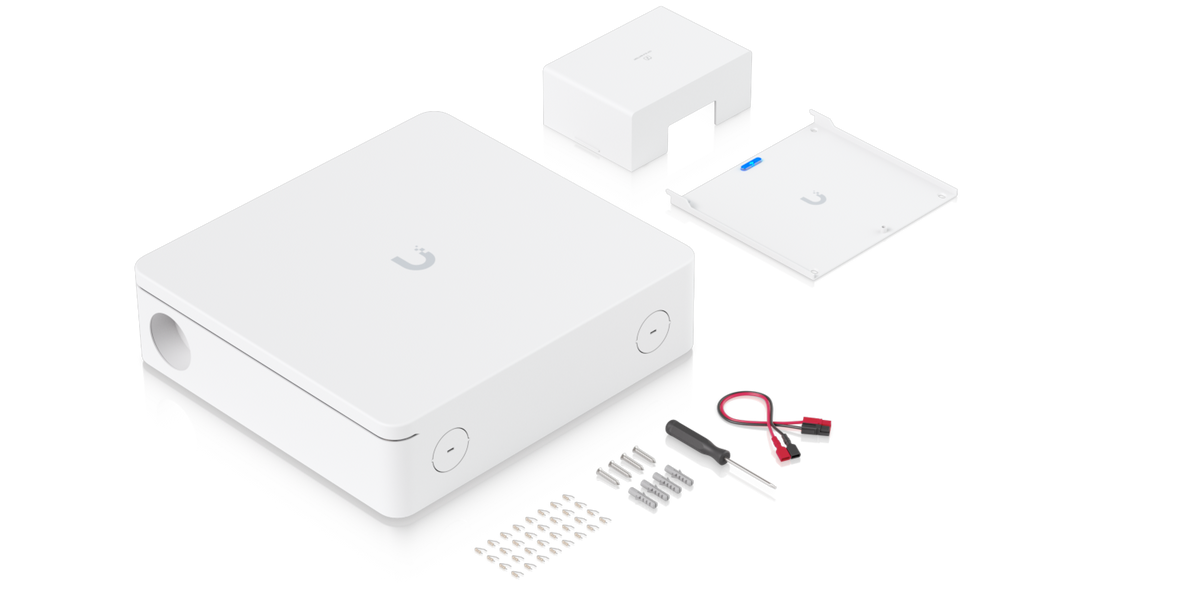

What’s in the box
Everything that ships with your Protect Alarm Hub Kit — straight from the manufacturer.
What it is, and who it is for.
Built for the home — serious networking that disappears into the walls, no IT department required.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
32 input zone alarm control hub for hardwire intrusion sensors powered using PoE++ input and optional battery backup.
Specifications
Overview
| Dimensions | 379 x 355 x 105 mm (15 x 14 x 4.1") |
| Input Terminals | (32) Alarm sensor (1) Emergency |
| Power Method | PoE++/PoE+++ 12V SLA battery |
| Power Output Availability | PoE+++ input: 68W PoE++ input: 42W Max. combined power from PoE+ output, 12V aux power outputs, and 12V relay outputs |
Mechanical
| Weight | Device: 8.3 kg (18.3 lb) Mount: 624 g (1.4 lb) |
| Enclosure Material | SGCC steel housing with polycarbonate cover |
| Mount Material | SGCC steel |
| Mounting | Wall |
Hardware
| Digital Input | (32) Inputs for alarm sensor (Compatible with EOL resistors: 1–5.6kΩ, 1kΩ included) (1) Emergency End-of-line (EOL) resistors enable the detection of wiring faults between the Alarm Hub and the sensor |
| Output Relay | (2) Wet/Dry Wet: 12V DC, 1A Dry: 30V DC, 1A |
| Aux Power Output | For sensor: (3) 12V DC, 1A right side total, (3) 12V DC, 1A left side total |
| Indoor and Outdoor Use | Indoor only |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Networking Interface | (1) 10/100 MbE RJ45 port |
| PoE Interface | (1) PoE++/PoE+++ input, 54V DC, 60W/90W (1) PoE+ output, 54V DC, 30W |
| Max. Power Consumption | 90W |
| Battery Charge | SLA backup battery, 12V, 0.3A |
| LEDs | W/B <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Buttons | (1) Factory reset (2) Dry/Wet switch |
| Certifications | CE, FCC, IC |
Software
| UniFi Protect | Version 7.0.88 and later |
| Mobile App | UniFi Protect iOS™ version 3.3.0 and later UniFi Protect Android™ version 3.2.0 and later |
