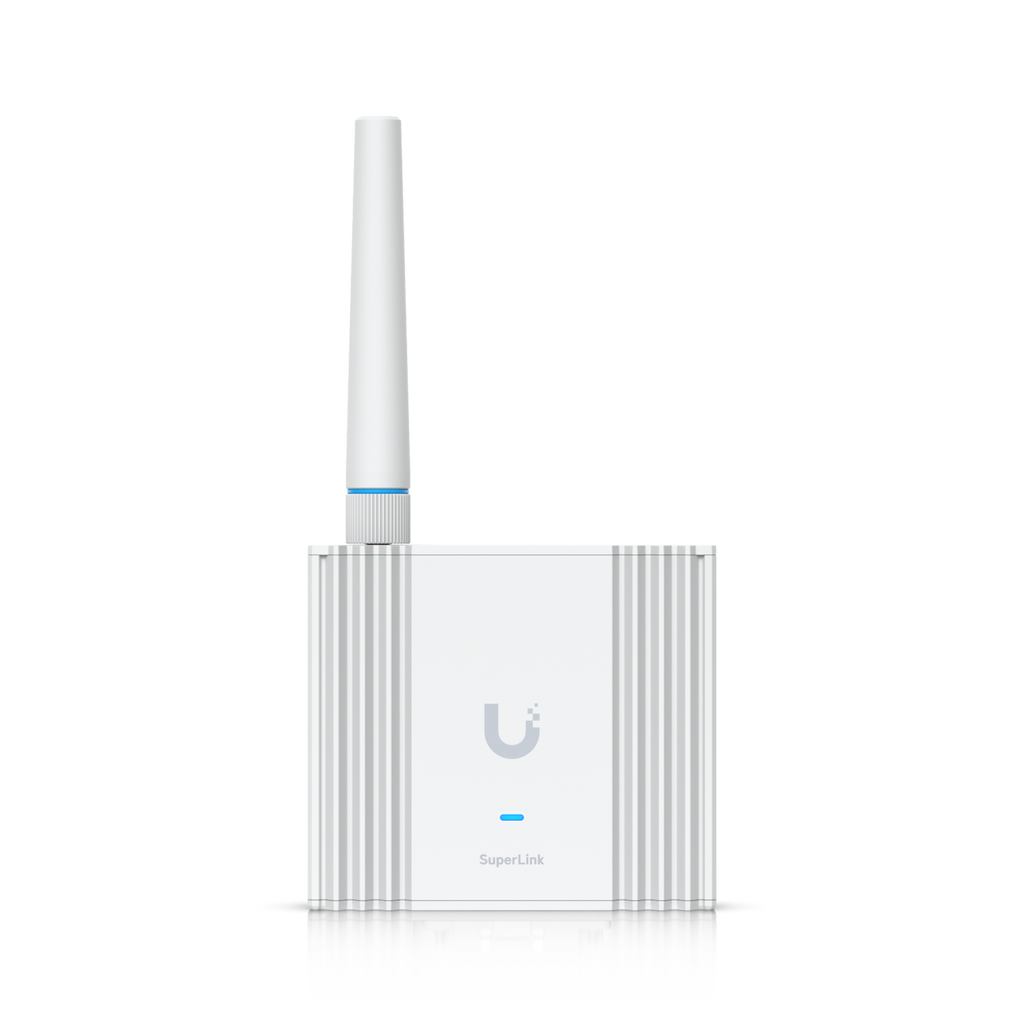

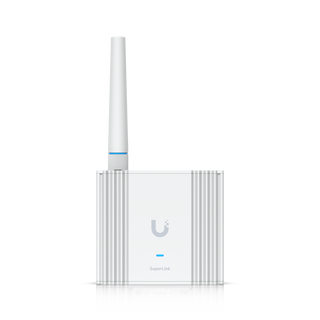

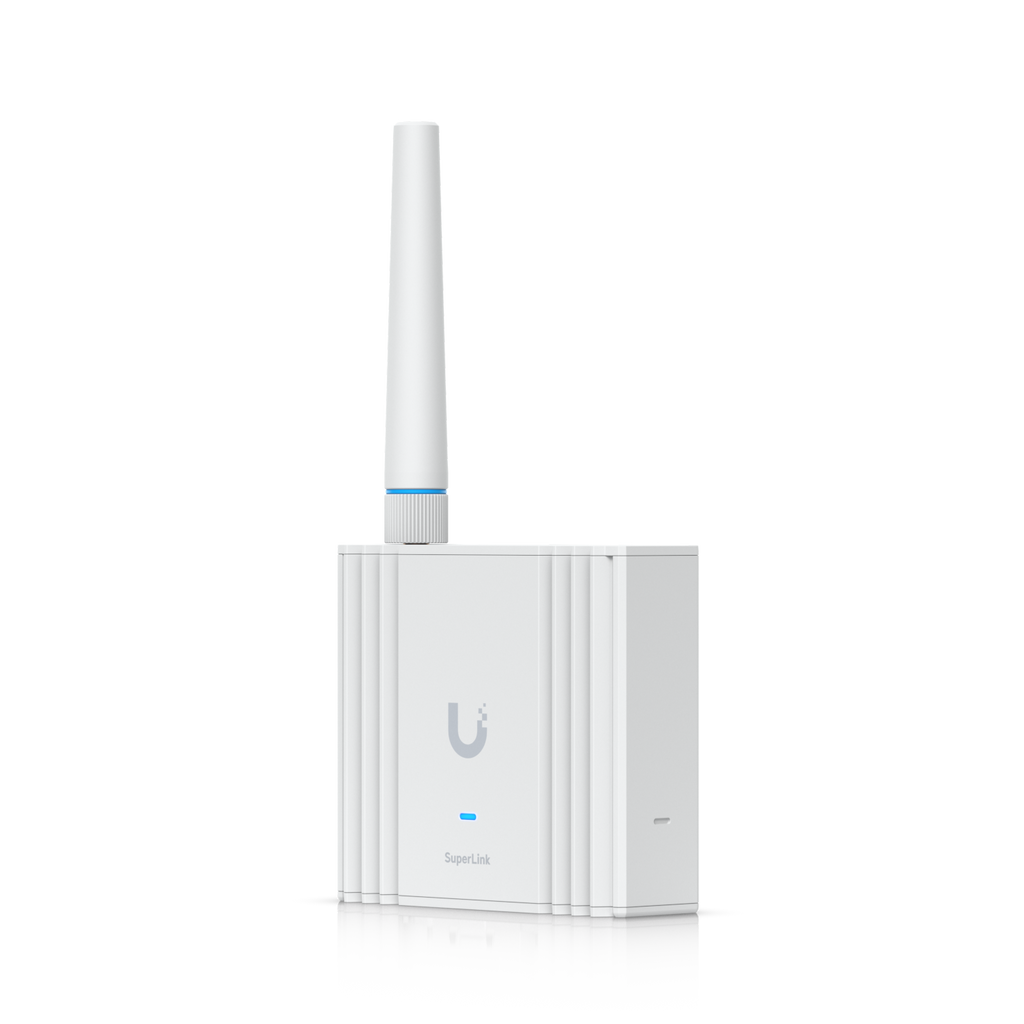

SuperLink Gateway
USL-Gateway-US
Proprietary super long-range, low-latency wireless gateway for UniFi Protect Sensors.SuperLink Setup GuideNote. Long-range BLE coverage is comparable to WiFi coverage.Key featuresSpecificationsOverview Dimensions With antenna: 159.3 x 81.9 x 26 mm...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Proprietary super long-range, low-latency wireless gateway for UniFi Protect Sensors.
Note. Long-range BLE coverage is comparable to WiFi coverage.
Key features
Specifications
Overview
| Dimensions | With antenna: 159.3 x 81.9 x 26 mm (6.3 x 3.2 x 1") With DIN rail mount: 159.3 x 81.9 x 38.5 mm (6.3 x 3.2 x 1.5") With wall mount: 159.3 x 81.9 x 30.5 mm (6.3 x 3.2 x 1.2") |

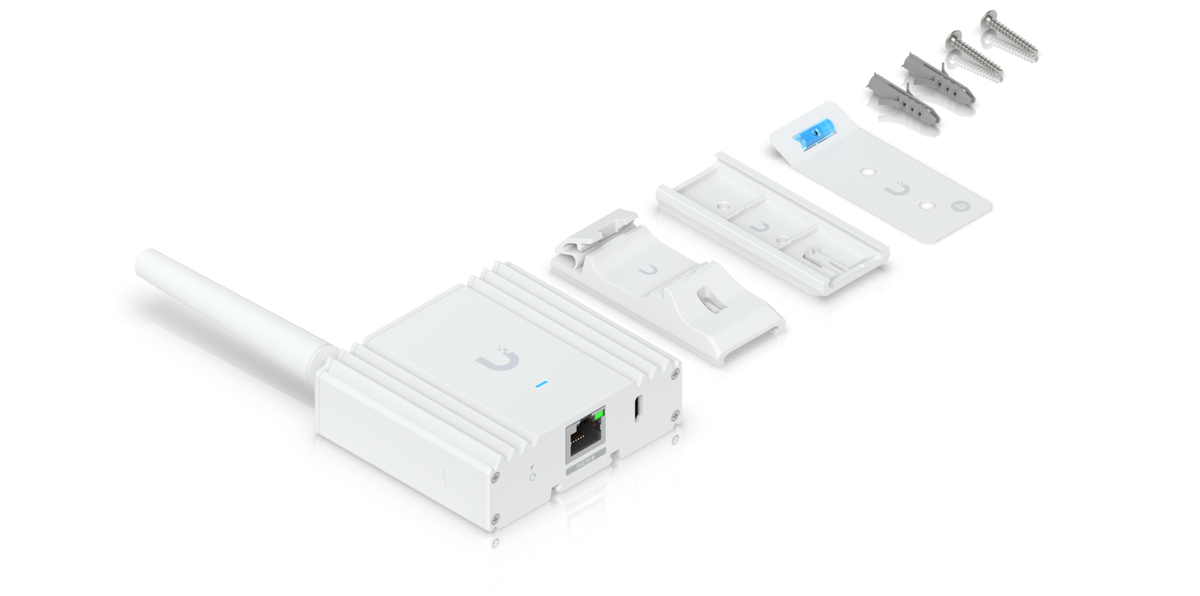

| Mounting | Wall and DIN rail mount |
| UniFi Application Suite | Protect |
Performance
| Networking Interface | (1) 10/100 MbE RJ45 port |
| Connectivity | Bluetooth® 5.2 SuperLink (Proprietary) |
| Bluetooth | 2400–2480 MHz |
| SuperLink | US: 915.6–927.6 MHz EU: 865.1–869.5 MHz |
| Bluetooth | 3 dBi |
| SuperLink | 2 dBi |
| Bluetooth | 10 dBm |
| SuperLink | 27 dBm |
| Bluetooth | Up to 100 m (328 ft) |
| SuperLink | 2 km (1.2 mi) Line of Sight (LOS) |
| Bluetooth | 7 |
| SuperLink | 96 |
Hardware
| Max. Power Consumption | 3.4W |
| Power Method | PoE USB Type-C, 5V, 1A (Optional) |
| Weight | 179 g (6.3 oz) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Polycarbonate |
| Antenna Connector | (1) RP-SMA female |
| Buttons | (1) Factory reset |
| LEDs | (1) Status: B/W |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
Software
| Web Application | UniFi Protect |
| Mobile App | UniFi Protect iOS™ and Android™ |
