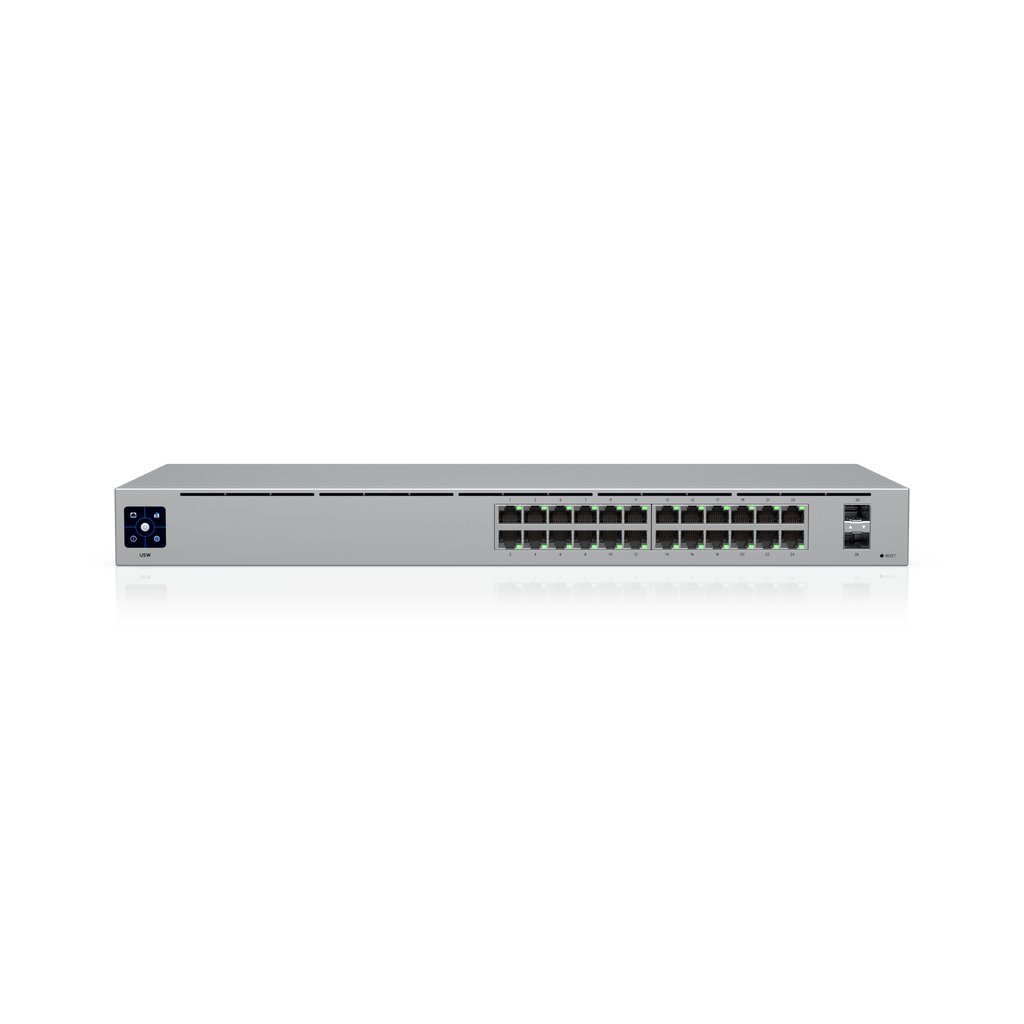

Switch 24
USW-24
A 24-port, Layer 2 switch with a silent, fanless cooling system.Key features (24) GbE ports (2) 1G SFP ports Fanless, silent coolingSpecificationsOverview Dimensions 442 x 200 x 44 mm (17.4...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
A 24-port, Layer 2 switch with a silent, fanless cooling system.
Key features
(24) GbE ports
(2) 1G SFP ports
Fanless, silent cooling
Specifications
Overview
| Dimensions | 442 x 200 x 44 mm (17.4 x 7.9 x 1.7") |
| 1 GbE RJ45 | 24 (1G/100M/10M) |
| 1G SFP | 2 (1G) |
| Form Factor | Rack mount (1U) |
Performance
| Switching Capacity | 52 Gbps |
| Total Non-Blocking Throughput | 26 Gbps |
| Forwarding Rate | 39 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 8,000 |
| Packet Buffer Size | 0.5 MB |
| IPv4 | 128 |
| MAC | 128 |
Hardware
| Max. Power Consumption | 25W |
| Power Method | Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 36W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet AR |
| Heat Dissipation | 85.3 BTU/hr |
| Weight | Without mounting brackets: 2.7 kg (6 lb) With mounting brackets: 2.8 kg (6.2 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm (15.7-47.2") |
| LCM Display | 1.3" touchscreen |
| Ambient Operating Temperature | -5 to 45° C (23 to 113° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 17193-20-08356 |
Software
| UniFi Network | Version 7.2.94 and later |
Downloads & documents
