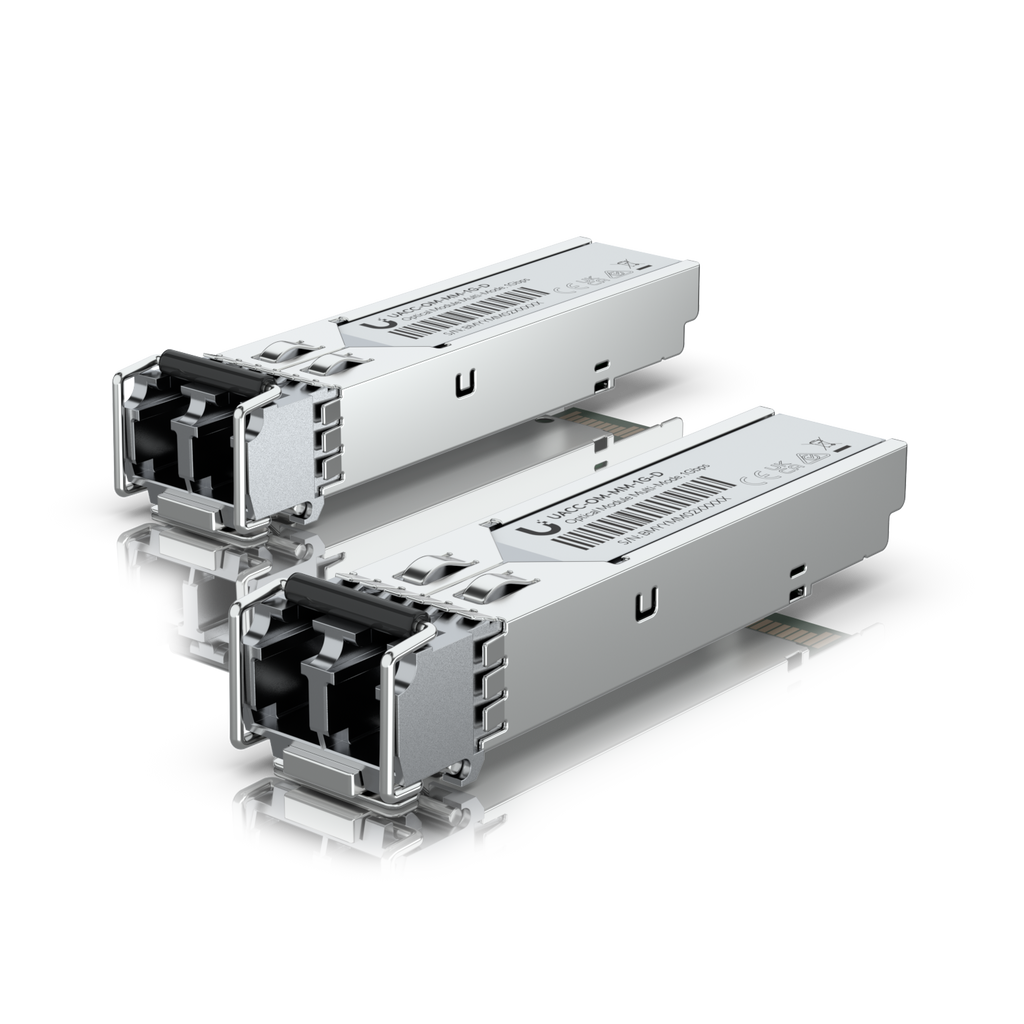

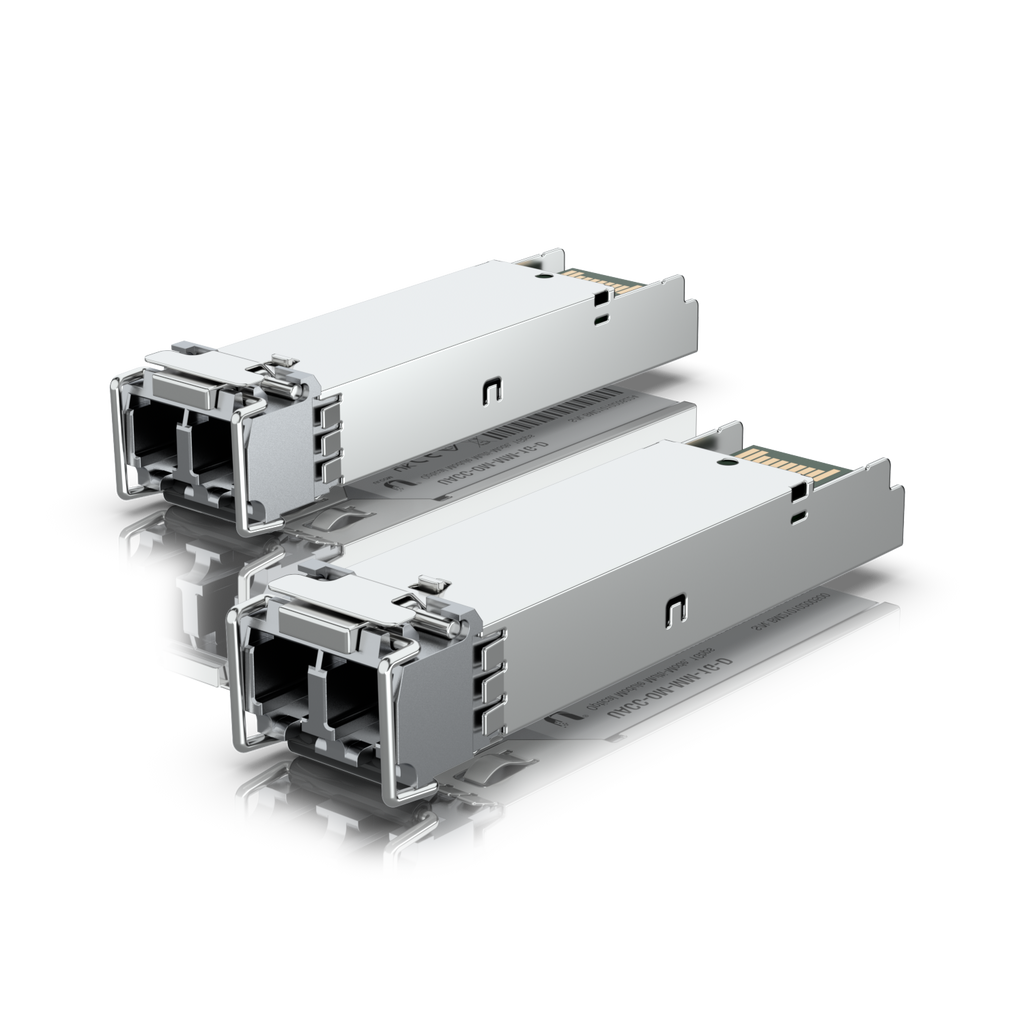

1G Multi-Mode Optical Module
UACC-OM-MM-1G-D · Single Unit
SFP transceiver that supports 1G connections up to 550 m using multi-mode fiber with a duplex LC UPC connector.Key features Max data rate: 1 Gbps Compatible with SFP interfaces Duplex...
Or build it into a bundle — save up to 6% ↓What it is, and who it is for.
Ready for the floor — the gear that runs a real business all day, every day.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
SFP transceiver that supports 1G connections up to 550 m using multi-mode fiber with a duplex LC UPC connector.
Key features
Max data rate: 1 Gbps
Compatible with SFP interfaces
Duplex LC UPC connector
Supports multi-mode fiber connections up to 550 m*
*Fiber cable is not included.
Specifications
Overview
| Form Factor | SFP |
| Connector | Duplex LC UPC |
| Supported Media | Multi-Mode Fiber |
| TX Wavelength | 850 nm |
| RX Wavelength | 850 nm |
| Supported Data Rate | 1 Gbps |
| Supported Cable Distance | 550 m (1,804 ft) |
| Max. Power Consumption | 0.66 W |
| Pack Options | Single Unit 2-Pack 20-Pack |
| Ambient Operating Temperature | 0 to 70° C (32 to 158° F) |
| WARNING | CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 Do not look into the ends of the fiber optic cable or SFP module while converters are powered. |
Downloads & documents
