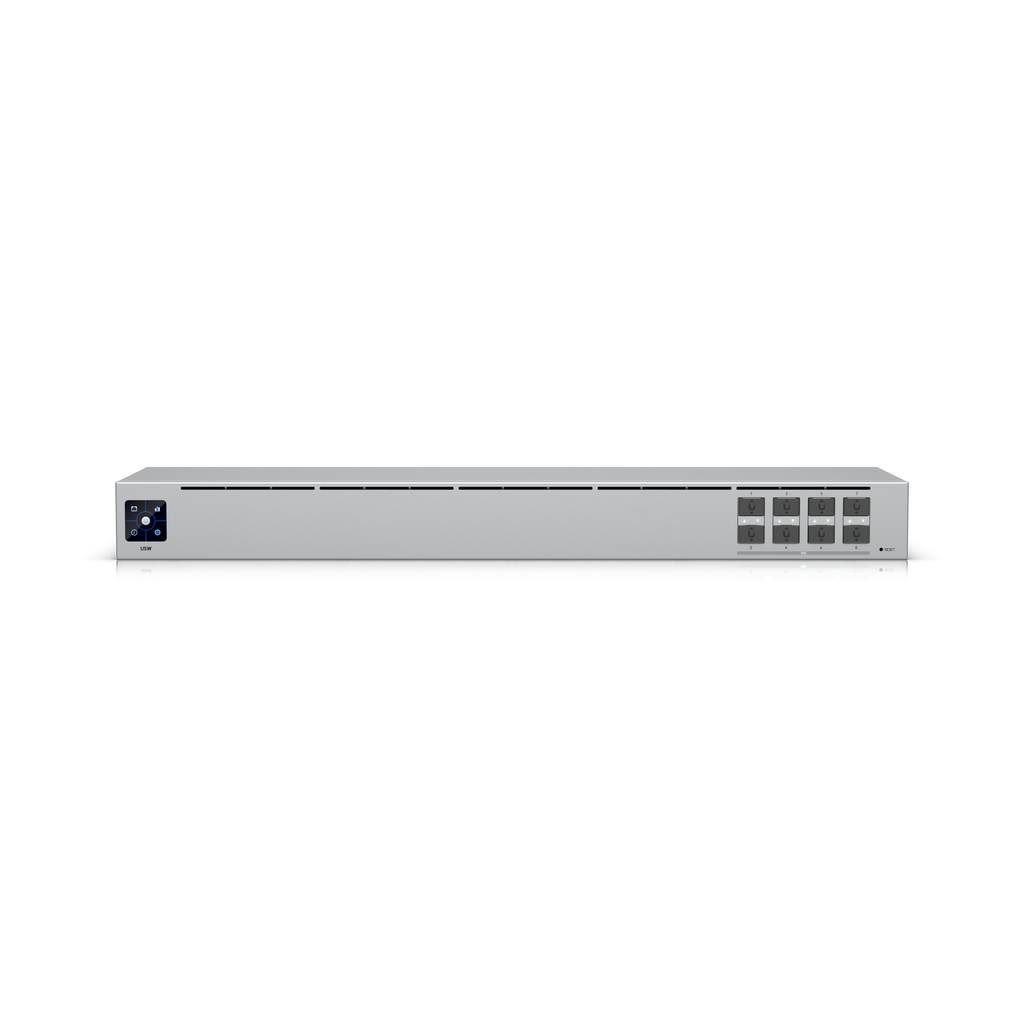

Switch Aggregation
USW-Aggregation · US Version
An 8-port, Layer 2 switch made for 10G SFP+ connections.Key features (8) 10G SFP+ ports Fanless, silent coolingSpecificationsOverview Dimensions 442 x 120 x 43.7 mm (17.4 x 4.7 x 1.7")...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
An 8-port, Layer 2 switch made for 10G SFP+ connections.
Key features
(8) 10G SFP+ ports
Fanless, silent cooling
Specifications
Overview
| Dimensions | 442 x 120 x 43.7 mm (17.4 x 4.7 x 1.7") |
| 10G SFP+ | 8 (10G/1G) |
| Form Factor | Rack mount (1U) |
Performance
| Switching Capacity | 160 Gbps |
| Total Non-Blocking Throughput | 80 Gbps |
| Forwarding Rate | 119 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| Packet Buffer Size | 1.5 MB |
| IPv4 | 128 |
| MAC | 128 |
Hardware
| Max. Power Consumption | 36W (Including SFP modules) |
| Power Method | Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 36W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet AR |
| Heat Dissipation | 102 BTU/hr |
| Weight | Without mounting brackets: 2.6 kg (5.8 lb) With mounting brackets: 2.7 kg (6 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm (15.7-47.2") |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 16kV, contact: ± 12kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 04456-21-08356 |
Software
| UniFi Network | Version 5.14.12 and later |
Downloads & documents
