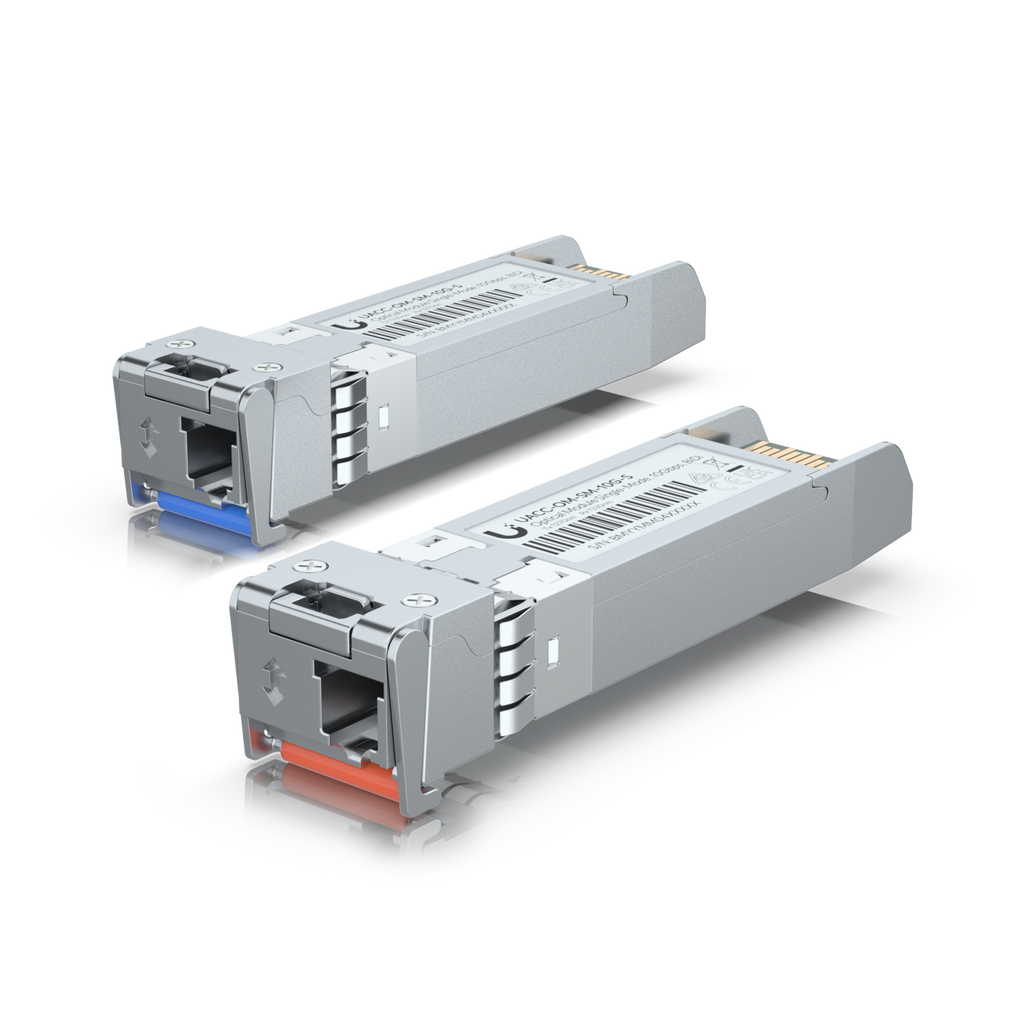

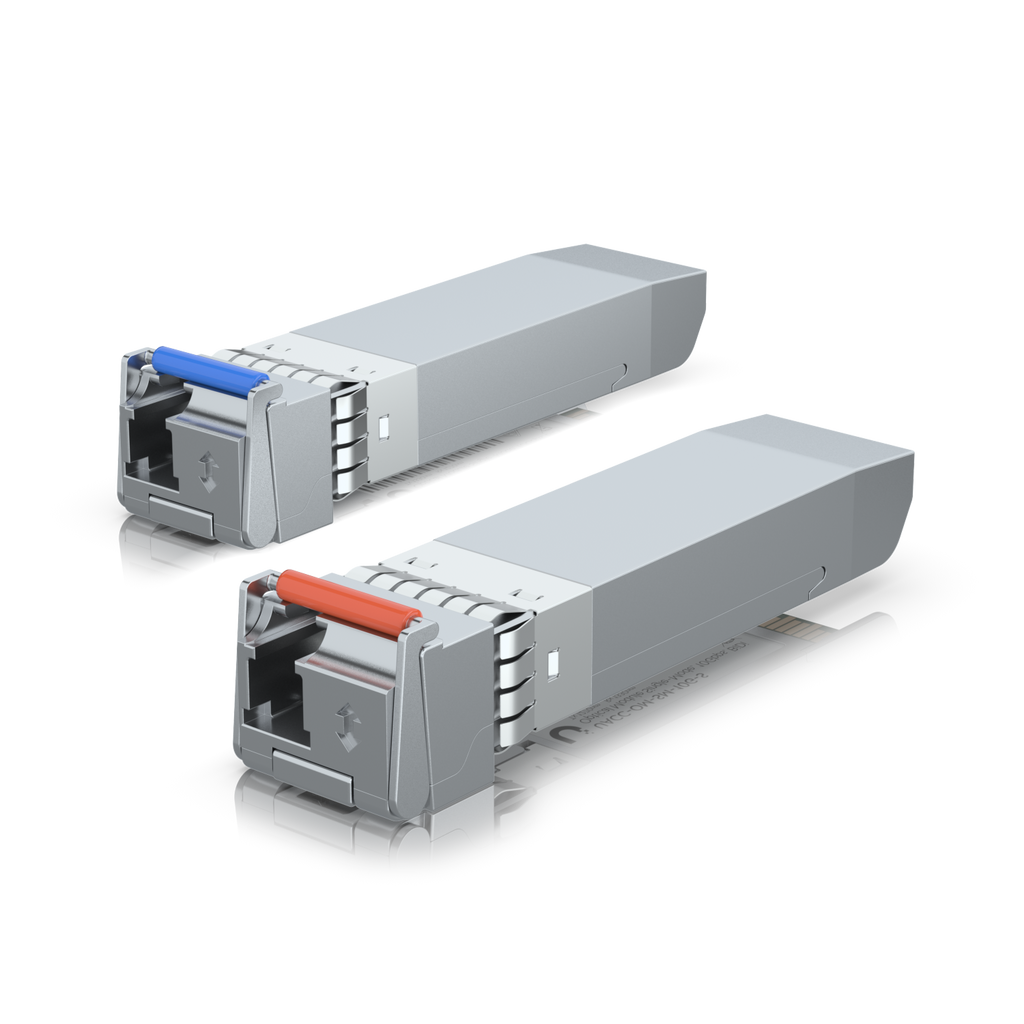

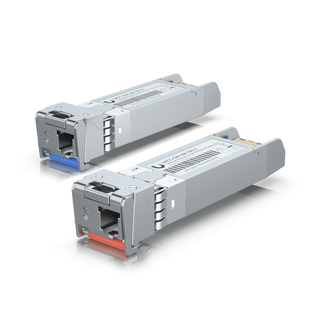

10G Bidirectional Single-Mode Optical Module
UACC-OM-SM-10G-S-2 · 2-Pack
SFP+ transceiver that supports 10G connections up to 10 km using single-mode fiber with a simplex LC UPC connector.Key features Max data rate: 10 Gbps Compatible with SFP+ and SFP...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
SFP+ transceiver that supports 10G connections up to 10 km using single-mode fiber with a simplex LC UPC connector.
Key features
Max data rate: 10 Gbps
Compatible with SFP+ and SFP interfaces
Simplex LC UPC connector
Supports single-mode fiber connections up to 10 km*
*Fiber cable is not included.
Specifications
Overview
| Form Factor | SFP+ |
| Connector | Simplex LC UPC |
| Supported Media | Single-Mode Fiber |
| TX Wavelength | 1270 / 1330 nm |
| RX Wavelength | 1330 / 1270 nm |
| Supported Data Rate | 1 / 10 Gbps |
| Supported Cable Distance | 10 km (6.2 mi) |
| Max. Power Consumption | 1 W |
| Pack Options | 2-Pack 20-Pack |
| Ambient Operating Temperature | 0 to 70° C (32 to 158° F) |
| WARNING | CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 Do not look into the ends of the fiber optic cable or SFP module while converters are powered. |
