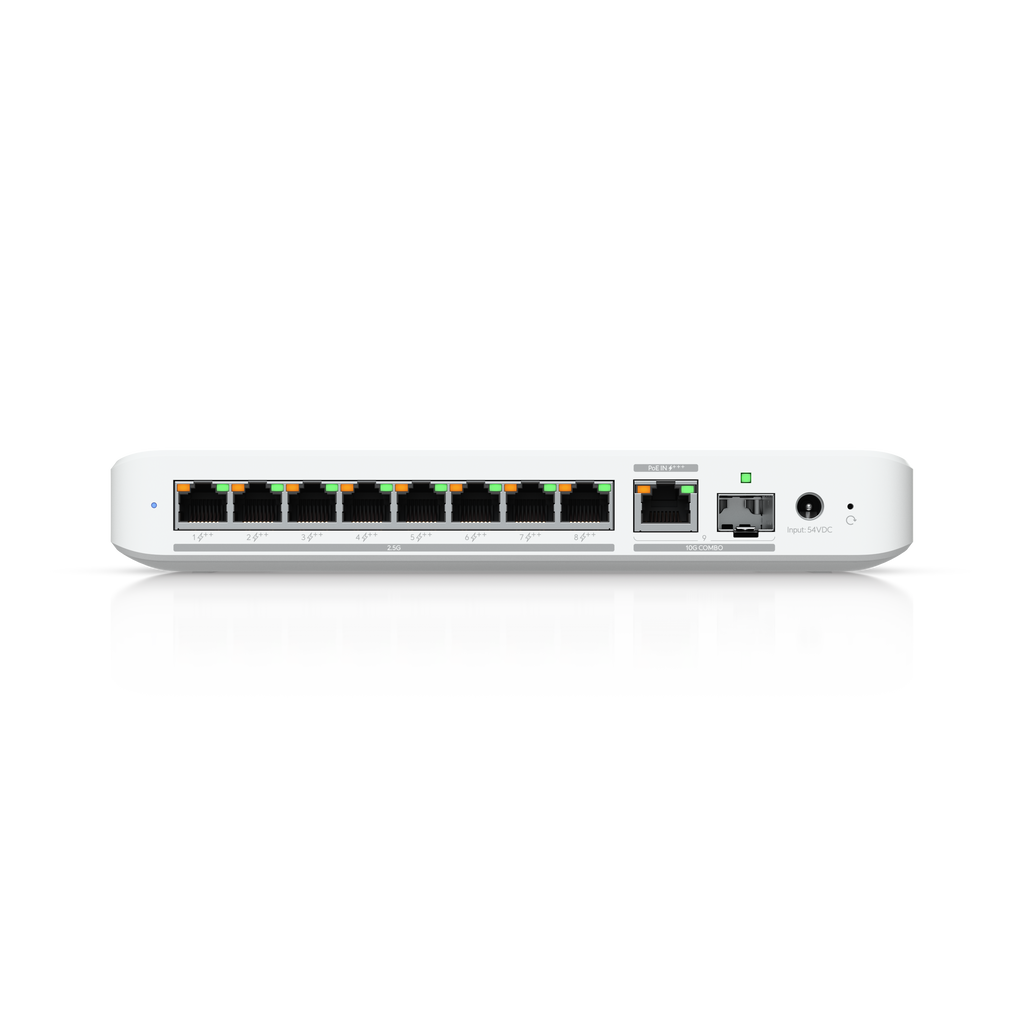

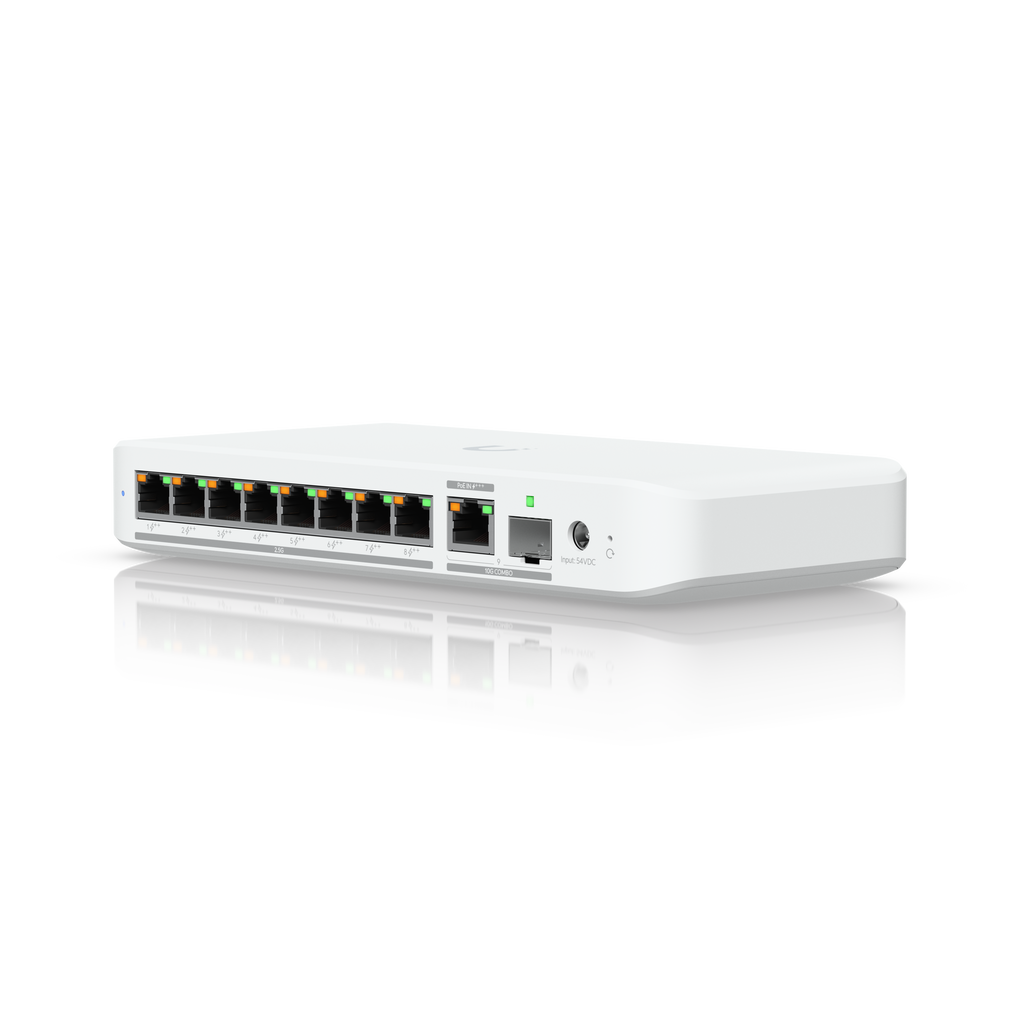

Switch Flex 2.5G PoE
USW-Flex-2.5G-8-PoE
Flexible, 8-port 2.5 GbE PoE++ switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with PoE+++ or an AC power adapter.Note. Actual PoE availability may vary...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Flexible, 8-port 2.5 GbE PoE++ switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with PoE+++ or an AC power adapter.
Note. Actual PoE availability may vary based on input cable length and quality.
AC power adapter sold separately.
Key features
(8) 2.5 GbE PoE++ output ports
(1) 10 GbE PoE+++ input port for power / SFP+ port combo
— 76W PoE availability with PoE+++ input*
— 46W PoE availability with PoE++ input*
— 16W PoE availability with PoE+ input*
196W PoE availability with optional AC power adapter**
*Actual PoE availability may vary based on input cable length and quality.
**AC power adapter sold separately.
Specifications
Overview
| Dimensions | 212.9 x 99.4 x 33.5 mm (8.4 x 3.9 x 1.3") |
| 2.5 GbE RJ45 | 8 (All PoE++) (2.5G/1G/100M/10M) |
| 10 GbE RJ45 | 1 (PoE+++) (10G/5G/2.5G/1G/100M) Combo port |
| 10G SFP+ | 1 (10G/1G) Combo port |
| Max. PoE Output | Up to PoE++ |
| Total PoE Availability | PoE+++ input: 76W PoE++ input: 46W PoE+ input: 16W 210W AC adapter input: 196W PoE input availability excludes cable loss. AC input availability at 45° C (113° F) operating temperature. Reduced to 156W (230V) or 116W (115V) at 60° C (140° F) |

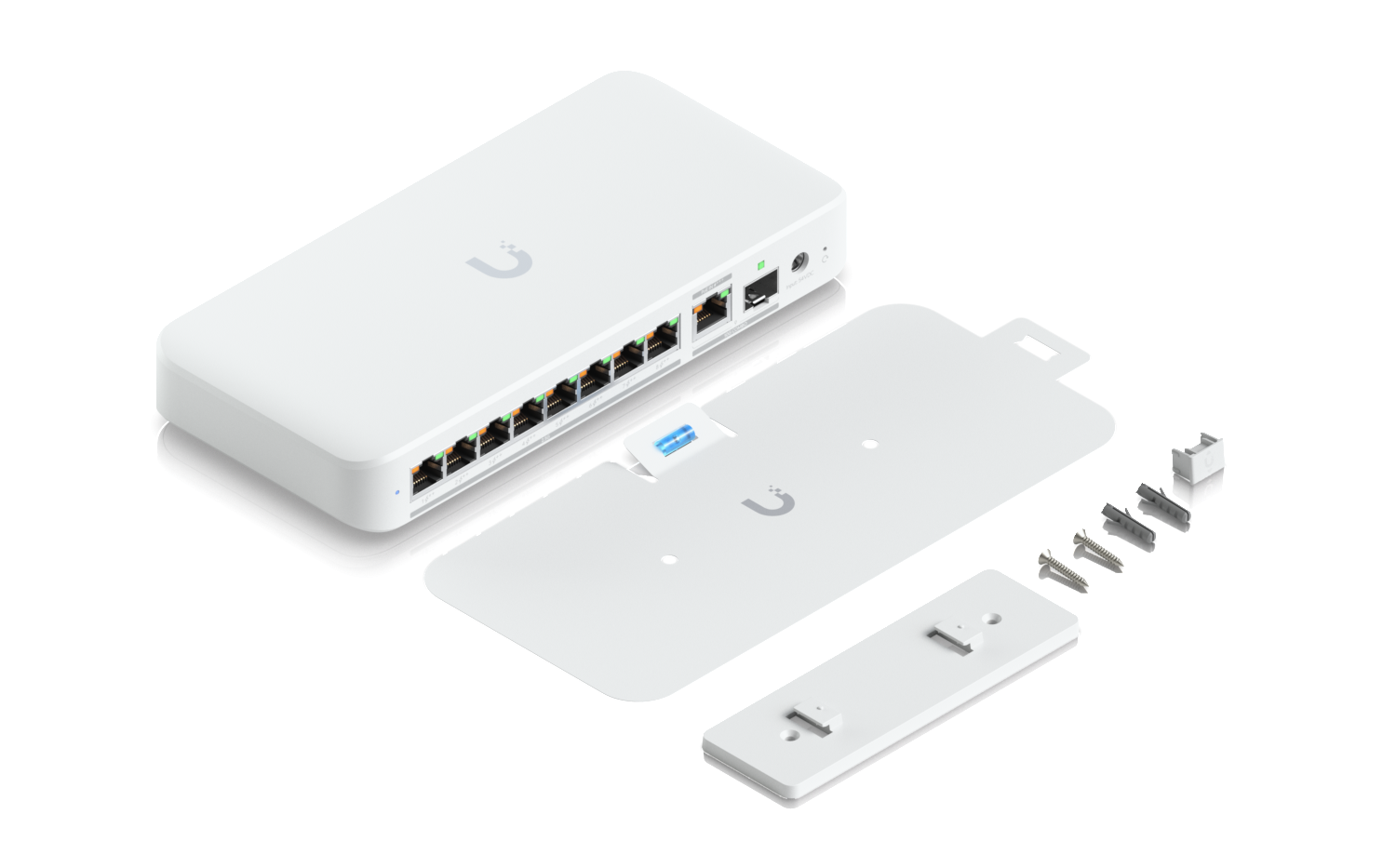

| Form Factor | Compact Desktop, wall, DIN, magnetic DIN and Magnetic are sold separately |
Performance
| Switching Capacity | 60 Gbps |
| Total Non-Blocking Throughput | 30 Gbps |
| Forwarding Rate | 45 Mpps |
| Supported VLANs | 256 |
| MAC Address Table Size | 4,000 |
Hardware
| PoE++ | 8 |
| PoE | 15.4W |
| PoE+ | 32W |
| PoE++ | 64W |
| Max. Power Consumption | 14W (Excluding PoE output) with PoE input 17W (Excluding PoE output) with AC adapter input 210W (Including PoE Output) |
| Power Method | (1) AC/DC adapter (Excluded) (1) PoE+++ AC power adapter sold separately. |
| Power Input Method | DC Input PoE |
| Supported Voltage Range | 50–57V DC/PoE |
| Management | Ethernet |
| Weight | 567 g (20 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Ambient Operating Temperature | -20 to 45° C (-4 to 113° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
Software
| UniFi Network | Version 9.0.114 and later |
Downloads & documents
