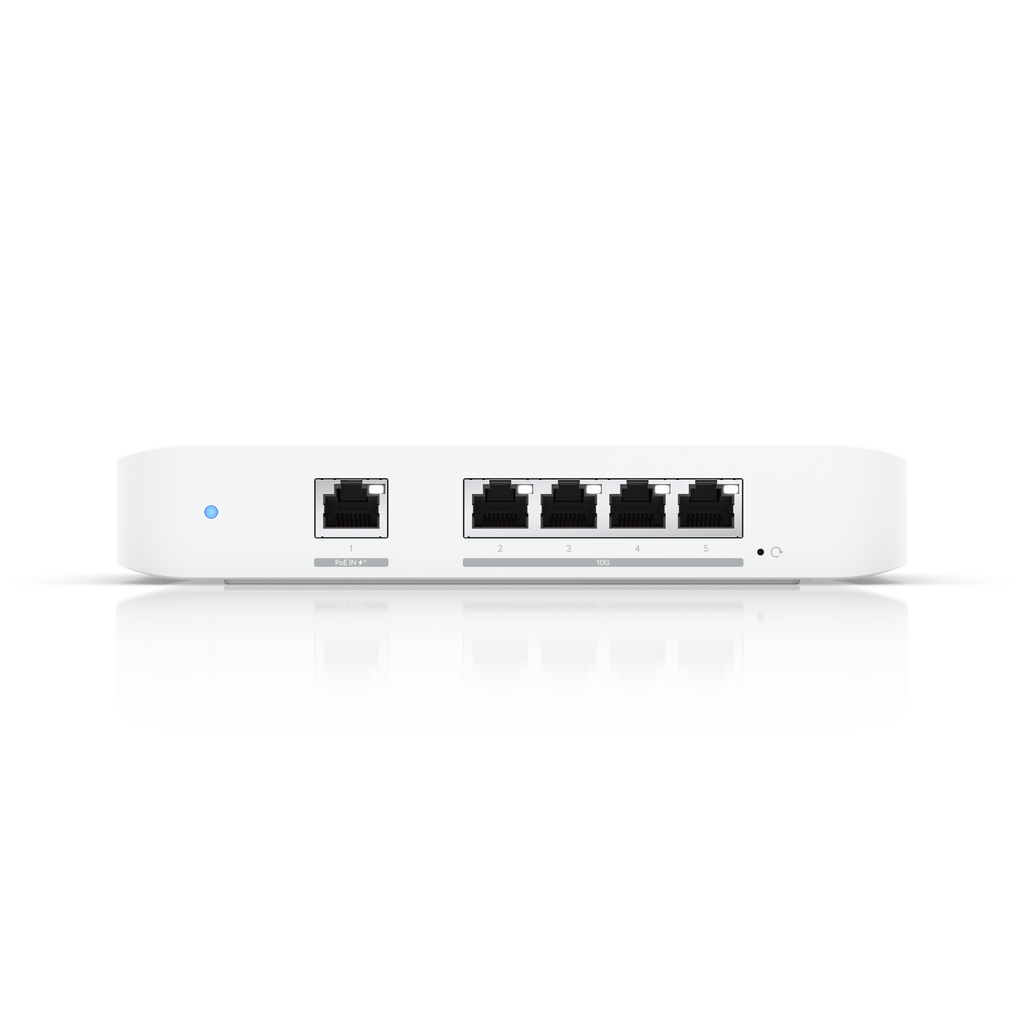

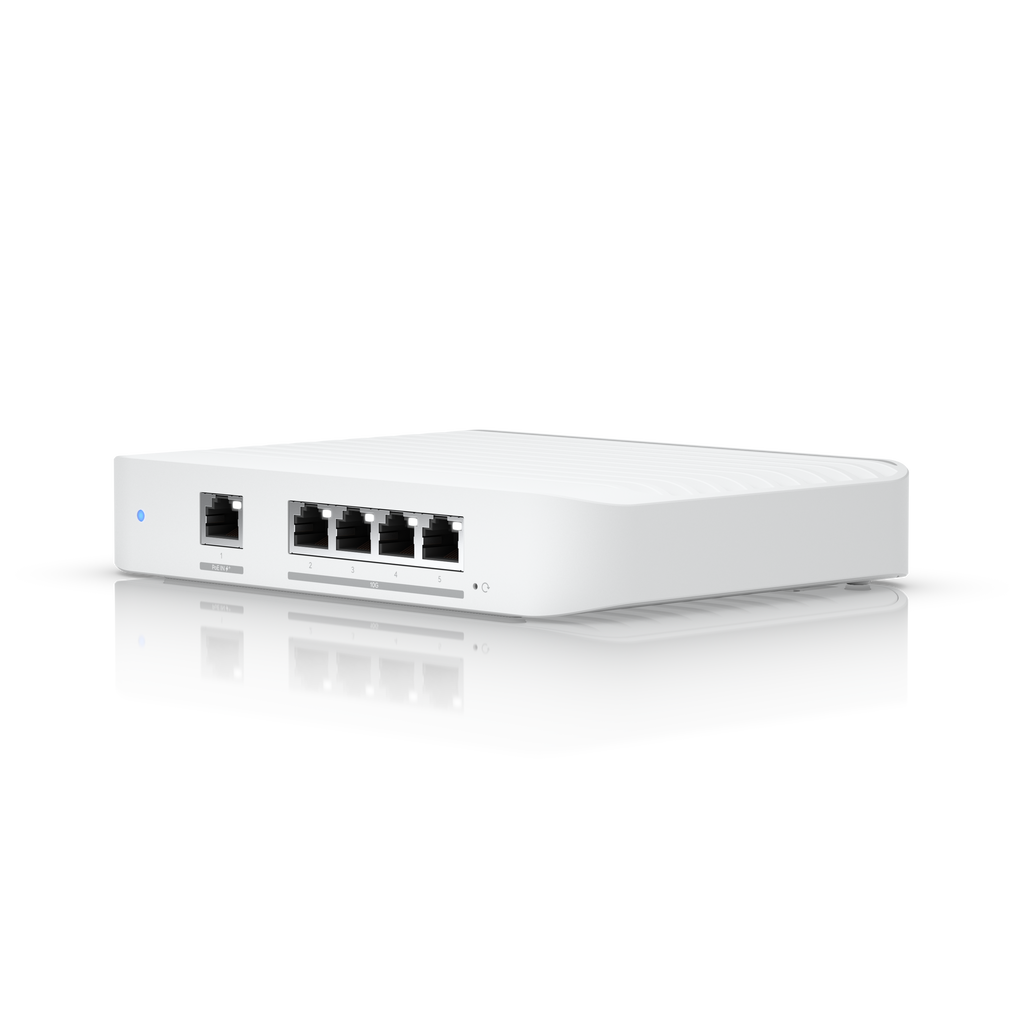

Switch Flex XG
USW-Flex-XG · US Version
A compact, 5-port, Layer 2 switch that supports 10 GbE speeds and can be powered with PoE or a 5V USB-C adapter.Key features (4) 10 GbE ports (1) GbE PoE+...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
A compact, 5-port, Layer 2 switch that supports 10 GbE speeds and can be powered with PoE or a 5V USB-C adapter.
Key features
(4) 10 GbE ports
(1) GbE PoE+ input port for power
Specifications
Overview
| Dimensions | 135 x 185 x 32 mm (5.3 x 7.3 x 1.3") |
| 1 GbE RJ45 | 1 (1G/100M/10M) |
| 10 GbE RJ45 | 4 |
| Form Factor | Compact desktop, wall |
Performance
| Switching Capacity | 82 Gbps |
| Total Non-Blocking Throughput | 41 Gbps |
| Forwarding Rate | 61 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| Packet Buffer Size | 1.5 MB |
| IPv4 | 12 |
| MAC | 10 |
Hardware
| Max. Power Consumption | 25W |
| Power Method | (1) PoE+ (1) USB Type-C, 5V DC, 5A |
| Power Input Method | USB Input PoE |
| Power Supply | AC/DC, external, 25W |
| Supported Voltage Range | 4.8—5.2V DC/USB 44V—57V PoE |
| Management | Ethernet |
| Heat Dissipation | 85.3 BTU/hr |
| Weight | 1.2 kg (2.7 lb) |
| Enclosure Material | Polycarbonate |
| ESD Protection | Air: ± 16kV, contact: ± 12kV |
| Ambient Operating Temperature | -5 to 45° C (23 to 113° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 06606-25-08356 |
Software
| UniFi Network | Version 6.1.67 and later |
Downloads & documents
Build around the Switch Flex XG.
It's already in your kit below. Add a gateway and PoE and the discount starts working. Discount tiers climb with the bundle — the bars fill as you build.
Type your address. We'll spec the building.
Square footage, floors, rooms, construction type — turned into an AP count, a switch size, and a gateway that fits. No guesswork, no overbuying.
Four quick questions size the kit. Property-records autofill is in the build phase.
Enter an address and the plan appears here —
property facts first, then the kit.
Pick the right one, not the biggest one
The honest line-up from switches. Most buyers reading this page should buy the middle column.

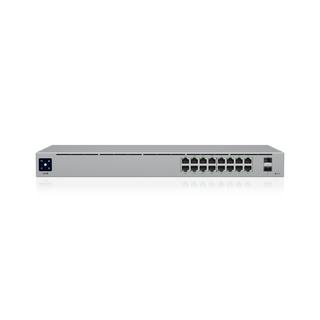

Switch 16 PoE
