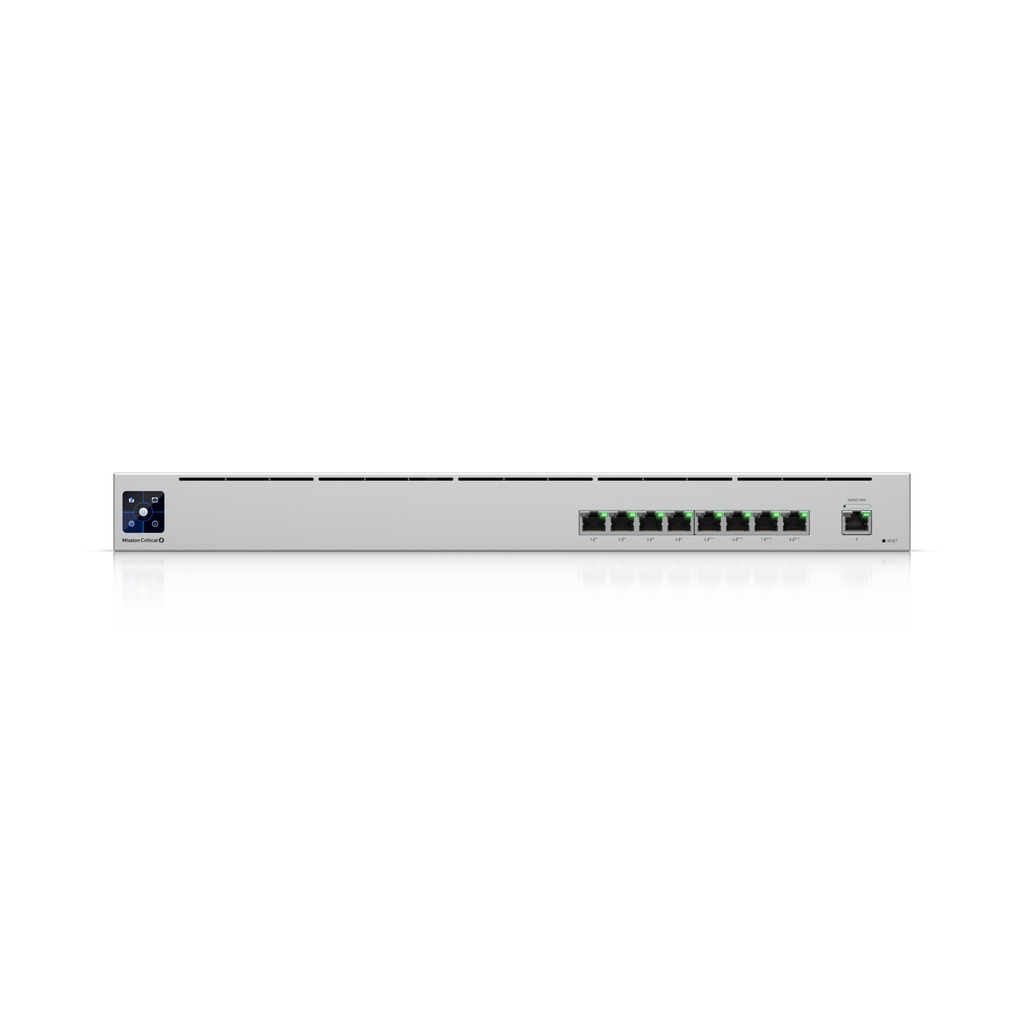

UPS PoE Switch Mission Critical
USW-Mission-Critical-US
A switch with an integrated 368Wh lithium-ion battery capable of providing uninterruptible PoE to 8 devices.Key features (4) GbE PoE+, (4) GbE PoE++ ports (1) GbE port (2) 110V AC...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
A switch with an integrated 368Wh lithium-ion battery capable of providing uninterruptible PoE to 8 devices.
Key features
(4) GbE PoE+, (4) GbE PoE++ ports
(1) GbE port
(2) 110V AC outputs; 120W total PoE available
Battery backup power system
Internal battery 368Wh
Specifications
Overview
| Dimensions | 442 x 480 x 44 mm (17.4 x 18.9 x 1.7") |
| 1 GbE RJ45 | 9 (4 PoE+; 4 PoE++) (1G/100M/10M) |
| Max. PoE Output | Up to PoE++ |
| Total PoE Availability | 120W |
| Redundancy | Battery Power Backup |
| Form Factor | Rack mount (1U) |
Performance
| Switching Capacity | 18 Gbps |
| Total Non-Blocking Throughput | 9 Gbps |
| Forwarding Rate | 13 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 8,000 |
| Packet Buffer Size | 0.5 MB |
| IPv4 | 128 |
| MAC | 128 |
Hardware
| PoE+ | 4 |
| PoE++ | 4 |
| PoE+ | 32W |
| PoE++ | 64W |
| Max. Power Consumption | 50W (Excluding PoE Output) 240W (Including PoE Output and AC Output) |
| Power Method | Universal input, 100–240V AC, 50/60 Hz External battery input, 48V DC |
| Power Input Method | AC input DC input (Backup) |
| Power Supply | AC/DC, internal, 240W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet AR |
| Heat Dissipation | 170.6 BTU/hr (Excluding PoE Output) |
| Weight | Without mount: 9 kg (19.9 lb) With mount: 9.2 kg (20.3 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 482.6 mm (19") four-post racks Posts depths ranging from 700 to 1,000 mm (27.6–39.4”) |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air/contact: ± 24kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 06679-25-08356 |
Software
| UniFi Network | Version 6.2.26 and later |
