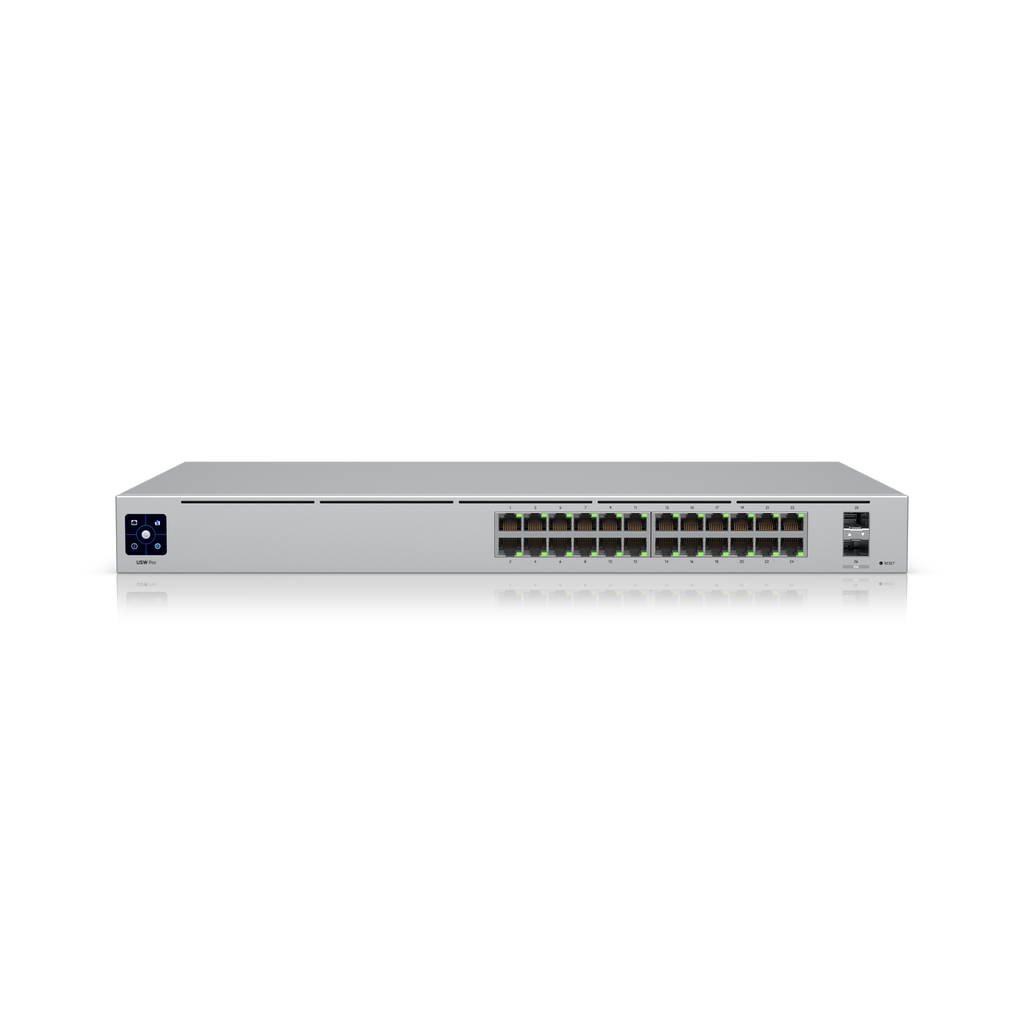

Switch Pro 24
USW-Pro-24 · US Version
A 24-port, Layer 3 switch supporting 10G SFP+ connections with fanless cooling.Key features (24) GbE ports (2) 10G SFP+ ports DC power backup-ready Layer 3 switchingSpecificationsOverview Dimensions 442 x 285...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
A 24-port, Layer 3 switch supporting 10G SFP+ connections with fanless cooling.
Key features
(24) GbE ports
(2) 10G SFP+ ports
DC power backup-ready
Layer 3 switching
Specifications
Overview
| Dimensions | 442 x 285 x 44 mm (17.4 x 11.2 x 1.7") |
| 1 GbE RJ45 | 24 (1G/100M/10M) |
| 10G SFP+ | 2 (10G/1G) |
| Redundancy | DC Power Backup With UniFi RPS |
| Form Factor | Rack mount (1U) |
Performance
| Switching Capacity | 88 Gbps |
| Total Non-Blocking Throughput | 44 Gbps |
| Forwarding Rate | 65 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| IPv4 Static Routes | 2 |
| Packet Buffer Size | 2 MB |
| IPv4 | 128 |
| MAC | 128 |
Hardware
| Max. Power Consumption | 30W |
| Power Method | (1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 36W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet AR |
| Heat Dissipation | 102.4 BTU/hr |
| Weight | Without mounting brackets: 3.5 kg (7.7 lb) With mounting brackets: 3.6 kg (7.9 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm (15.7-47.2") |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 16kV, contact: ± 12kV |
| Ambient Operating Temperature | -5 to 45° C (23 to 113° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 00469-21-08356 |
Software
| UniFi Network | Version 5.12.11 and later |
Downloads & documents
Build around the Switch Pro 24.
It's already in your kit below. Add a gateway and PoE and the discount starts working. Discount tiers climb with the bundle — the bars fill as you build.
Type your address. We'll spec the building.
Square footage, floors, rooms, construction type — turned into an AP count, a switch size, and a gateway that fits. No guesswork, no overbuying.
Four quick questions size the kit. Property-records autofill is in the build phase.
Enter an address and the plan appears here —
property facts first, then the kit.
Pick the right one, not the biggest one
The honest line-up from switches. Most buyers reading this page should buy the middle column.

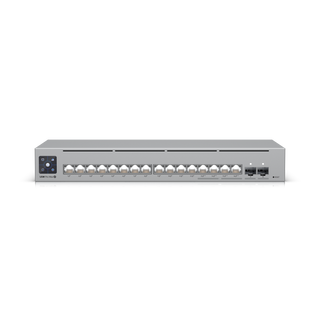

Switch Pro Max 16 PoE
Switch Pro 24

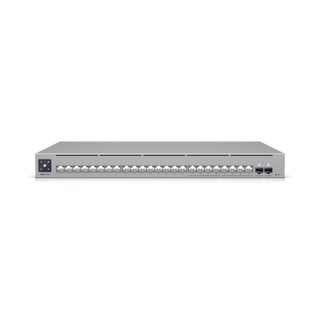

Switch Pro Max 24Asked before checkout
