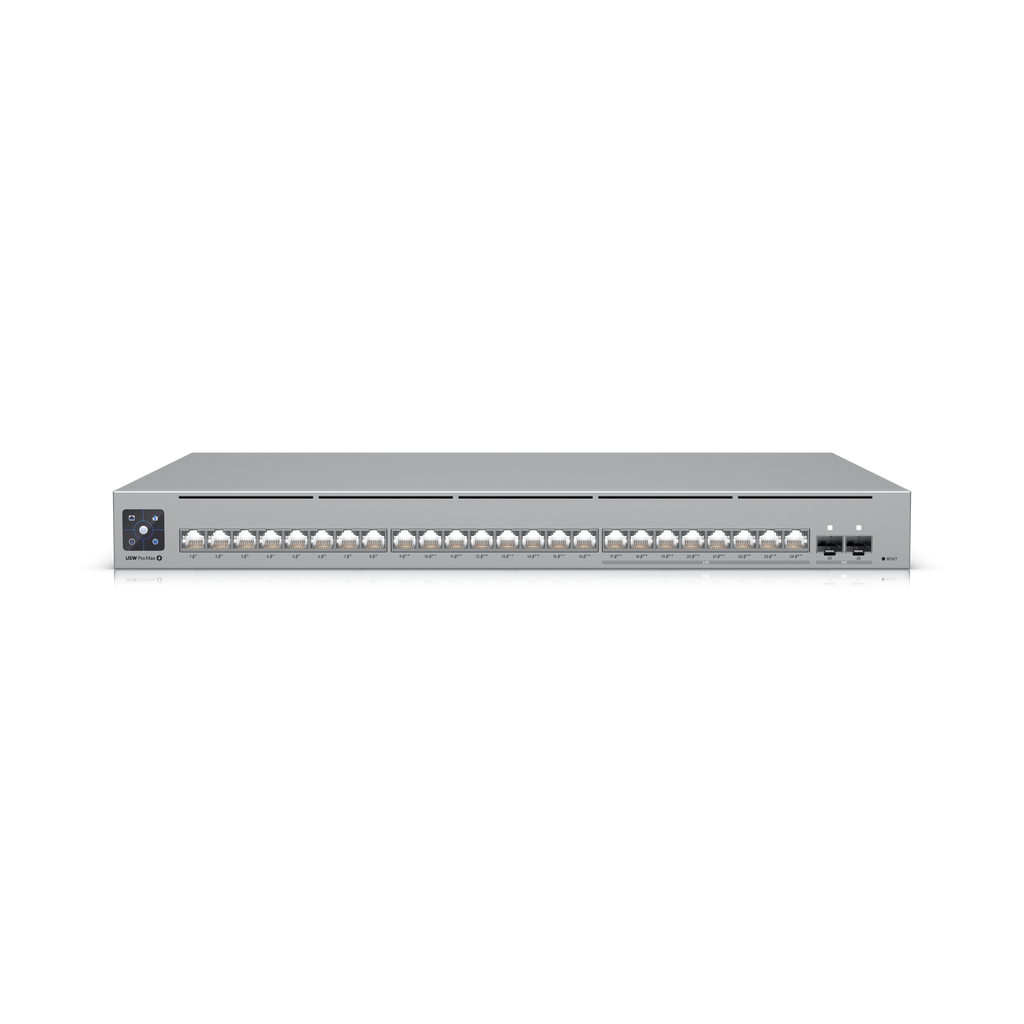

Switch Pro Max 24 PoE
USW-Pro-Max-24-PoE · US Version
A 24-port, Layer 3 Etherlighting™ switch capable of high-power PoE++ output.Key features Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network* (8) 2.5 GbE PoE++ ports (16)...

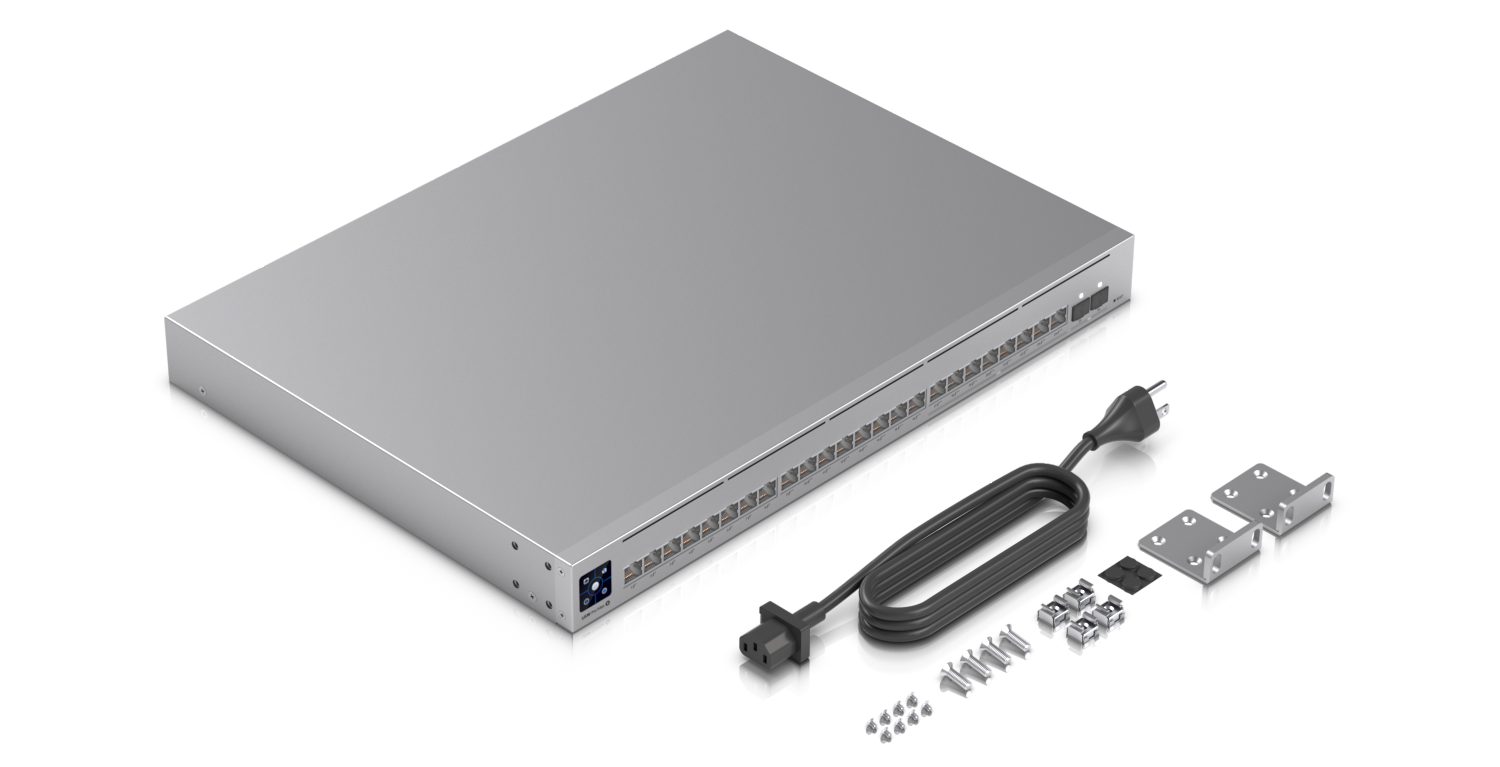

Or build it into a bundle — save up to 6% ↓What’s in the box
Everything that ships with your Switch Pro Max 24 PoE — straight from the manufacturer.
What it is, and who it is for.
Ready for the floor — the gear that runs a real business all day, every day.
How it compares
The honest cross-shop against the real alternatives — same job, no recurring license fees.
| Switch Pro Max 24 PoEUniFi · $999.00 | TP-Link Omada L2+ Managed~$200+ | Aruba Instant On 1960~$300+ | |
|---|---|---|---|
| Recurring license | None | None | None |
| Managed from | Same UniFi console as the whole network | Omada controller | Separate switch UI / cloud |
| Ecosystem integration | Topology, PoE & clients in one map | Omada only | Standalone |
| Vendor | Ubiquiti, US-based | TP-Link | HPE / Aruba, US-based |
| Price | $999.00 | ~$200+ | ~$300+ |
Managed switching that shows up in the same topology map as your gateway and APs — no extra license. See the full comparison →
Buy your Switch Pro Max 24 PoE here and a US-based team stands behind it — pre-sales design, setup guidance, and RMA help when you need it. Not a forum thread you hope someone answers. A real Giant in your corner.
Get a hand with your build →What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
A 24-port, Layer 3 Etherlighting™ switch capable of high-power PoE++ output.
Key features
Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
(8) 2.5 GbE PoE++ ports
(16) GbE ports including (8) PoE+ and (8) PoE++
(2) 10G SFP+ ports
DC power backup ready
400W total PoE availability
*Pair with UniFi Etherlighting Patch Cables for optimal brightness.
Specifications
Overview
| Dimensions | 442 x 325 x 44 mm (17.4 x 12.8 x 1.7") |
| 1 GbE RJ45 | 16 (8 PoE+; 8 PoE++) (1G/100M/10M) |
| 2.5 GbE RJ45 | 8 (All PoE++) (2.5G/1G/100M/10M) |
| 10G SFP+ | 2 (10G/1G) |
| Max. PoE Output | Up to PoE++ |
| Total PoE Availability | 400W |
| Redundancy | DC Power Backup With UniFi RPS |
| Form Factor | Rack mount (1U) |
Performance
| Switching Capacity | 112 Gbps |
| Total Non-Blocking Throughput | 56 Gbps |
| Forwarding Rate | 83 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| IPv4 Static Routes | 256 |
| Packet Buffer Size | 1.5 MB |
| IPv4 | 128 |
| MAC | 128 |
Hardware
| PoE+ | 8 |
| PoE++ | 16 |
| PoE | 15.4W |
| PoE+ | 32W |
| PoE++ | 64W |
| Max. Power Consumption | 50W (Excluding PoE Output) 450W (Including PoE Output) |
| Power Method | (1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 550W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet AR |
| Heat Dissipation | 119 BTU/hr (Excluding PoE Output) |
| Weight | Without mounting brackets: 5.1 kg (11.3 lb) With mounting brackets: 5.2 kg (11.5 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm (15.7-47.2") |
| LCM Display | 1.3" touchscreen |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 06374-24-08356 |
Software
| UniFi Network | Version 8.0.24 and later |
