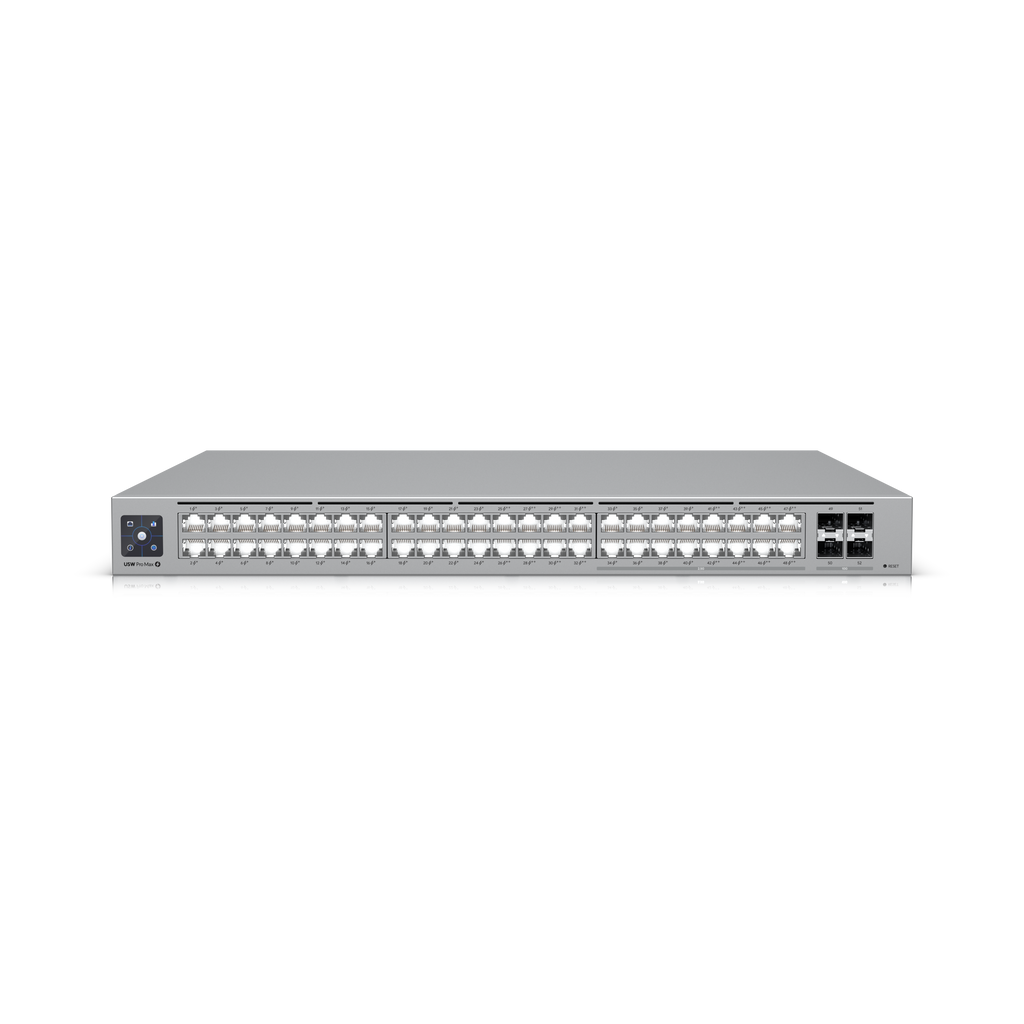

Switch Pro Max 48 PoE
USW-Pro-Max-48-PoE · US Version
A 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output.Key features Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network* (16) 2.5 GbE ports including...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
A 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output.
Key features
Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
(16) 2.5 GbE ports including (8) PoE+ and (8) PoE++
(32) GbE ports including (24) PoE+ and (8) PoE++
(4) 10G SFP+ ports
DC power backup ready
720W total PoE availability
*Pair with UniFi Etherlighting Patch Cables for optimal brightness.
Specifications
Overview
| Dimensions | 442.4 x 400 x 44 mm (17.4 x 15.7 x 1.7") |
| 1 GbE RJ45 | 32 (24 PoE+; 8 PoE++) (1G/100M/10M) |
| 2.5 GbE RJ45 | 16 (8 PoE+; 8 PoE++) (2.5G/1G/100M/10M) |
| 10G SFP+ | 4 (10G/1G) |
| Max. PoE Output | Up to PoE++ |
| Total PoE Availability | 720W |
| Redundancy | DC Power Backup With UniFi RPS |
| Form Factor | Rack mount (1U) |
Performance
| Switching Capacity | 224 Gbps |
| Total Non-Blocking Throughput | 112 Gbps |
| Forwarding Rate | 167 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| IPv4 Static Routes | 256 |
| Packet Buffer Size | 2 MB |
| IPv4 | 128 |
| MAC | 128 |
Hardware
| PoE+ | 32 |
| PoE++ | 16 |
| PoE | 15.4W |
| PoE+ | 32W |
| PoE++ | 64W |
| Max. Power Consumption | 100W (Excluding PoE Output) 820W (Including PoE Output) |
| Power Method | (1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 870W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet AR |
| Heat Dissipation | 341.2 BTU/hr (Excluding PoE Output) |
| Weight | Without mounting brackets: 6.2 kg (13.7 lb) With mounting brackets: 6.3 kg (13.9 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm (15.7-47.2") |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 16kV, contact: ± 12kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 06373-24-08356 |
Software
| UniFi Network | Version 8.0.24 and later |
Downloads & documents
Build around the Switch Pro Max 48 PoE.
It's already in your kit below. Add a gateway and PoE and the discount starts working. Discount tiers climb with the bundle — the bars fill as you build.
Type your address. We'll spec the building.
Square footage, floors, rooms, construction type — turned into an AP count, a switch size, and a gateway that fits. No guesswork, no overbuying.
Four quick questions size the kit. Property-records autofill is in the build phase.
Enter an address and the plan appears here —
property facts first, then the kit.
Pick the right one, not the biggest one
The honest line-up from switches. Most buyers reading this page should buy the middle column.
Switch Pro 48 PoE

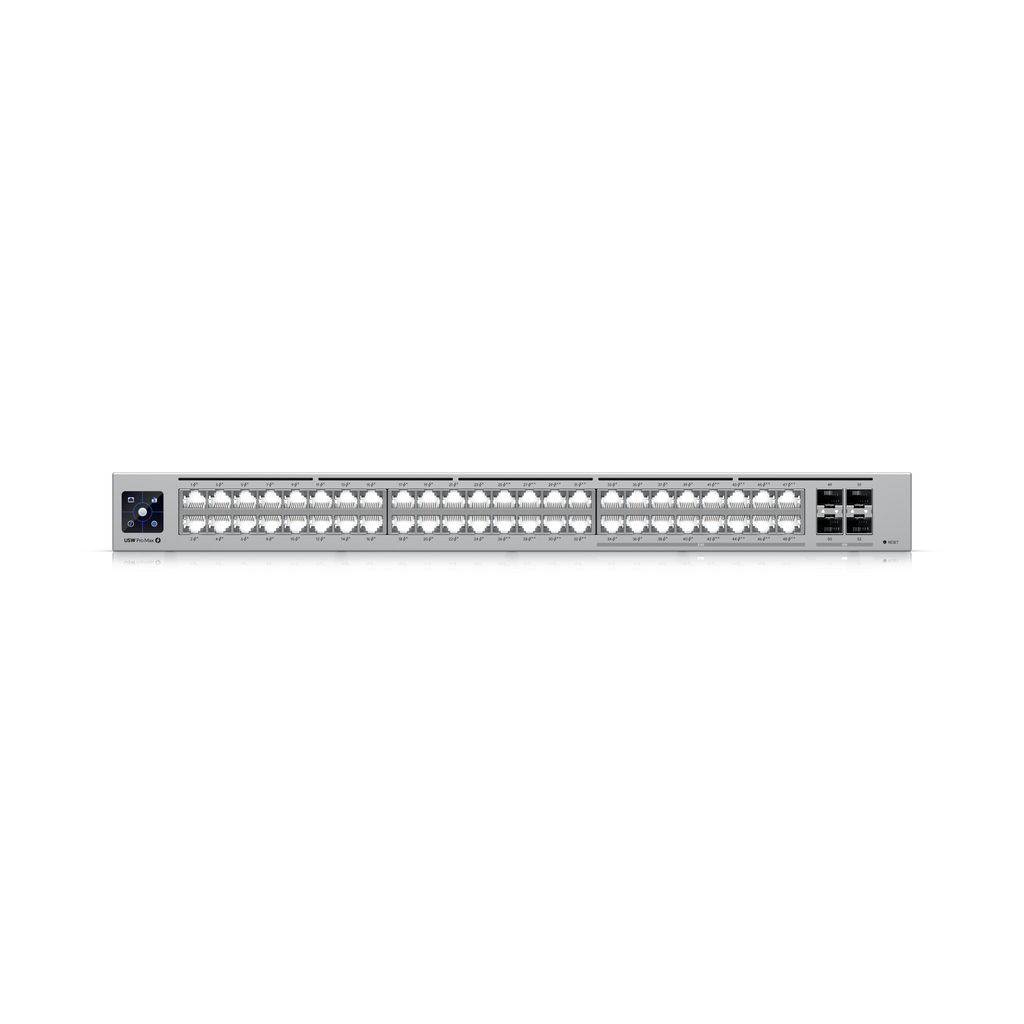

Switch Pro Max 48 PoE

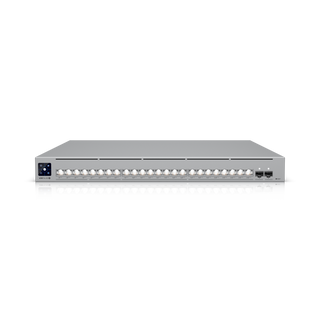

Switch Pro XG 24 PoEAsked before checkout
