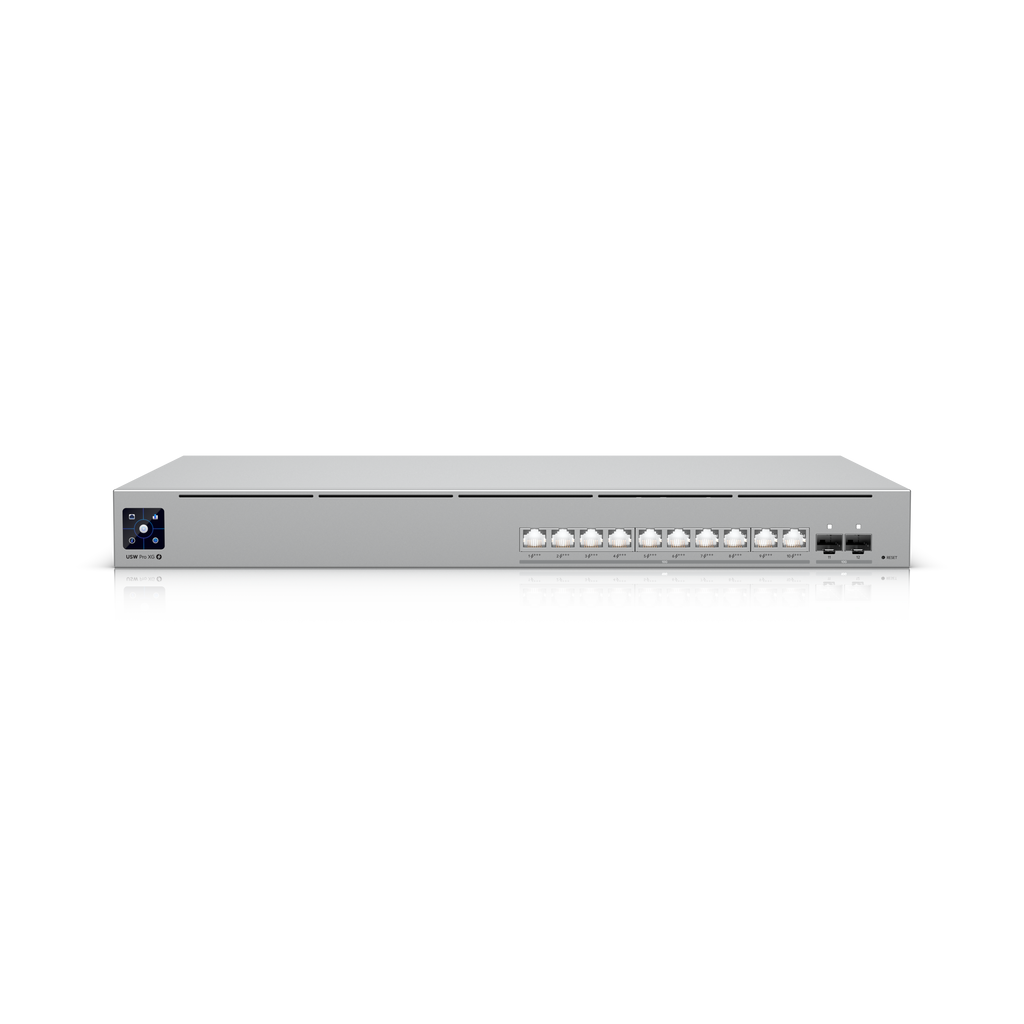

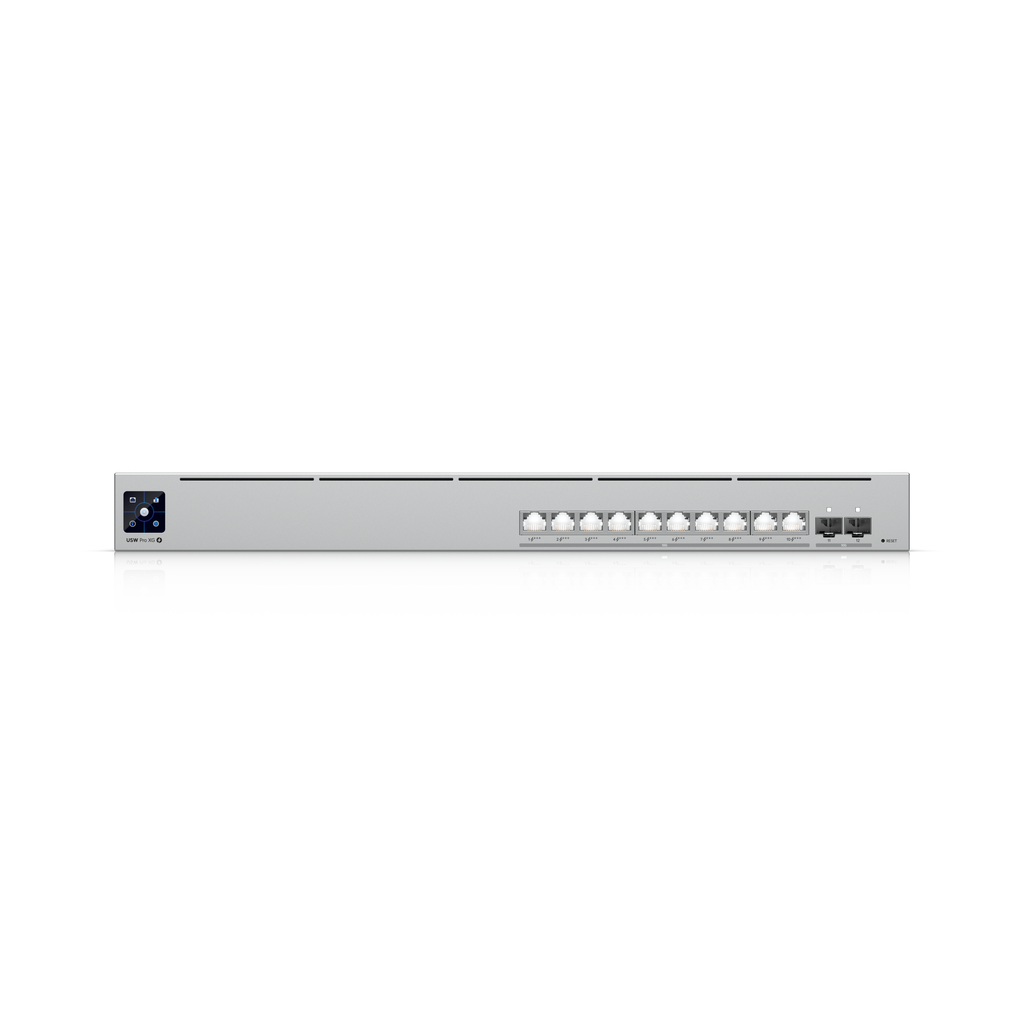

Switch Pro XG 10 PoE
USW-Pro-XG-10-PoE · US Version
1U, professional-grade 10-port, Layer 3 Etherlighting™ PoE+++ switch with (10) 10 GbE and (2) 10G SFP+ ports.Key features Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
1U, professional-grade 10-port, Layer 3 Etherlighting™ PoE+++ switch with (10) 10 GbE and (2) 10G SFP+ ports.
Key features
Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
(10) 10 GbE PoE+++ ports
(2) 10G SFP+ ports
DC power backup ready**
400W total PoE availability
*Pair with UniFi Enterprise Patch Cable for optimal brightness.
**Requires UniFi RPS.
Specifications
Overview
| Dimensions | 442.4 x 285 x 44 mm (17.4 x 11.2 x 1.7") |
| 10 GbE RJ45 | 10 (All PoE+++) (10G/5G/2.5G/1G/100M) |
| 10G SFP+ | 2 (10G/1G) |
| Max. PoE Output | Up to PoE+++ 802.3bt Type 4, Class 8 |
| Total PoE Availability | 400W |
| Redundancy | DC Power Backup With UniFi RPS |
| Form Factor | Rack mount (1U) |
Performance
| Switching Capacity | 240 Gbps |
| Total Non-Blocking Throughput | 120 Gbps |
| Forwarding Rate | 179 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| IPv4 Static Routes | 256 |
| Packet Buffer Size | 2 MB |
| IPv4 | 128 |
| MAC | 128 |
Hardware
| PoE+++ | 10 |
| PoE | 15.4W |
| PoE+ | 30W |
| PoE++ | 60W |
| PoE+++ | 90W |
| Max. Power Consumption | 65W (Excluding PoE output) 520W (Including PoE output) |
| Power Method | (1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 550W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet AR |
| Weight | Without mounting brackets: 4.6 kg (10.14 lb) With mounting brackets: 4.7 kg (10.36 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm (15.7-47.2"") |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 30kV, contact: ± 30kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 05660-25-08356 |
Software
| UniFi Network | Version 9.1.120 and later |
