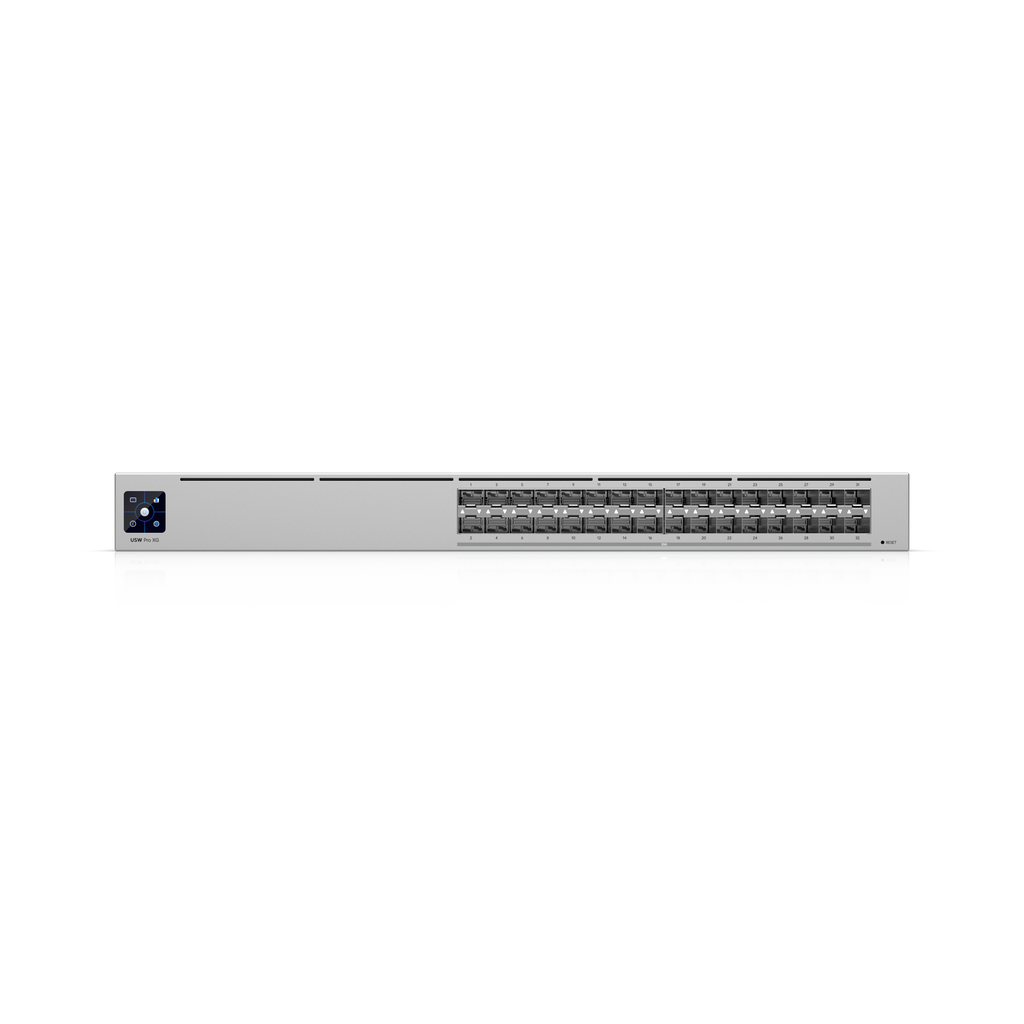

Switch Pro XG Aggregation
USW-Pro-XG-Aggregation · US Version
Professional-grade 32-port, Layer 3 Etherlighting™ switch for high-capacity 25G SFP28 connections.SpecificationsOverview Dimensions 442.4 x 43.7 x 480 mm (17.4 x 1.7 x 18.9") 25G SFP28 32 (25G/10G/1G) Redundancy DC Power...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Professional-grade 32-port, Layer 3 Etherlighting™ switch for high-capacity 25G SFP28 connections.
Specifications
Overview
| Dimensions | 442.4 x 43.7 x 480 mm (17.4 x 1.7 x 18.9") |
| 25G SFP28 | 32 (25G/10G/1G) |
| Redundancy | DC Power Backup With UniFi RPS |
| Form Factor | Rack Mount (1U) |
Performance
| Switching Capacity | 1.6 Tbps |
| Total Non-Blocking Throughput | 800 Gbps |
| Forwarding Rate | 1.2 Bpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| IPv4 Static Routes | 512 |
| Packet Buffer Size | 8 MB |
| IPv4 | 256 |
| MAC | 256 |
Hardware
| Max. Power Consumption | 200W |
| Power Method | (1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 200W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet AR |
| Heat Dissipation | 682 BTU/hr |
| Weight | Without mounting bracket: 7.1 kg (15.7 lbs) With mounting bracket:7.2 kg (15.9 lbs) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 482.6 mm (19") four-post racks Posts depths ranging from 600 to 1,066 mm (23.6-42”) |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 12kV, contact: ± 8kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 05977-25-08356 |
Downloads & documents
