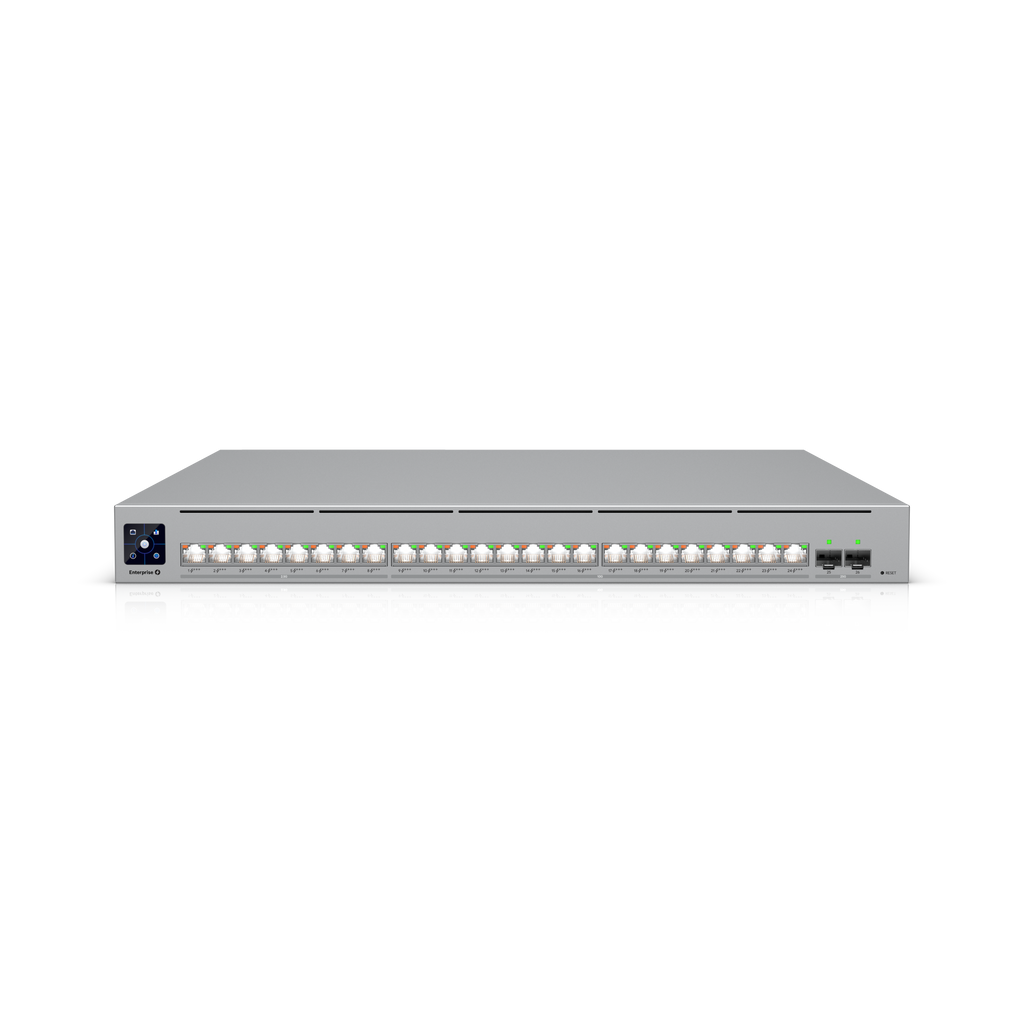

Switch Enterprise Campus 24 PoE
ECS-24-PoE
Enterprise-grade 24-port, Layer 3 Etherlighting™ PoE+++ switch with high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design.Note. Recommend being paired with Enterprise Campus Aggregation.Requires a 4-post...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Enterprise-grade 24-port, Layer 3 Etherlighting™ PoE+++ switch with high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design.
Note. Recommend being paired with Enterprise Campus Aggregation.
Requires a 4-post rack, or a center-mount bracket or cantilever shelf on 2-post racks for optimal support.
Key features
Specifications
Overview
| Dimensions | 442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5") |
| 2.5 GbE RJ45 | 8 (All PoE+++) (2.5G/1G/100M/10M) 10/100M half-duplex not supported |
| 10 GbE RJ45 | 16 (All PoE+++) (10G/5G/2.5G/1G/100M/10M) 10/100M half-duplex not supported |
| 25G SFP28 | 2 (25G/10G/1G) |
| Max. PoE Output | Up to PoE+++ 802.3bt Type 4, Class 8 |
| Total PoE Availability | 100-240V AC Shared Mode: 1,050W with (2) 600W modules 100-240V AC Redundant Mode: 450W with (2) 600W modules 200-240V AC Shared Mode: 2,250W with (2) 1,200W modules 100-120V AC Shared Mode: 1,850W with (2) 1,200W modules 200-240V AC Redundant Mode: 1,050W with (2) 1,200W modules 100-120V AC Redundant Mode: 850W with (2) 1,200W modules 1,200W modules sold separately |
| Redundancy | (2) Hot-Swappable PSUs (4) Hot-Swappable Fans |
| Form Factor | Rack Mount (1U, Full-Depth) Requires a 4-post rack, or a center-mount bracket or cantilever shelf on 2-post racks for optimal support |
Performance
| Switching Capacity | 460 Gbps |
| Total Non-Blocking Throughput | 230 Gbps |
| Forwarding Rate | 342 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| IPv4 Static Routes | 512 |
| Packet Buffer Size | 8 MB |
| IPv4 | 256 |
| MAC | 256 |
Hardware
| PoE+++ | 24 |
| PoE | 15.4W |
| PoE+ | 30W |
| PoE++ | 60W |
| PoE+++ | 90W |
| Max. Power Consumption | 150W (Excluding PoE Output) 2,400W (Including PoE Output) |
| Power Method | (2) Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method | (2) AC input, Hot-swappable power modules |
| Power Supply | (2) Hot-swappable AC/DC 600W power modules |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet AR |
| Heat Dissipation | 444 BTU/hr (Excluding PoE Output) |
| Weight | Without mounting brackets: 9.46 kg (20.9 lb) With mounting brackets: 9.56 kg (21.1 lb) |
| Enclosure Material | SGCC steel |
| Supported Rack Depth | 482.6 mm (19") four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”) |
| LCM Display | 1.3" touchscreen |
| Fan Method | (4) hot-swappable fan modules Fan modules operate with 3 + 1 redundancy |
| ESD Protection | Air: ± 30kV, contact: ± 30kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 06181-25-08356 |
Software
| UniFi Network | Version 9.0.114 and later |
Downloads & documents
Build around the Switch Enterprise Campus 24 PoE.
It's already in your kit below. Add a gateway and PoE and the discount starts working. Discount tiers climb with the bundle — the bars fill as you build.
Type your address. We'll spec the building.
Square footage, floors, rooms, construction type — turned into an AP count, a switch size, and a gateway that fits. No guesswork, no overbuying.
Four quick questions size the kit. Property-records autofill is in the build phase.
Enter an address and the plan appears here —
property facts first, then the kit.
Pick the right one, not the biggest one
The honest line-up from switches. Most buyers reading this page should buy the middle column.

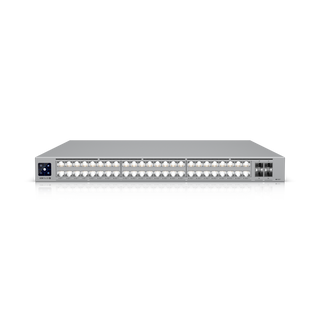

Switch Pro XG 48 PoE
