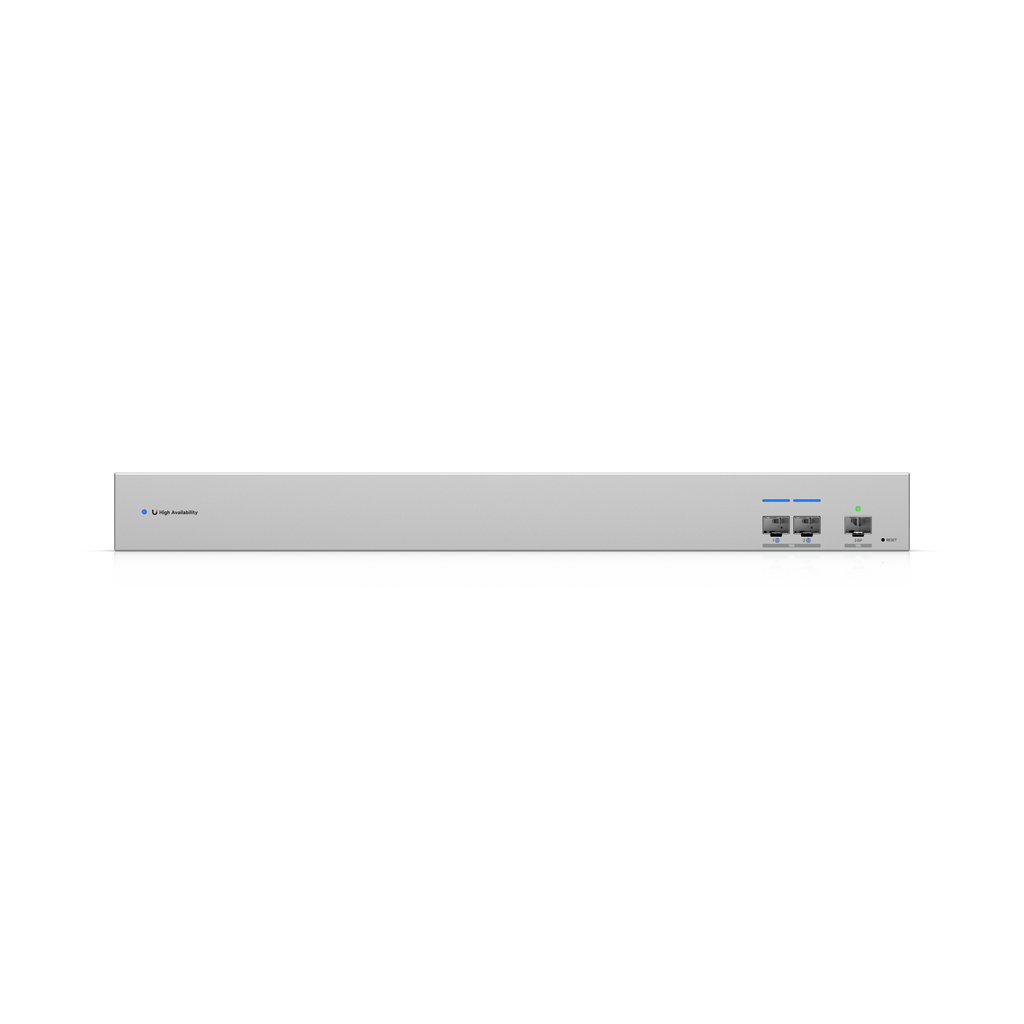

UniFi WAN Switch
USW-WAN
10G SFP+ WAN Switch linking two Shadow Mode High Availability UniFi Gateways to a single ISP.Note. Use an additional USW-WAN switch for deployments with multiple ISPs.Key features Combine with Shadow...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
10G SFP+ WAN Switch linking two Shadow Mode High Availability UniFi Gateways to a single ISP.
Note. Use an additional USW-WAN switch for deployments with multiple ISPs.
Key features
Combine with Shadow Mode High Availability to ensure uninterrupted connectivity
(1) 10G SFP+ ISP uplink and (2) 10G SFP+ downlink ports
(2) AC inputs for power redundancy
(1) GbE port for management with UniFi Network
*Use an additional USW-WAN switch for ISP failover deployments.
Specifications
Overview
| Dimensions | 442.4 x 120 x 43.7 mm (17.4 x 4.72 x 1.7") |
| 1 GbE RJ45 | 1 (1G/100M/10M) |
| 10G SFP+ | 3 (10G/1G) |
| Redundancy | (2) AC inputs |
| Form Factor | Rack mount (1U) |
Performance
| Switching Capacity | 20 Gbps |
| Total Non-Blocking Throughput | 10 Gbps |
| Forwarding Rate | 15 Mpps |
Hardware
| Max. Power Consumption | 13W |
| Power Method | (2) Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method | AC input |
| Power Supply | (2) AC/DC, internal, 36W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet |
| Weight | Without mounting brackets: 2.2 kg (4.85 lb) With mounting brackets: 2.3 kg (5.1 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| ESD Protection | Air: ± 16kV, contact: ± 22kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 03715-25-08356 |
Software
| UniFi Network | Version 9.1.119 and later |
