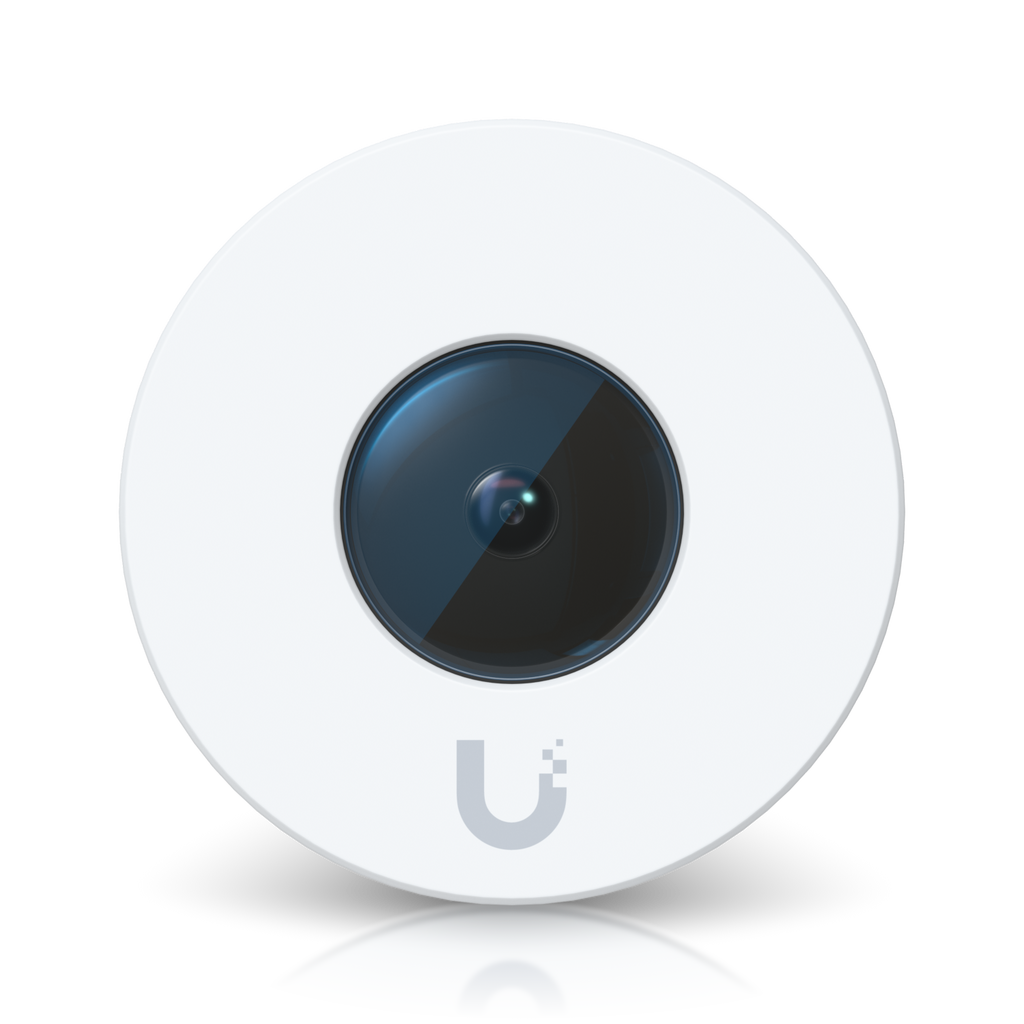

AI Theta 360 Lens
UVC-AI-Theta-Lens-360
Ultra-wide 360° view lens that connects to an AI Theta Hub.Key features 4K (9MP) resolution with ultra-wide 360° view Ideal for panoramic coverage of large, busy spaces such as entrances,...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Ultra-wide 360° view lens that connects to an AI Theta Hub.
Key features
4K (9MP) resolution with ultra-wide 360° view
Ideal for panoramic coverage of large, busy spaces such as entrances, lobbies, and retail floors
Includes Standard Flush Mount for flat ceiling or wall mounting
Specifications
Overview
| Dimensions | ⌀22.8. x 43.5 mm (⌀0.9 x 1.7”) |
| Field of View | H: 180°, V: 180°, D: 180° |
| Resolution | 4K |
| Mounting | Wall, ceiling mount (Included) Angle mount (Optional) |
| Operating Environment | Indoor only |
Performance
| Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| Max. Frame Rate | 20 FPS |
| Resolution | 4MP 2560 x 2560 (1:1) |
| Sensor | 12MP CMOS |
| Lens | Fixed focal length |
Hardware
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mounting Material | Polycarbonate |
| Weight | 15 g (0.5 oz) |
| Power Method | Theta proprietary |
| Power Supply | 5V DC, 0.5A |
| Max. Power Consumption | 2.5W |
| Ambient Operating Temperature | -20 to 40° C (-4 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
