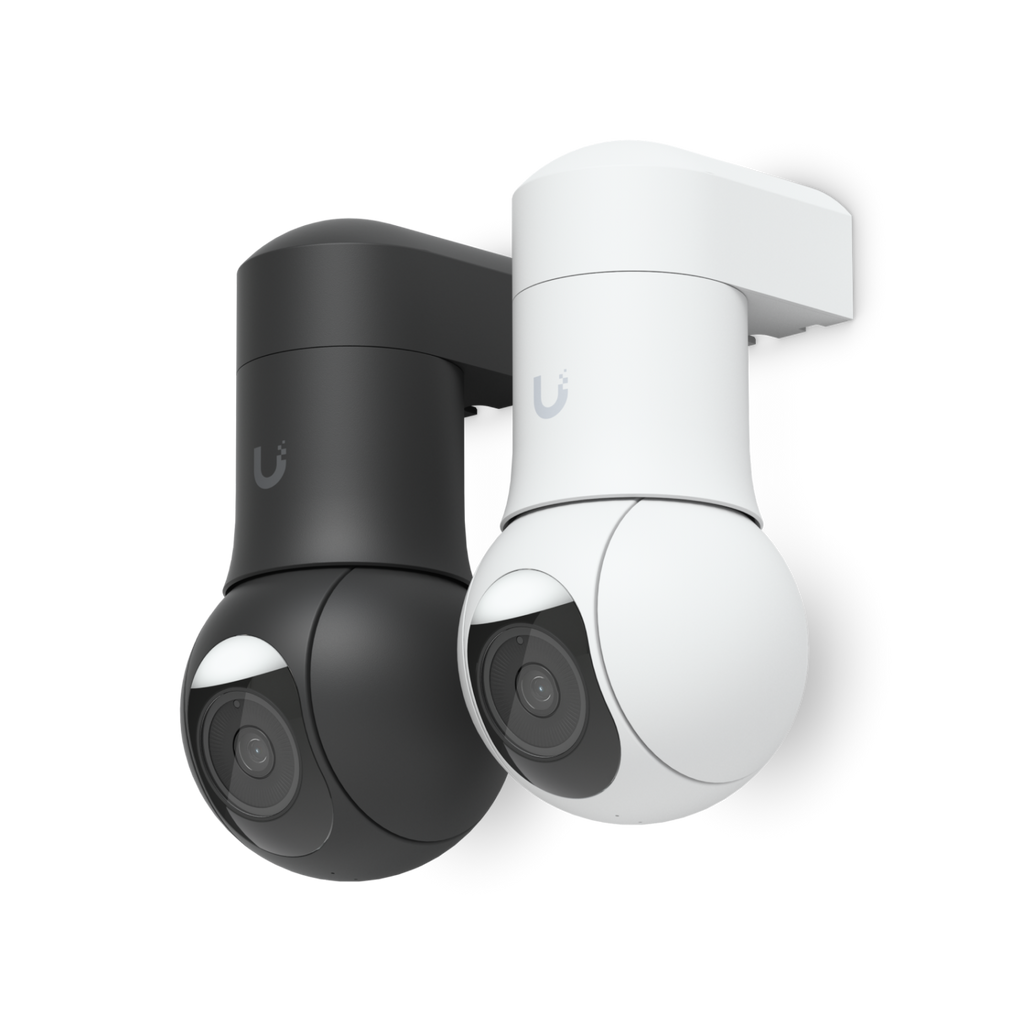

Camera G5 PTZ
UVC-G5-PTZ-B · Black
Compact, all-weather camera with ultra-low latency pan-tilt-zoom control and versatile mounting options.Key features 2K (4MP) video resolution 2x optical zoom 20 m (65 ft) IR night vision AI event detections...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Compact, all-weather camera with ultra-low latency pan-tilt-zoom control and versatile mounting options.
Key features
2K (4MP) video resolution
2x optical zoom
20 m (65 ft) IR night vision
AI event detections and automatic person tracking
Record audio with an integrated microphone
Integrated LED spotlight for color night vision
Connect and power using PoE+
Weatherproof (outdoor exposed)
Specifications
Overview
| Dimensions | Without mount: ⌀90 x 152.5 mm (⌀3.5 x 6") With mount: 90 x 94 x 179.5 mm (3.5 x 3.7 x 7") |
| IR Night Vision | 20 m (65 ft) |
| Zoom Mode | 2x Optical |
| Resolution | 2K |
| Field of View | Wide: H: 99.7°, V: 51.9°, D: 121° Tele: H: 45.5°, V: 25.4°, D: 52.4° |
| Pan-Tilt Range | Pan: 350° Tilt: 100° |
| Audio | Microphone |
| Weatherproofing | IP66 |
| Tamper Resistance | IK04 |
| Mounting | Wall mount, pole mount (Included) Conduit adapter, surface, in-ceiling, pendant, corner mount (Optional) |
| UniFi Application Suite | Protect |
Performance
| Networking Interface | 10/100 MbE RJ45 port |
| Max. Frame Rate | 30 FPS |
| Resolution | 4MP 2688 x 1512 (16:9) |
| Sensor | 5MP 1/2.7" CMOS |
| Lens | F 3.42–6.85 mm; ƒ/1.85–ƒ/2.4 |
| Night Mode | Built-in IR & white LED illumination with IR cut filter |
Hardware
| Max. Power Consumption | 14W |
| Supported Voltage Range | 37—57V DC |
| Power Method | PoE+ |
| Pole Mount Diameter | 1.5–2" (38–50 mm) |
| Weight | Without mount: 580 g (1.3 lb) With mount: 650 g (1.4 lb) |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mount Material | Wall mount: polycarbonate Pole mount: aluminum alloy |
| Button | (1) Factory reset |
| Ambient Operating Temperature | -30 to 45º C (-22 to 113º F) |
| Ambient Operating Humidity | 0 to 90% noncondensing |
| Certifications | CE, FCC, IC |
