Camera G6 180
UVC-G6-180-B · Black
Indoor/outdoor dual sensor 16MP 20 FPS PoE+ camera, with a Multi-TOPS AI Engine and panoramic 180° coverage.SpecificationsOverview Dimensions 136 x 64 x 92 mm (5.6 x 2.5 x 3.6") IR...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Indoor/outdoor dual sensor 16MP 20 FPS PoE+ camera, with a Multi-TOPS AI Engine and panoramic 180° coverage.
Specifications
Overview
| Dimensions | 136 x 64 x 92 mm (5.6 x 2.5 x 3.6") |
| IR Night Vision | 20 m (65 ft) |
| Resolution | Dual 4K |
| Field of View | H: 180°, V: 56.7° |
| Audio | Two-way audio |
| Weatherproofing | IP66 |
| Tamper Resistance | IK04 |

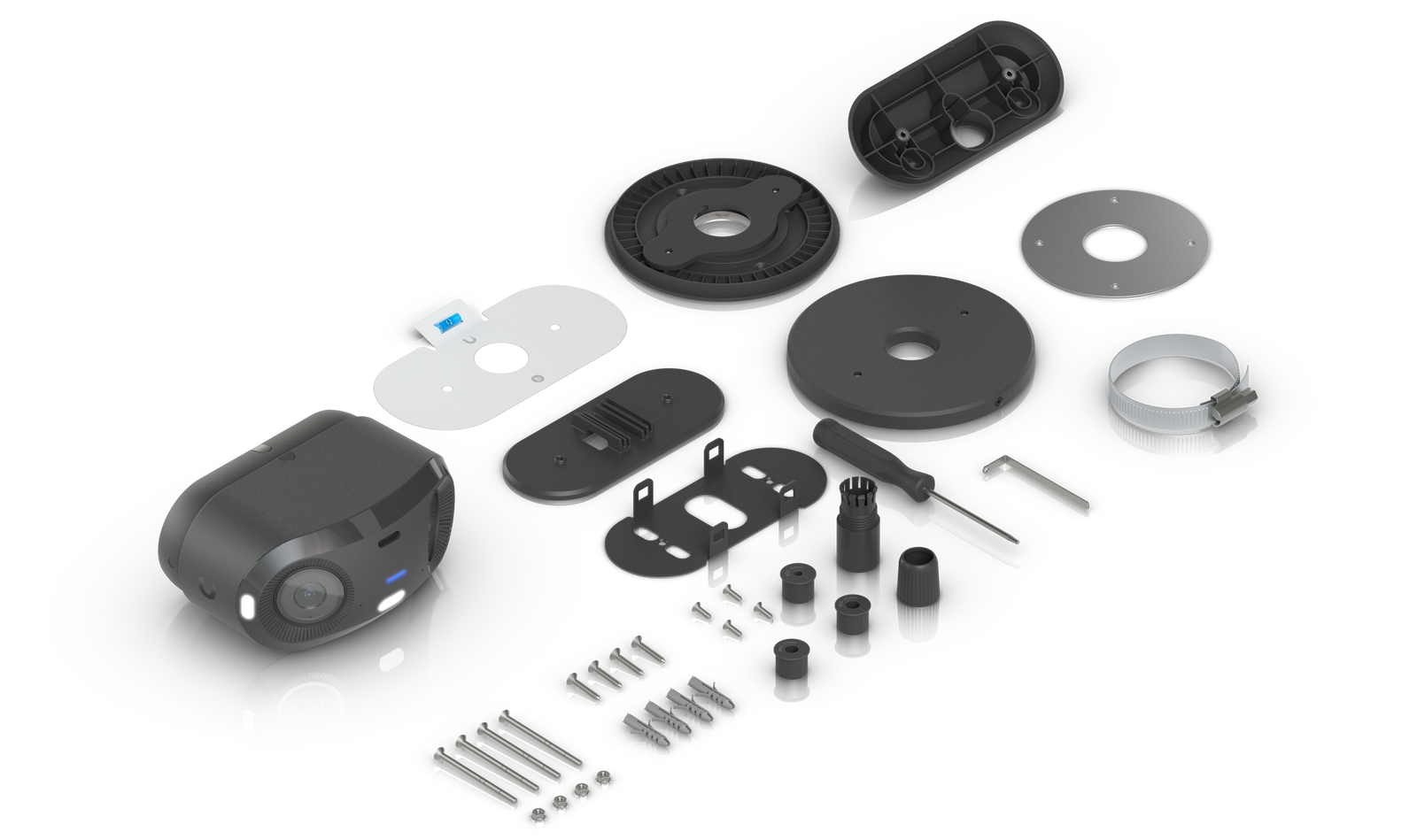

| Mounting | Ceiling, Pole, Wedge Mount, Pan Adapter (Included) Camera Junction Box, Arm mount, Dual Mount, Gang Box Mounting Plate (Optional) |
| UniFi Application Suite | Protect |
Performance
| Networking Interface | 10/100 MbE RJ45 port |
| Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR |
| Max. Frame Rate | 20 FPS |
| Resolution | 16MP 7680 x 2160 (3.5:1) |
| Sensor | Dual 1/1.8" 8MP |
| Lens | (2) Fixed focal length |
| Night Mode | Built-in IR LED illumination and IR cut filter |
Hardware
| Max. Power Consumption | 15W |
| Supported Voltage Range | 37—57V DC |
| Power Method | PoE+ |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Weight | 839 g (1.8 lb) |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mount Material | Polycarbonate, stainless steel |
| Expansion Slot | MicroSD card |
| Button | (1) Factory reset |
| Ambient Operating Temperature | -20 to 50º C (-4 to 122º F) |
| Ambient Operating Humidity | 0 to 90% noncondensing |
| Certifications | CE, FCC, IC |
