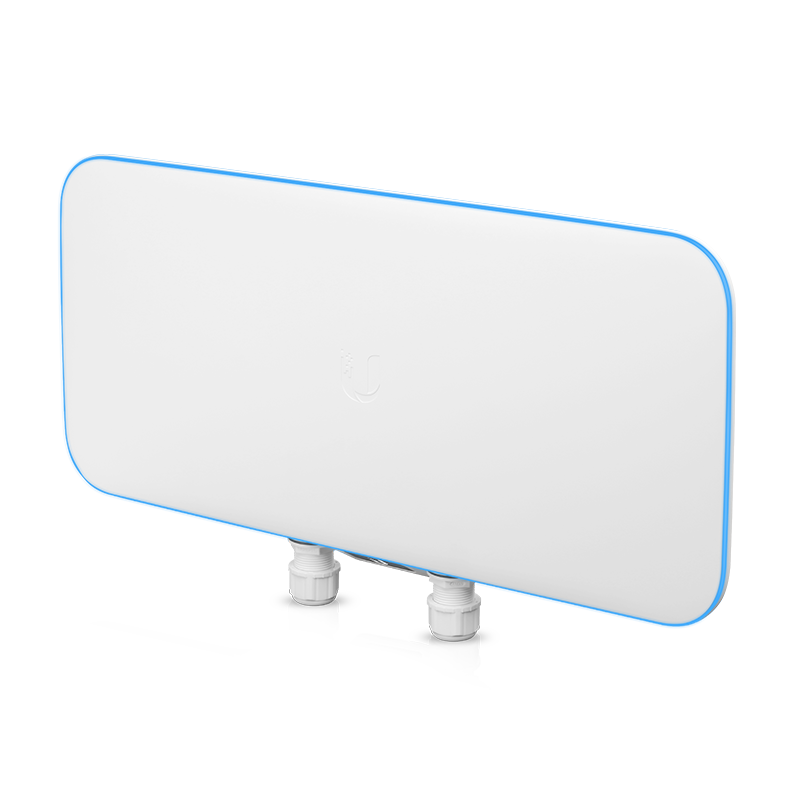

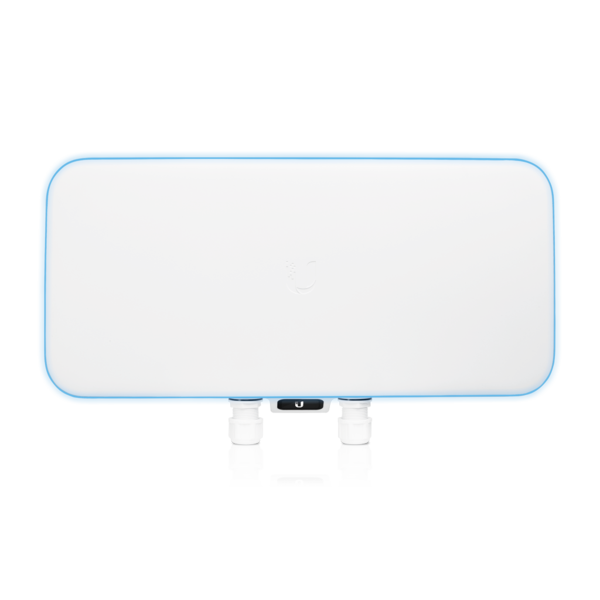

WiFi BaseStation XG
UWB-XG-US
Tri-radio WiFi 5 AP with 12 spatial streams and a selectable beamforming antenna, designed for high-density applications at large venues.Key features WiFi 5 (5 GHz only) 12 spatial streams 465+...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Tri-radio WiFi 5 AP with 12 spatial streams and a selectable beamforming antenna, designed for high-density applications at large venues.
Key features
WiFi 5 (5 GHz only)
12 spatial streams
465+ m² (5,000+ ft²) open space coverage
1,500+ connected devices
Powered using PoE++
(1) GbE and (1) 10 GbE uplink
Versatile wall and pole mounting
Phased array antenna system with software-adjustable coverage (50° or 90°)
Weatherproof (outdoor exposed)
Specifications
Overview
| Dimensions | 471.1 x 257.5 x 94.3 mm (18.6 x 10.1 x 3.7") |
| WiFi Standard | WiFi 5 |
| Spatial Streams | 12 |
| Coverage Area | 465 m² (5,000 ft²) |
| Max. Client Count | 1500+ |
| Uplink | 10 GbE ICM Ethernet port |
| Mounting | Wall, Pole (Mounts Included), VESA (Optional) |
| Weatherproofing | IP67 |
| Power Method | PoE++ |
Performance
| 5 GHz | Low Band: 4 x 4 (DL MU-MIMO) Vertical Band: 4 x 4 (DL MU-MIMO) High Band: 4 x 4 (DL MU-MIMO) |
| 5 GHz | Low Band: 1.7 Gbps (BW80) Vertical Band: 1.7 Gbps (BW80) High Band: 1.7 Gbps (BW80) |
| 5 GHz | Directional internal: 15 dBi, 50° x 50° Directional internal: 10 dBi, 90° x 90° |
| 5 GHz | 25 dBm |
| Max. BSSIDs | 8 per Radio |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80) |
| 802.11n | 6.5 Mbps to 600 Mbps (MCS0 - MCS23, HT 20/40) |
Hardware
| Max. Power Consumption | 31W |
| Supported Voltage Range | 44–57V DC |
| Networking Interface | (1) GbE RJ45 port (1) 1/10 GbE ICM Ethernet port |
| Weight | 3.2 kg (7.1 lb) |
| Pole Mount Diameter | 1~3" (25~76 mm) |
| Antennas | (1) Integrated dual-mode antenna array |
| Management | Ethernet Bluetooth |
| Enclosure Material | Polycarbonate, aluminum alloy |
| System | R/G/B |
| Channel Bandwidth | HT 20/40, VHT 20/40/80, HE 20/40/80 (MHz) |
| Certifications | CE, FCC, IC, Anatel: 08960-24-08356 |
| Operating Frequency | US/CA: U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5670 MHz U-NII-3: 5725 - 5850 MHz Worldwide: 5150 - 5250 MHz 5250 - 5350 MHz 5470 - 5670 MHz For worldwide, it depends on the regulatory region |
| Ambient Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
Software
| UniFi Network | Version 6.0.45 and later |
