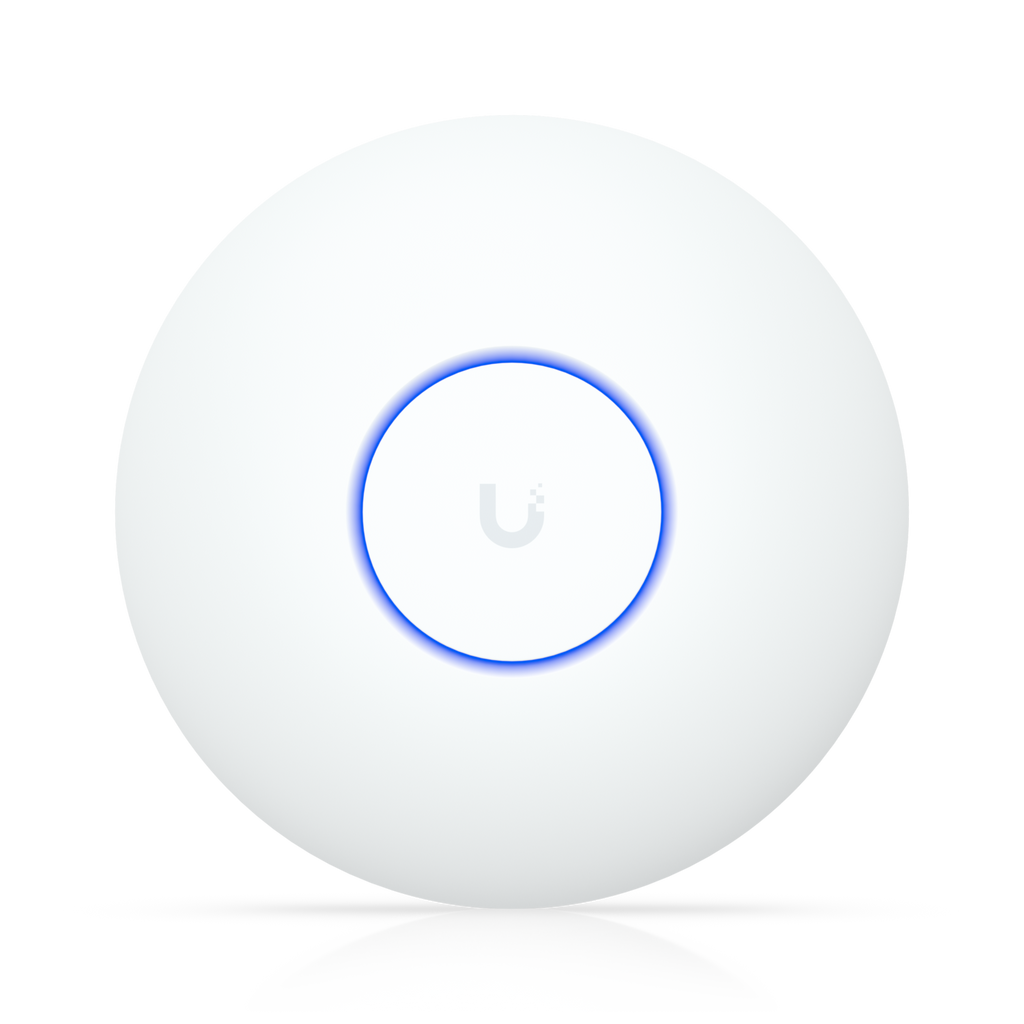

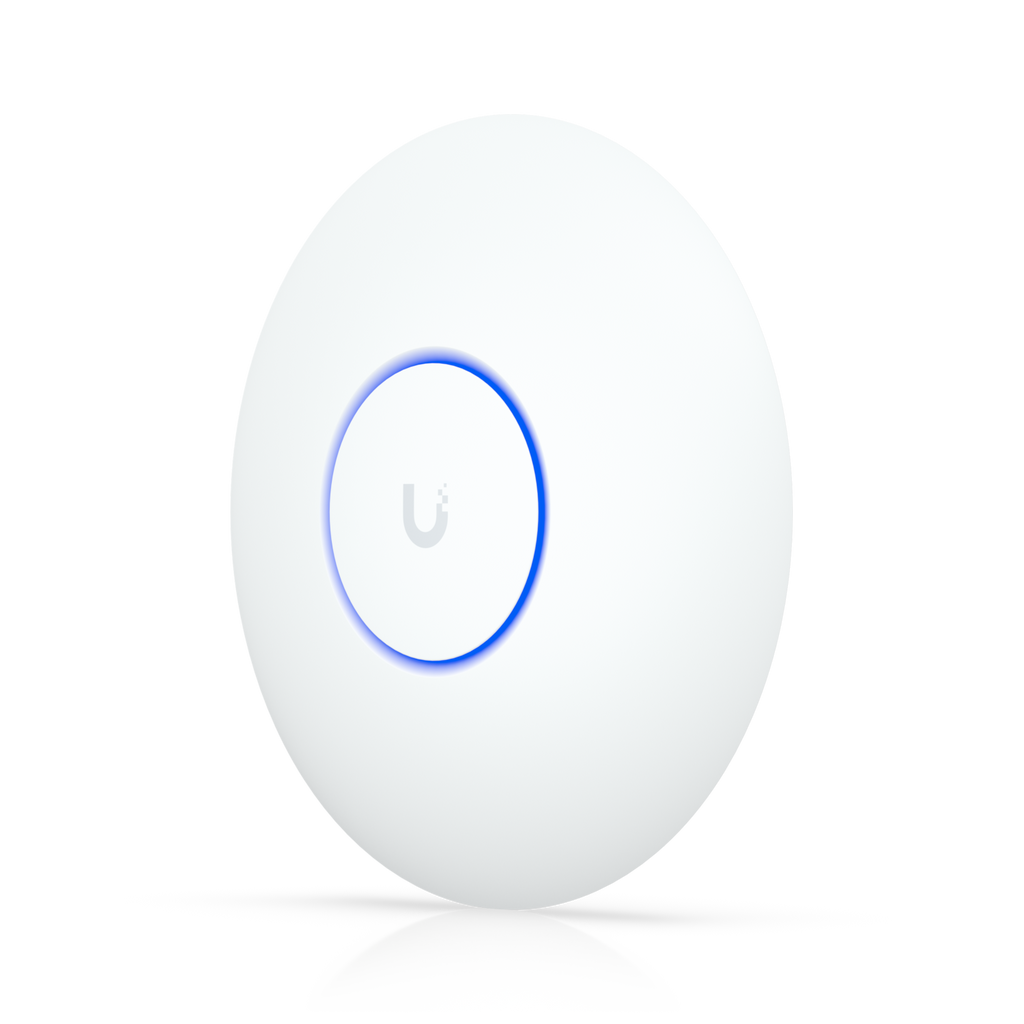

Access Point U7 Lite
U7-Lite-US
Compact, ceiling-mounted WiFi 7 AP with 4 spatial streams and 2.5 GbE uplink.Key features WiFi 7 4 spatial streams 115 m² (1,250 ft²) coverage 200+ connected devices Powered using PoE...

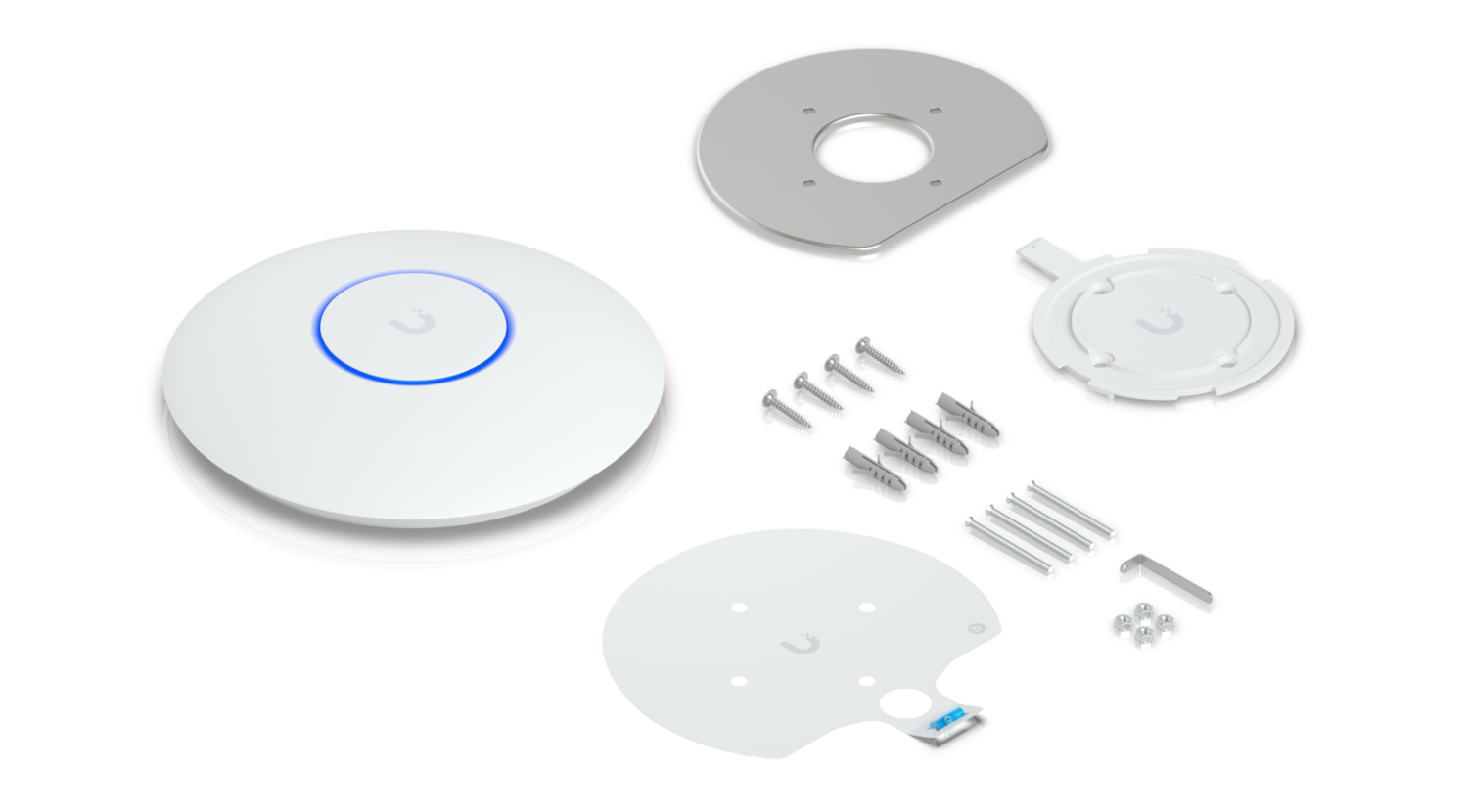

Or build it into a bundle — save up to 6% ↓What’s in the box
Everything that ships with your Access Point U7 Lite — straight from the manufacturer.
What it is, and who it is for.
Built for the home — serious networking that disappears into the walls, no IT department required.
How it compares
The honest cross-shop against the real alternatives — same job, no recurring license fees.
| Access Point U7 LiteUniFi · $125.00 | TP-Link Omada EAP772 (Wi-Fi 7)~$200 | Aruba Instant On AP25~$230 | |
|---|---|---|---|
| Wi-Fi standard | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 6/6E — no Wi-Fi 7 in SMB line |
| Recurring license | None | None | None |
| Ecosystem | One console with gateway, switching, cameras | Omada network only | Wi-Fi + switching only |
| Vendor | Ubiquiti, US-based | TP-Link | HPE / Aruba, US-based |
| Price | $125.00 | ~$200 | ~$230 |
Same AP class, no per-device licensing, and it joins a network you can grow into. See the full comparison →
Buy your Access Point U7 Lite here and a US-based team stands behind it — pre-sales design, setup guidance, and RMA help when you need it. Not a forum thread you hope someone answers. A real Giant in your corner.
Get a hand with your build →What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Compact, ceiling-mounted WiFi 7 AP with 4 spatial streams and 2.5 GbE uplink.
Key features
WiFi 7
4 spatial streams
115 m² (1,250 ft²) coverage
200+ connected devices
Powered using PoE
2.5 GbE uplink
Specifications
Overview
| Dimensions | ⌀171.5 x 33 mm (⌀6.8 x 1.3") |
| WiFi Standard | WIFi 7 |
| Spatial Streams | 4 |
| Coverage Area | 115 m² (1,250 ft²) |
| Max. Client Count | 200+ |
| Uplink | 2.5 GbE |
| Mounting | Ceiling, Wall (Lite Mount Included) |
| Power Method | PoE |
Performance
| 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 5 GHz | 4.3 Gbps (BW240) Depends on regulatory region |
| 2.4 GHz | 688 Mbps (BW40) |
| 5 GHz | 5 dBi |
| 2.4 GHz | 4 dBi |
| 5 GHz | 24 dBm |
| 2.4 GHz | 23 dBm |
| Max. BSSIDs | 8 per Radio |
| 802.11be (WiFi 7) | 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240) Depends on regulatory region |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
Hardware
| Max. Power Consumption | 13W |
| Supported Voltage Range | 42.5–57V DC |
| Networking Interface | (1) 2.5 GbE RJ45 port |
| Weight | 313 g (11 oz) |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate |
| Mount Material | UV-stabilized polycarbonate, galvanized steel (SGCC) |
| System | White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz) |
| Certifications | CE, FCC, IC, SRRC, Anatel: 02143-25-08356 |
| Ambient Operating Temperature | -30 to 40° C (-22 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
Software
| UniFi Network | Version 9.0.114 and later |
| Mobile App | iOS™ version 10.20.2 and later Android™ version 10.21.7 and later |
Downloads & documents
Build around the Access Point U7 Lite.
It's already in your kit below. Add a gateway and PoE and the discount starts working. Discount tiers climb with the bundle — the Giant fills as you build.
Type your address. We'll spec the building.
Square footage, floors, rooms, construction type — turned into an AP count, a switch size, and a gateway that fits. No guesswork, no overbuying.
Start typing your address — we pull the property's square footage and floors, then size the kit. Adjust anything before you build.
Enter an address and the plan appears here —
property facts first, then the kit.
Pick the right one, not the biggest one
The honest line-up from commercial. Most buyers reading this page should buy the middle column.
Doorbell Lite
Access Point U7 Lite
Camera G5 FlexAsked before checkout
The questions our support inbox actually gets.
Does it ship the same day?+
Orders placed before 2 PM ET on a business day leave the same day from our bench in Altamonte Springs, FL. Tracking is emailed the moment the label prints.
What if it's the wrong size for my building?+
Return it. 30 days, no restocking fee, refund to the original payment method. Better: send us your floor plan first and we'll size the kit for free — half of all returns are sizing problems.
Who handles the warranty?+
We do. Everything carries the manufacturer's warranty and we run the claim for you — one email to us instead of a ticket queue overseas.
How does the bundle discount work?+
Add items to a kit in the bundle builder: 2+ items saves 5%, 3+ saves 8%, 4+ saves 12%, and 5+ saves 15% off the whole kit.
