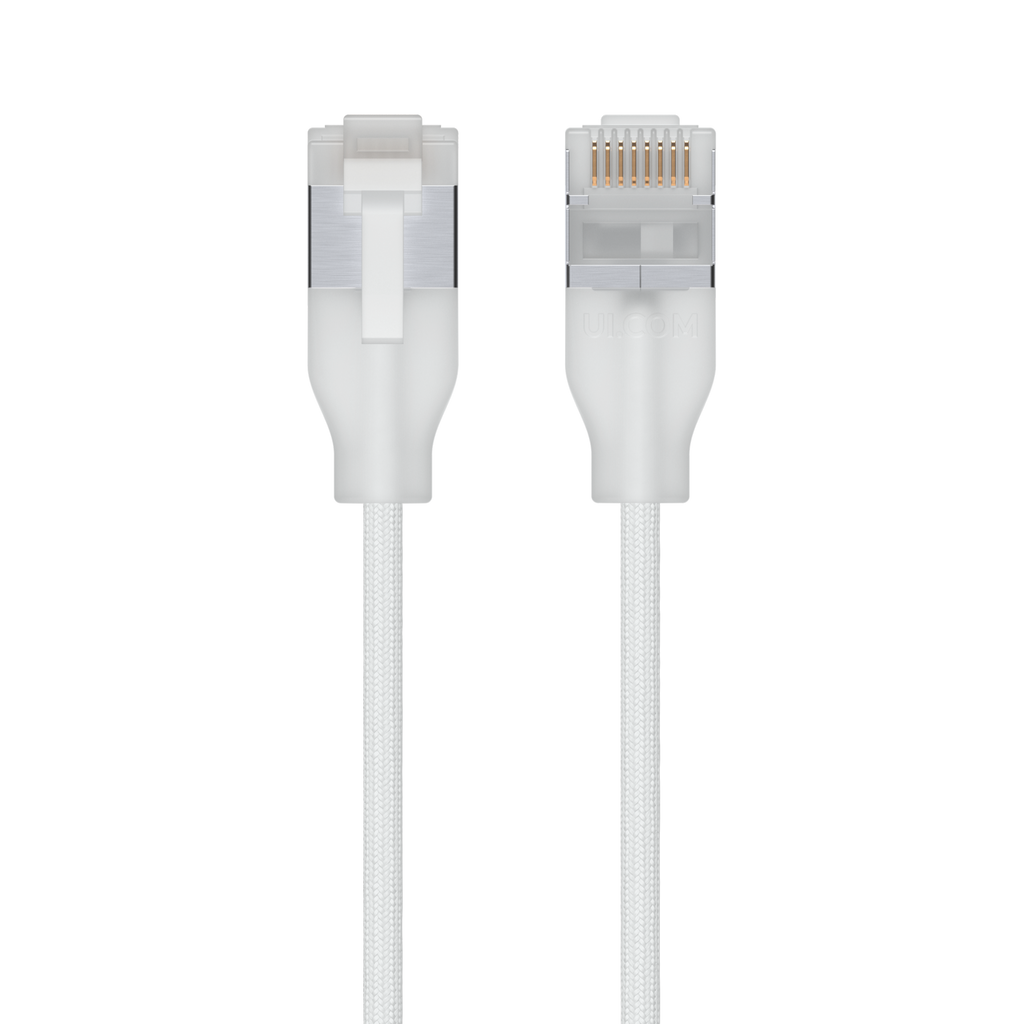

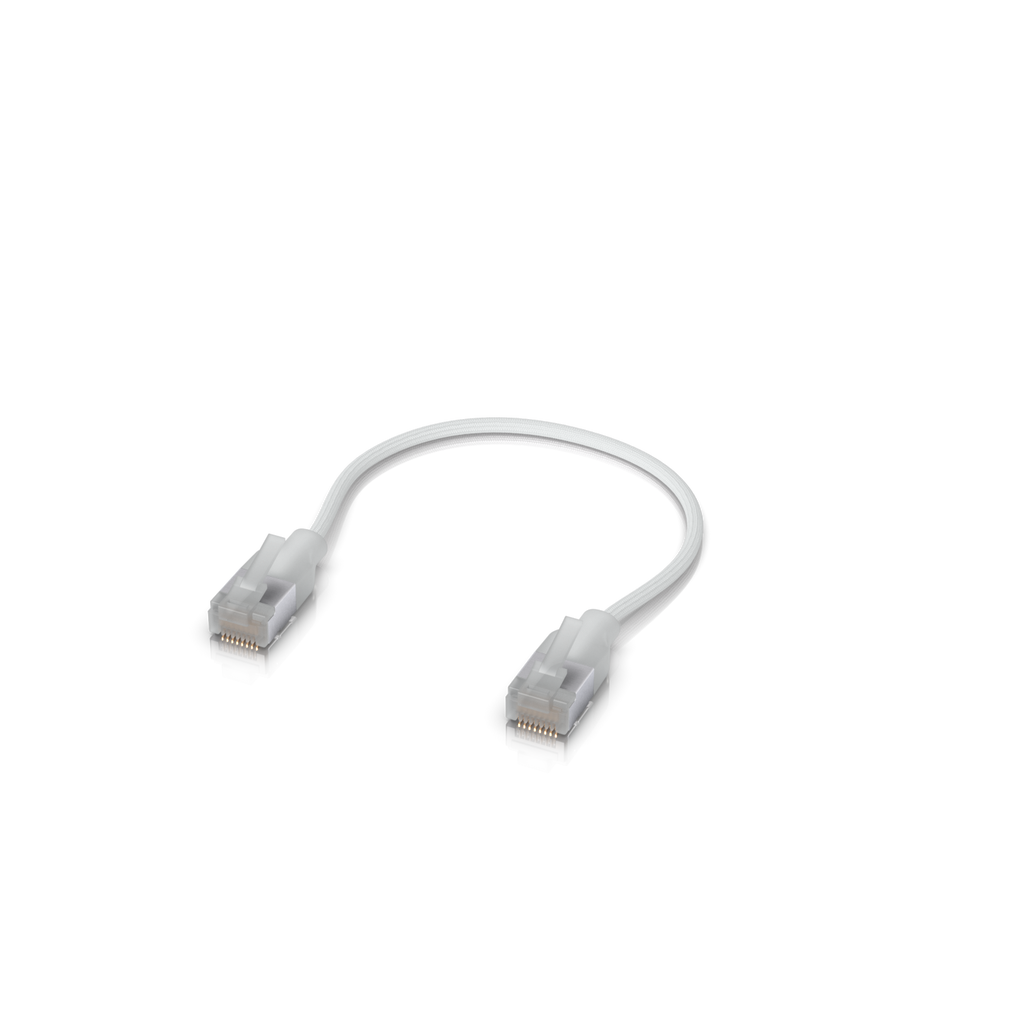

UniFi Premium Patch Cable
UACC-Cable-Patch-EL-C6A-0.15M-W · 0.15 m
Ultra-thin braided patch cable, designed and optimized for 10 GbE networking.Key features Translucent booted RJ45 for optimal Etherlighting™ brightness — 3 mm outer diameter for 0.15-8 m lengths— 3.3 mm...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Ultra-thin braided patch cable, designed and optimized for 10 GbE networking.
Key features
Translucent booted RJ45 for optimal Etherlighting™ brightness
— 3 mm outer diameter for 0.15-8 m lengths
— 3.3 mm outer diameter for 12-15 m lengths
Length: 0.15 to 15 m
Specifications
Overview
| Available Lengths | End-to-end: 0.15, 0.3, 1, 2, 3, 5, 8, 12, 15 m (0.5, 1, 3.3, 6.6, 9.8, 16.4, 26.2, 39.8, 49.2 ft) |
| Available Colors | White |
| Pack Options | Single Unit 24-Pack (0.15 m) |
| Supported Data Rate | 10G |
| Supported PoE Type | Up to PoE+++ |
| Connector | (2) Translucent booted and shielding RJ45 |
| Operating Environment | Indoor |
| Jacket Diameter | 0.15-8 m: 3 mm (0.11") 12-15 m: 3.3 mm (0.13") |
| Jacket Material | Thermoplastic elastomer (TPE) & Braided |
| Shielding Type | UTP |
| Conductor Type | Stranded copper |
| Conductor Wire Gage | 0.15-8 m (0.5-26 ft): 34 AWG 12-15 m (39-49 ft): 32 AWG |
| Bend Radius | 0.15-8 m: Min. 24 mm (0.94 '') 12-15 m: Min. 27 mm (1.06 '') |
| Flame Rating | VW-1 (UL1581) |
| Standards | TIA/EIA-568-B.2 ISO/IEC 11801 |
| Installation Temperature | -20 to 60°C (–4 to 140°F) |
| Ambient Storage Temperature | -20 to 75°C (–4 to 167°F) |
| Ambient Operating Temperature | -20 to 60°C (–4 to 140°F) |
