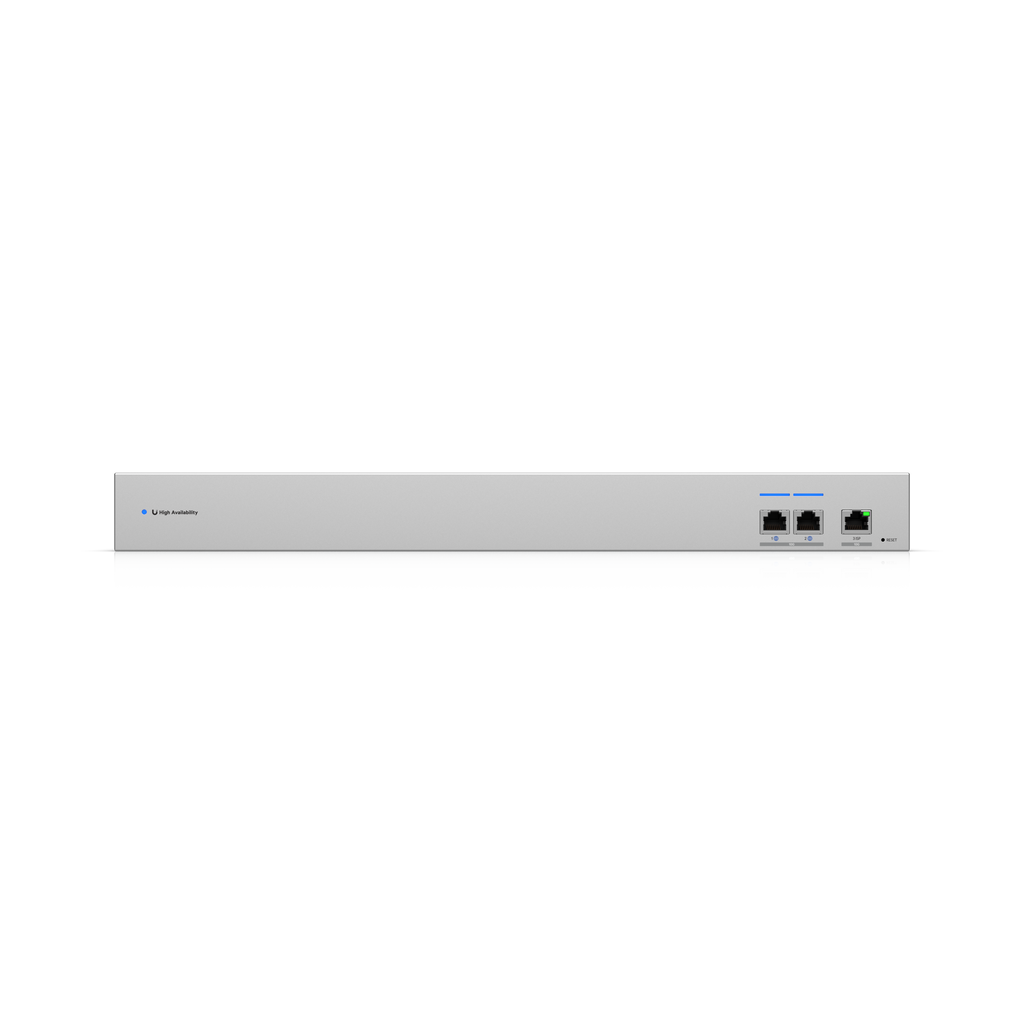

UniFi WAN Switch RJ45
USW-WAN-RJ45
10 GbE WAN Switch linking two Shadow Mode High Availability UniFi Gateways to a single ISP.Note. Use an additional USW-WAN-RJ45 switch for deployments with multiple ISPs.Key features Combine with Shadow...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
10 GbE WAN Switch linking two Shadow Mode High Availability UniFi Gateways to a single ISP.
Note. Use an additional USW-WAN-RJ45 switch for deployments with multiple ISPs.
Key features
Combine with Shadow Mode High Availability to ensure uninterrupted connectivity
(1) 10 GbE ISP uplink and (2) 10 GbE downlink ports
(2) AC inputs for power redundancy
(1) GbE port for management with UniFi Network
*Use an additional USW-WAN-RJ45 switch for ISP failover deployments.
Specifications
Overview
| Dimensions | 442.4 x 120 x 43.7 mm (17.4 x 4.72 x 1.7") |
| 1 GbE RJ45 | 1 (1G/100M/10M) |
| 10 GbE RJ45 | 3 (10G/5G/2.5G/1G/100M) |
| Redundancy | (2) AC inputs |
| Form Factor | Rack mount (1U) |
Performance
| Switching Capacity | 20 Gbps |
| Total Non-Blocking Throughput | 10 Gbps |
| Forwarding Rate | 15 Mpps |
Hardware
| Max. Power Consumption | 18W |
| Power Method | (2) Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method | AC input |
| Power Supply | (2) AC/DC, internal, 36W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet |
| Weight | Without mounting brackets: 2.3 kg (5.1 lb) With mounting brackets: 2.4 kg (5.3 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| ESD Protection | Air: ± 16kV, contact: ± 10kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 04273-25-08356 |
Software
| UniFi Network | Version 9.1.120 and later |
