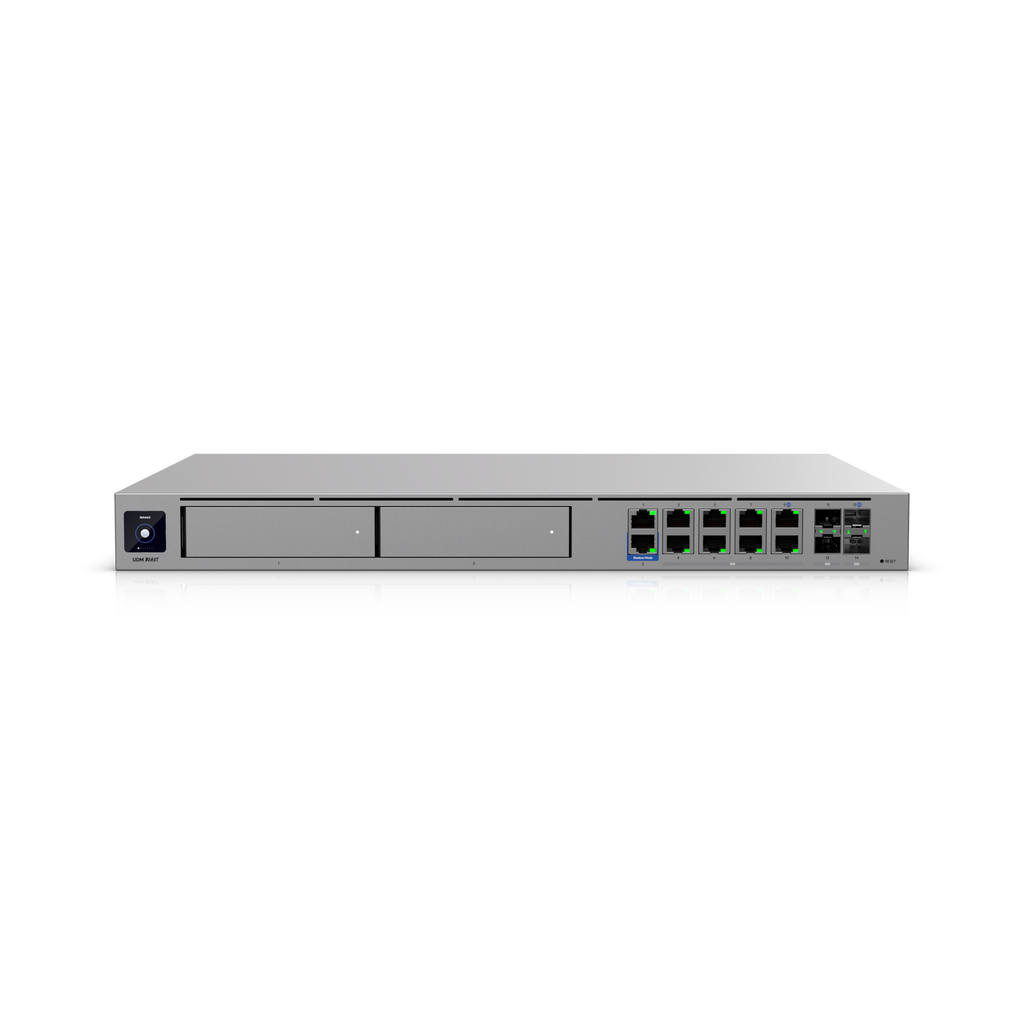

Dream Machine Beast
UDM-Beast
Hyperscale-class Cloud Gateway delivering 25 Gbps IPS/IDS, 7,500+ client capacity, and the full UniFi application platform in one system.SpecificationsOverview Dimensions 442.4 x 43.7 x 325 mm (17.4 x 1.7 x...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Hyperscale-class Cloud Gateway delivering 25 Gbps IPS/IDS, 7,500+ client capacity, and the full UniFi application platform in one system.
Specifications
Overview
| Dimensions | 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8") |
| Managed UniFi Devices | 750+ |
| Managed Cameras | (100) HD (60) 2K (40) 4K |
| Managed Access Hubs | 200 |
| Simultaneous Users Connected | 7,500+ |
| Max. WAN Port Count | 8 |
| Default WAN Ports | (1) 25G SFP28 (1) 10 GbE RJ45 |
| 1 GbE RJ45 | 2 (1G/100M/10M) |
| 10 GbE RJ45 | 8 (10G/5G/2.5G/1G/100M) |
| 10G SFP+ | 2 (10G/1G) |
| 25G SFP28 | 2 (25G/10G/1G) |
| Console | 1 |
| IDS/IPS Throughput | 25 Gbps |
| Form Factor | Rack mount (1U) |
| Redundancy | Shadow Mode (VRRP) Gateway Failover DC Power Backup Enable DC power backup using UniFi RPS |
Security
| IDS/IPS Signatures | 55,000+ with CyberSecure |
Networking
| MAC Address Table Size | 32,000 |
Hardware
| NVR Storage | (2) 3.5" NVR HDD bays Built-in 128 GB SSD for Faster Experience |
| Max. Power Consumption | 100W |
| Power Method | (1) Universal AC input, 100–240V AC, 3A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 13.05A |
| Power Supply | AC/DC, internal, 150W |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 342 BTU/hr |
| Processor | Octa-core ARM® v9 at 2.1 GHz |
| System Memory | 16 GB |
| On-board Storage | Integrated 128 GB SSD |
| Weight | 5.5 kg (12.13 lb) |
| Enclosure Material | Aluminium CNC, SGCC steel |
| Mount Material | SGCC steel |
| LCM Display | 1.3" touchscreen |
| Management | Ethernet Bluetooth |
| Button | (1) Factory reset |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
Software
| Mobile App | UniFi iOS™: Version 10.34.0 and later UniFi Android™: Version 10.37.1 and later |
Downloads & documents
Build around the Dream Machine Beast.
It's already in your kit below. Add a gateway and PoE and the discount starts working. Discount tiers climb with the bundle — the bars fill as you build.
Type your address. We'll spec the building.
Square footage, floors, rooms, construction type — turned into an AP count, a switch size, and a gateway that fits. No guesswork, no overbuying.
Four quick questions size the kit. Property-records autofill is in the build phase.
Enter an address and the plan appears here —
property facts first, then the kit.
Pick the right one, not the biggest one
The honest line-up from cloud gateways. Most buyers reading this page should buy the middle column.
Dream Wall
Dream Machine Beast
Enterprise Fortress GatewayAsked before checkout
The questions our support inbox actually gets.
Does it ship the same day?+
Orders placed before 2 PM ET on a business day leave the same day from our bench in Altamonte Springs, FL. Tracking is emailed the moment the label prints.
What if it's the wrong size for my building?+
Return it. 30 days, no restocking fee, refund to the original payment method. Better: send us your floor plan first and we'll size the kit for free — half of all returns are sizing problems.
Who handles the warranty?+
We do. Everything carries the manufacturer's warranty and we run the claim for you — one email to us instead of a ticket queue overseas.
How does the bundle discount work?+
Add items to a kit in the bundle builder: 2+ items saves 5%, 3+ saves 8%, 4+ saves 12%, and 5+ saves 15% off the whole kit.
