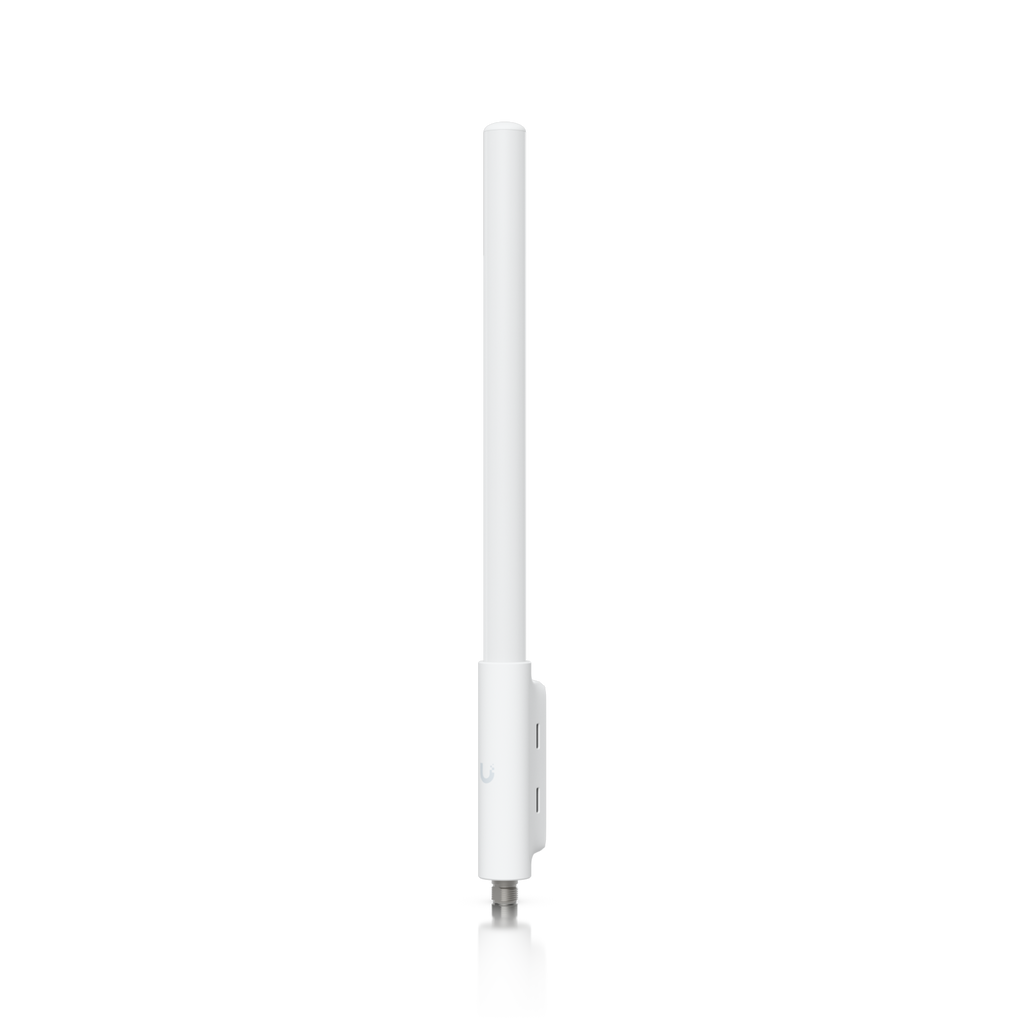

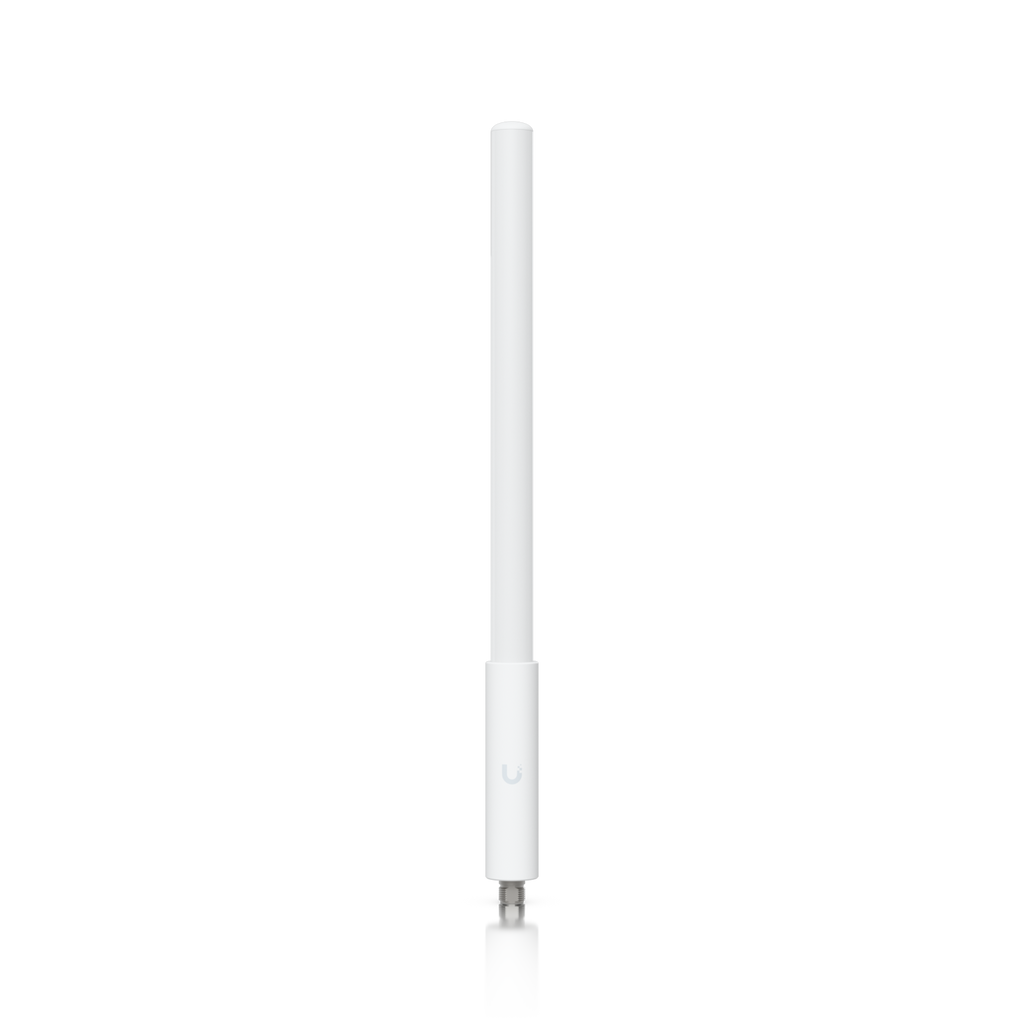

SuperLink High-Gain Antenna
UACC-USL-ANT-HG
High-gain, omnidirectional antenna with an IP67-rated outdoor enclosure, built to extend SuperLink range in all weather conditions.SpecificationsOverview Dimensions Device: 468.9 x 31.8 x 44.1 mm (18.5 x 1.3 x 1.7")...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
High-gain, omnidirectional antenna with an IP67-rated outdoor enclosure, built to extend SuperLink range in all weather conditions.
Specifications
Overview
| Dimensions | Device: 468.9 x 31.8 x 44.1 mm (18.5 x 1.3 x 1.7") With cable: 1458.4 x 31.8 x 44.1 mm (57.4 x 1.3 x 1.7") Cable: ⌀5.2 x 1000 mm (⌀0.2 x 39.4") |
| Weatherproofing | IP67 |
| Mounting | Pole mount |
| Pole Mount Diameter | 1–2.17" (25–55 mm) |
| Wind Loading | 25.4 N at 200 km/h (5.7 lbf at 125 mph) |
| UniFi Application Suite | Protect |
Performance
| US | 860–930 MHz |
| EU | 860–930 MHz |
| Bluetooth | 2400–2480 MHz |
| Bluetooth | 4 dBi |
| SuperLink | 7 dBi |
| Bluetooth | Up to 100 m (328 ft) |
| SuperLink | 5 km (3.1 mi) Line of Sight (LOS) |
Hardware
| Weight | Device: 275 g (9.7 oz) Cable: 65 g (2.3 oz) |
| Enclosure Material | Polycarbonate, glass fiber |
| Mount Material | Stainless steel |
| Antenna Connector | (1) RP-N Female |
| Antenna Cable | (1) RP-SMA Male (1) RP-N Male |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE |
Downloads & documents
