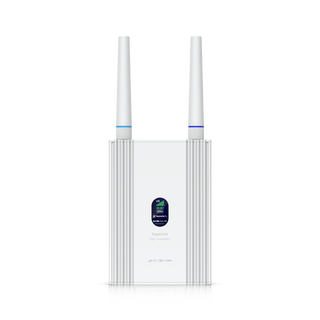

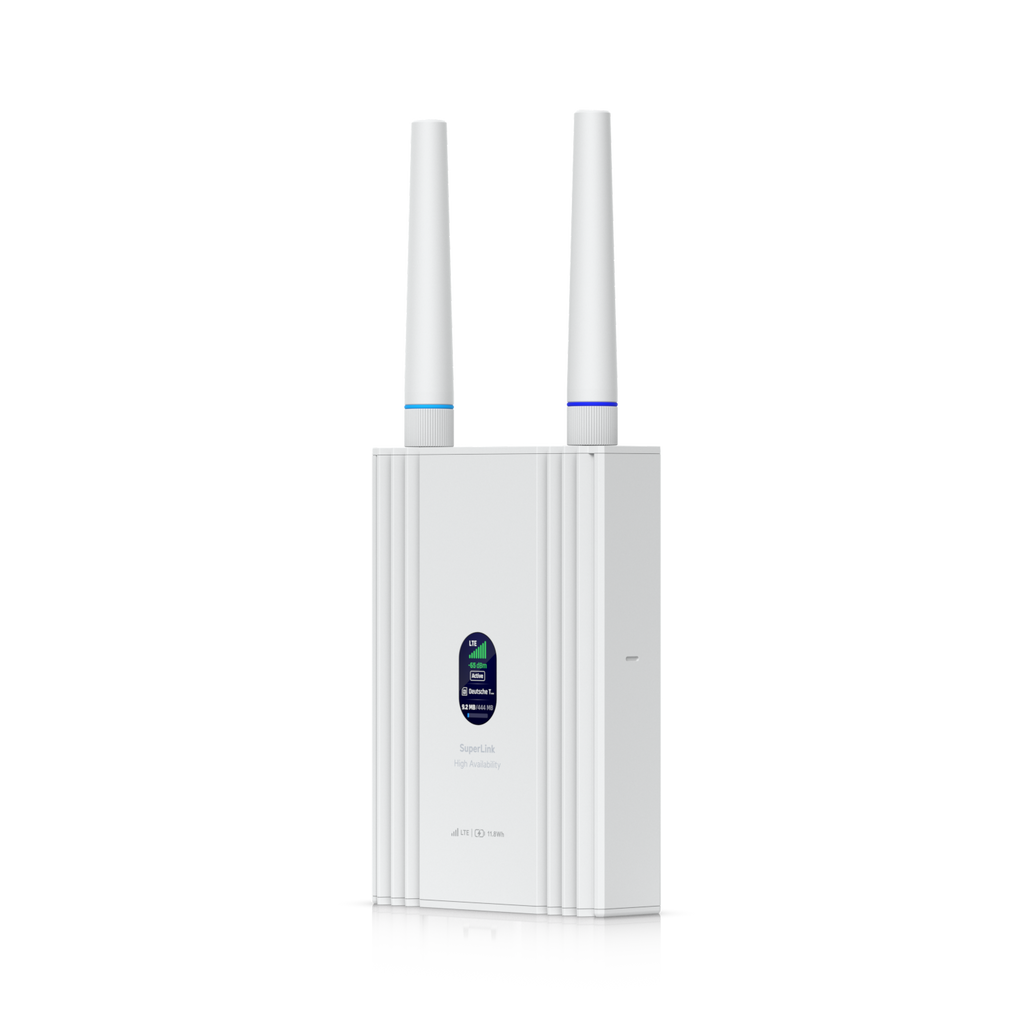

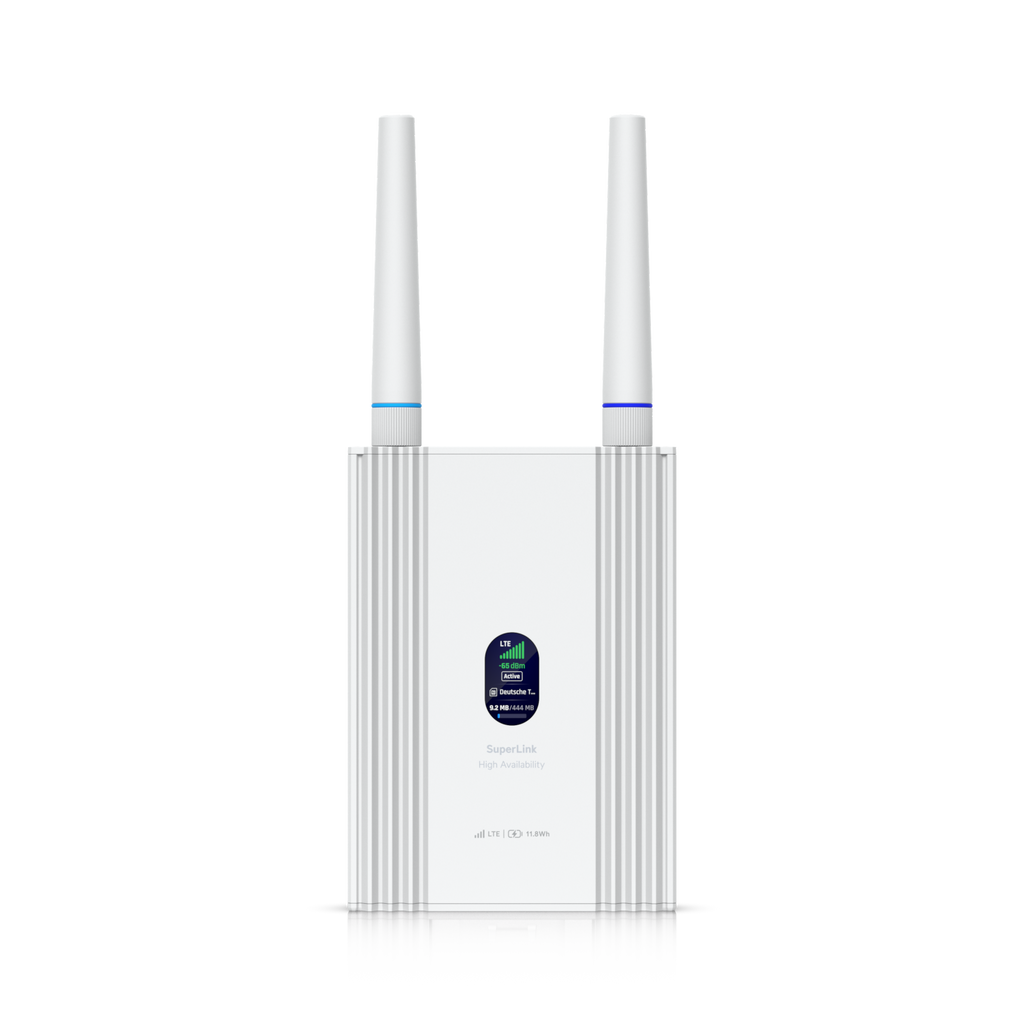

SuperLink Gateway HA
USL-G2-Gateway-HA-US
A SuperLink gateway and Thread border router designed for long-range SuperLink sensors and Thread devices, with LTE connectivity and built-in battery for power backup.SpecificationsOverview Dimensions With antenna: 206 x 85...
What’s in the box
Everything that ships with your SuperLink Gateway HA — straight from the manufacturer.
What it is, and who it is for.
Built for the home — serious networking that disappears into the walls, no IT department required.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
A SuperLink gateway and Thread border router designed for long-range SuperLink sensors and Thread devices, with LTE connectivity and built-in battery for power backup.
Specifications
Overview
| Dimensions | With antenna: 206 x 85 x 25.6 mm ( 8.1 x 3.4 x 1") With DIN rail mount: 206 x 85 x 38.1 mm ( 8.1 x 3.4 x 1.5") With wall mount: 206 x 85 x 30.3 mm ( 8.1 x 3.4 x 1.2") |
| Mounting | Wall and Din rail mount |
| UniFi Application Suite | Protect |
Performance
| Networking Interface | (1) 10/100 MbE RJ45 port |
| Connectivity | Thread (IEEE Standard 802.15.4) SuperLink (Proprietary) |
| Thread | 2400–2480 MHz |
| SuperLink | US: 915.6–927.6 MHz EU: 865.1–869.5 MHz |
| Thread | 3 dBi |
| SuperLink | 1 dBi |
| Thread | 10 dBm |
| SuperLink | 27 dBm |
| Thread | Up to 100 m (328 ft) |
| SuperLink | 2 km (1.2 mi) Line of Sight (LOS) |
| Thread | 128 |
| SuperLink | 96 |
Hardware
| Max. Power Consumption | 6.5W |
| Power Method | PoE USB Type-C, 5V, 1A External DC in: 12V, 1A |
| Battery Life | 2.2 h |
| Weight | 380 g (13.4 oz) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Polycarbonate |
| Antenna Connector | (1) SuperLink: RP-SMA female (1) Mobile: SMA female |
| Buttons | (1) Factory reset |
| Display | 1.14" status display |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
Software
| Web Application | UniFi Protect |
| Mobile App | UniFi Protect iOS™ and Android™ |
