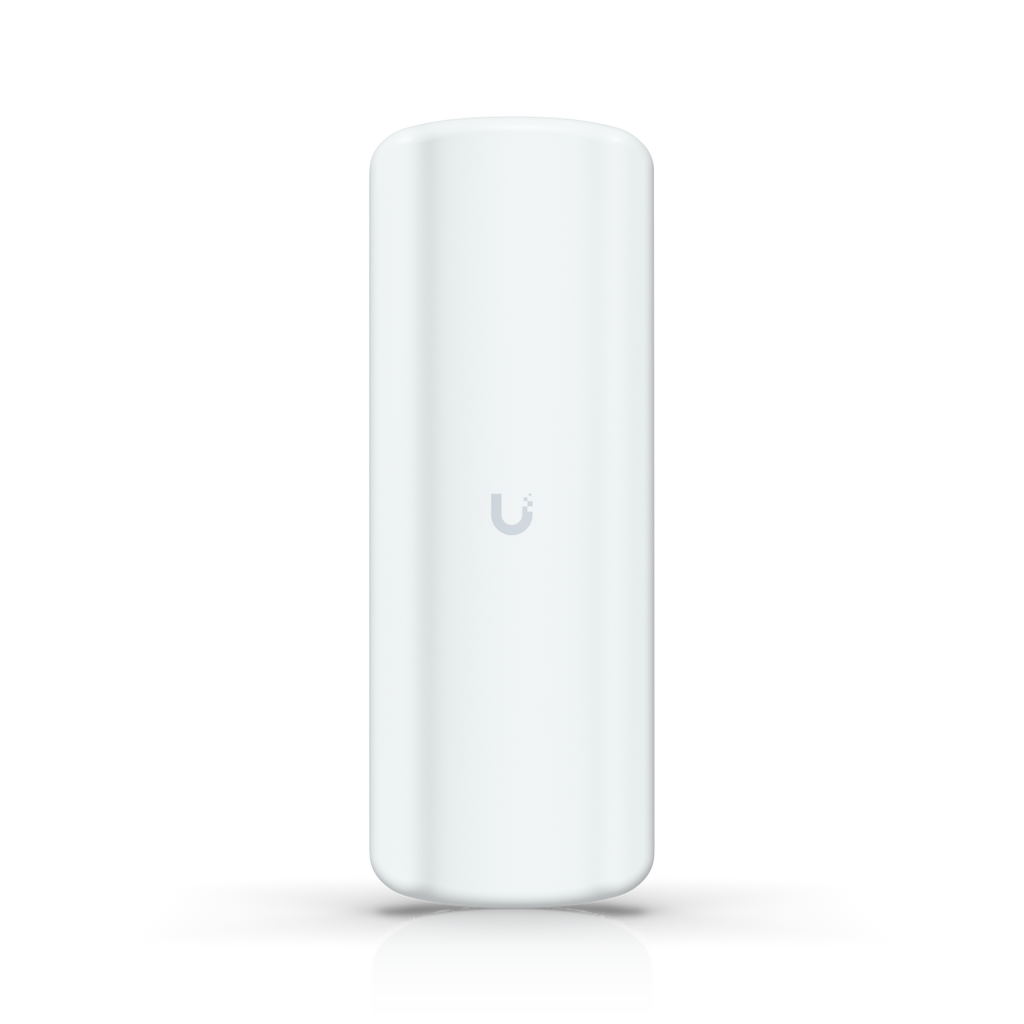

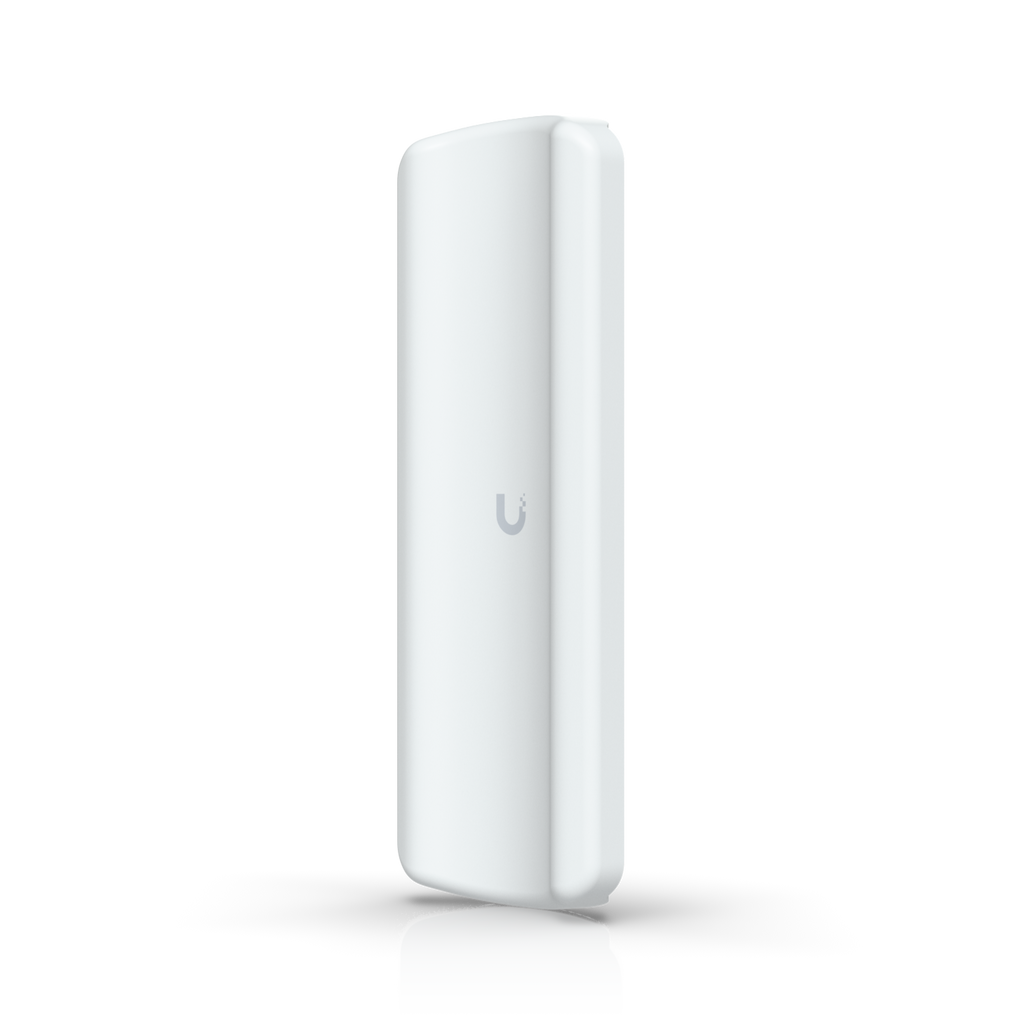

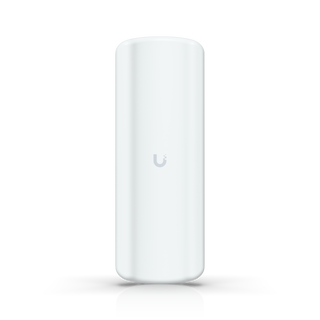

Device Bridge Pro Sector
UDB-Pro-Sector-US
5 GHz point-to-multipoint access point that wirelessly bridges 50+ Device Bridge Pro clients at 5+ km distances.Key features Enables Point-to-Multi-Point (PtMP connectivity) with 50+ UDB-Pro clients 90° sector coverage Powered...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
5 GHz point-to-multipoint access point that wirelessly bridges 50+ Device Bridge Pro clients at 5+ km distances.
Key features
Enables Point-to-Multi-Point (PtMP connectivity) with 50+ UDB-Pro clients
90° sector coverage
Powered using PoE
Pole mounting
Weatherproof (outdoor exposed)
Specifications
Overview
| Dimensions | 360.9 x 129.6 x 71.4 mm (14.2 x 5.1 x 2.8”) |
| WiFi Standard | WiFi 5 |
| Spatial Streams | 2 |
| Coverage Area | 5 km (3.1 mi) |
| Mounting Locations | Pole |
| Weatherproofing | IPX6 |
| Power Method | PoE |
Performance
| 5 GHz | 2 x 2 |
| 5 GHz | 400 Mbps (BW40) |
| 5 GHz | 17 dBi |
| 5 GHz | 25 dBm |
| Max. Conducted TX Power | 25 dBm (Combined) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 400 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wireless Security | WPA2 AES |
Hardware
| Max. Power Consumption | 6W |
| Supported Voltage Range | 42.5–57V DC |
| Networking Interface | (1) GbE RJ45 port |
| Antennas | Internal |
| Management | Ethernet WiFi |
| Channel Bandwidth | 20/40 MHz |
| Wind Loading | 128.2N at 200 km/h |
| Weight | Device: 782 g (1.7 lb) With mount: 835 g (1.8 lb) |
| Enclosure Material | UV-stabilized polycarbonate |
| Mount Material | UV-stabilized polycarbonate, stainless steel |
| Pole Mount Diameter | 0.9—2.4" (24—60 mm) |
| Button | (1) Factory reset |
| System | Power, Ethernet |
| Certifications | CE, FCC, IC, Anatel: 05978-25-08356 |
| Operating Frequency | US/CA: U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz Worldwide: 5150 - 5875 MHz For worldwide, it depends on the regulatory region |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
