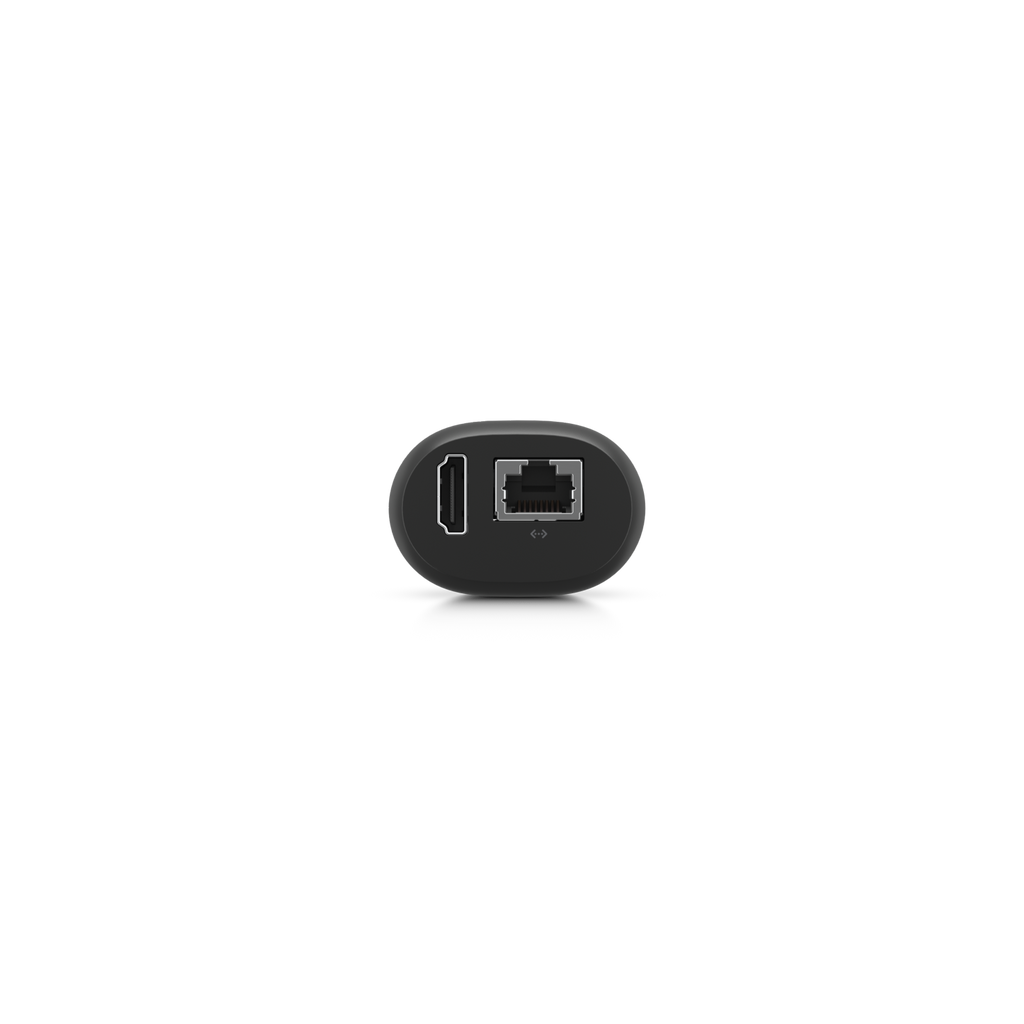

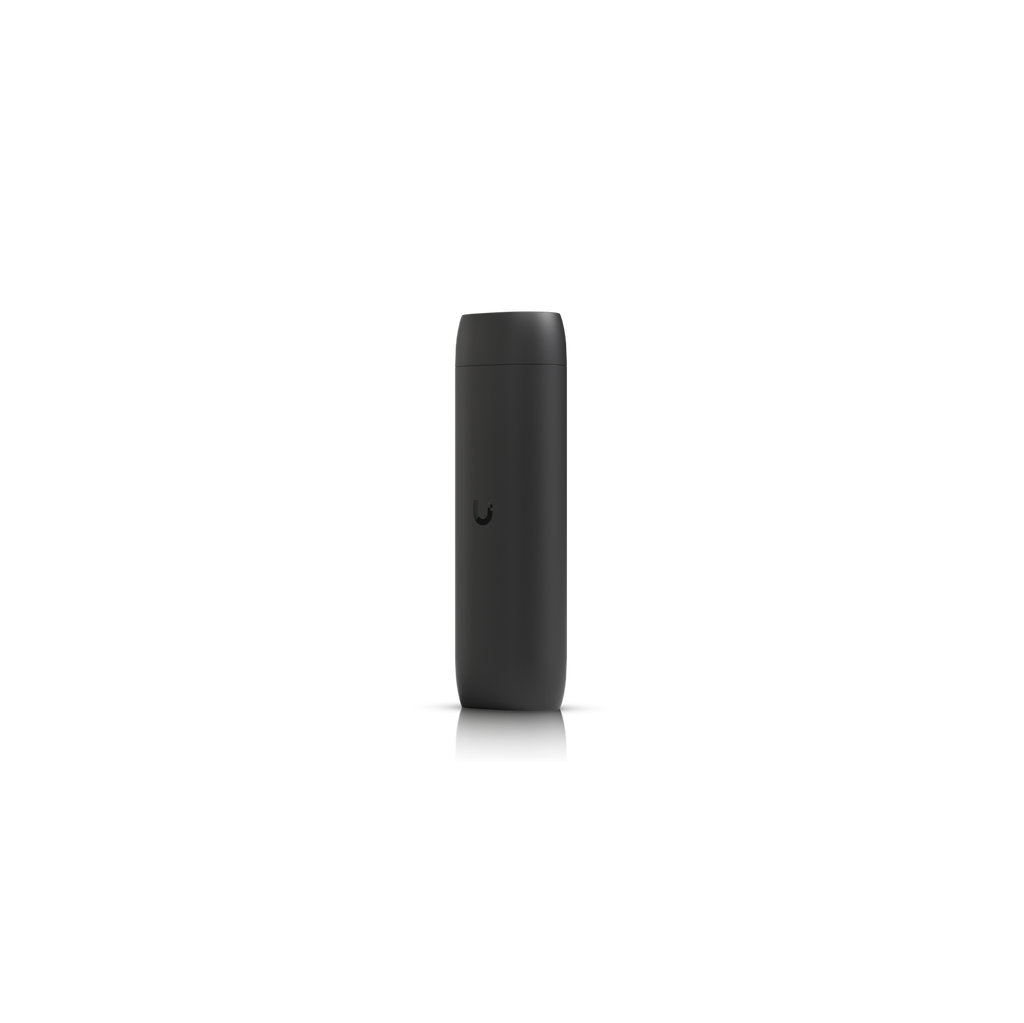

Protect Viewport
UP-Viewport
Easy-to-use hub for viewing Protect camera feeds on an HDMI display.Key features Flexible mounting 16-stream matrix view support Connect and power using PoE HDMI video output up to 4K @...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Easy-to-use hub for viewing Protect camera feeds on an HDMI display.
Key features
Flexible mounting
16-stream matrix view support
Connect and power using PoE
HDMI video output up to 4K @ 30 FPS
Specifications
Mechanical
| Dimensions | 157 x 52 x 37 mm (6.2 x 2.1 x 1.5") |
| Weight | Without mount: 230 g (8.1 oz) With TV mount: 252 g (8.9 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
Hardware
| Networking Interface | (1) GbE RJ45 port |
| Power Method | PoE |
| Max. Power Consumption | 9.5W |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Buttons | (1) Factory reset |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 20 to 80% noncondensing |
| Certifications | FCC, IC, CE, Anatel: 06681-25-08356 |
Software
| Web Application | UniFi Protect |
| Mobile App | UniFi Protect iOS™ and Android™ |
