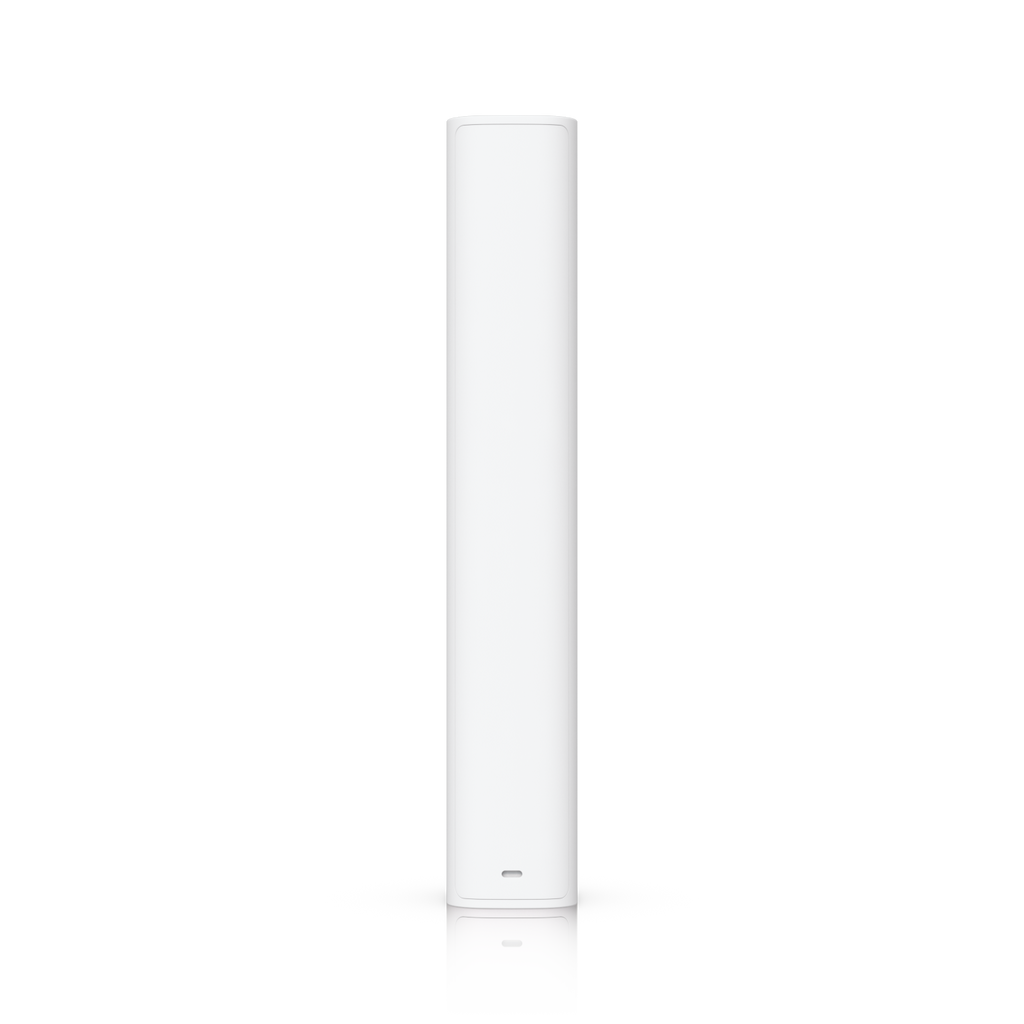

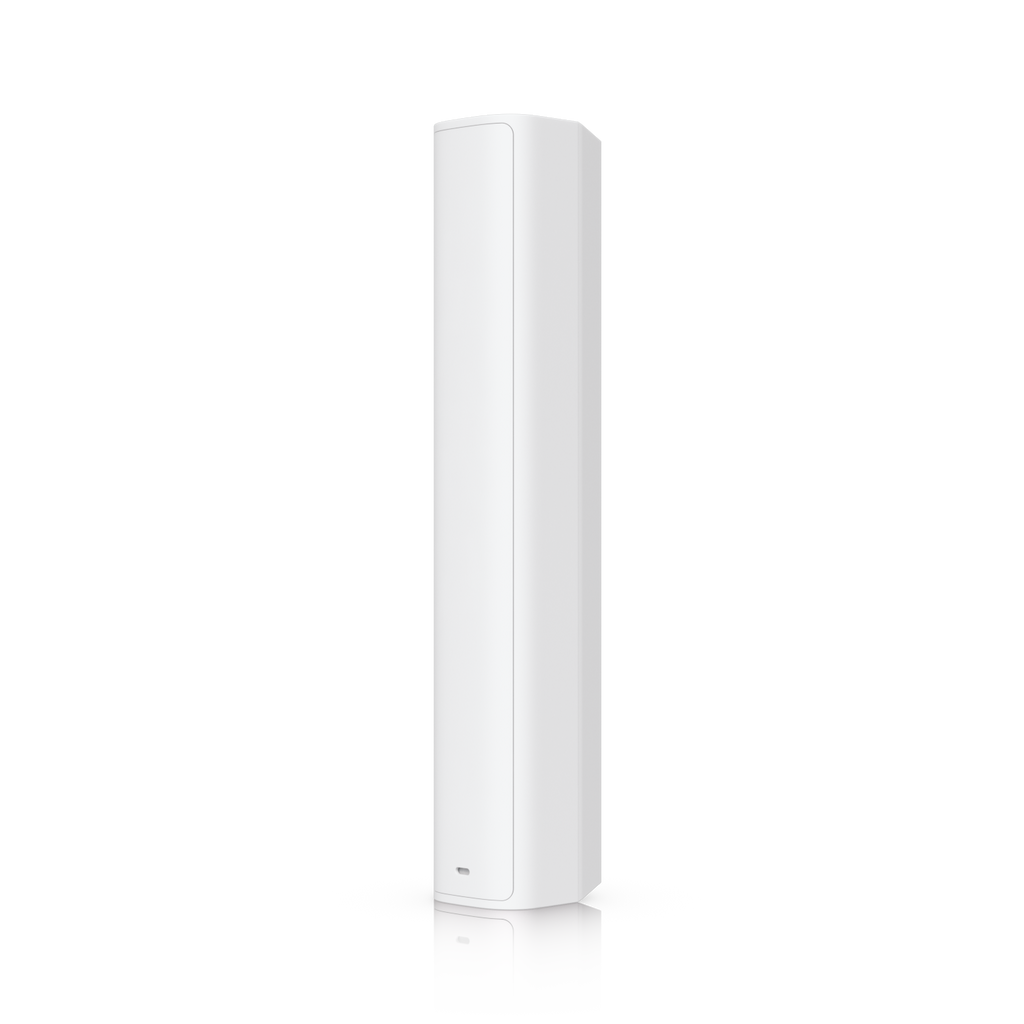

Glass Break Sensor
USL-GlassBreak-US
Battery-powered SuperLink sensor featuring advanced glass break detection and motion sensing.SpecificationsOverview Dimensions Device with wall mount: 134.5 x 22.5 x 24.8 mm (5.3 x 0.9 x 1") Device with corner...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Battery-powered SuperLink sensor featuring advanced glass break detection and motion sensing.
Specifications
Overview
| Dimensions | Device with wall mount: 134.5 x 22.5 x 24.8 mm (5.3 x 0.9 x 1") Device with corner mount: 134.5 x 22.5 x 27.9 mm (5.3 x 0.9 x 1.1") |
| Mounting | Adhesive and screw mount |
| UniFi Application Suite | Protect |
Performance
| Connectivity | SuperLink (Proprietary) |
| US | 915.6–927.6 MHz |
| EU | 865.1–869.5 MHz |
| SuperLink | 1 dBi |
| SuperLink | 14 dBm |
| SuperLink | 2 km (1.2 mi) Line of Sight (LOS) |
| Detected Glass Type | Plate, tempered, obscured, laminated, coated, wired Size: 280 x 356 mm (11 x 14") to 1067 x 1626 mm (42 x 64”) Thickness: 2.4 mm (3/32"), 4.8 mm (3/16"), 3.2 mm (1/8"), 6.4 mm (1/4") |
Hardware
| Max. Power Consumption | 0.2W |
| Supported Voltage Range | 3V |
| Power Method | (2) Lithium battery CR123A |
| Battery Life | Up to 3 years |
| Weight | With mount and batteries: 70 g (2.5 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Buttons | (1) Function button (1) Factory reset (1) Tamper switch |
| LEDs | (1) Status: R/B/W (1) Signal: B/R |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
Software
| Web Application | UniFi Protect |
| Mobile App | UniFi Protect iOS™ and Android™ |
