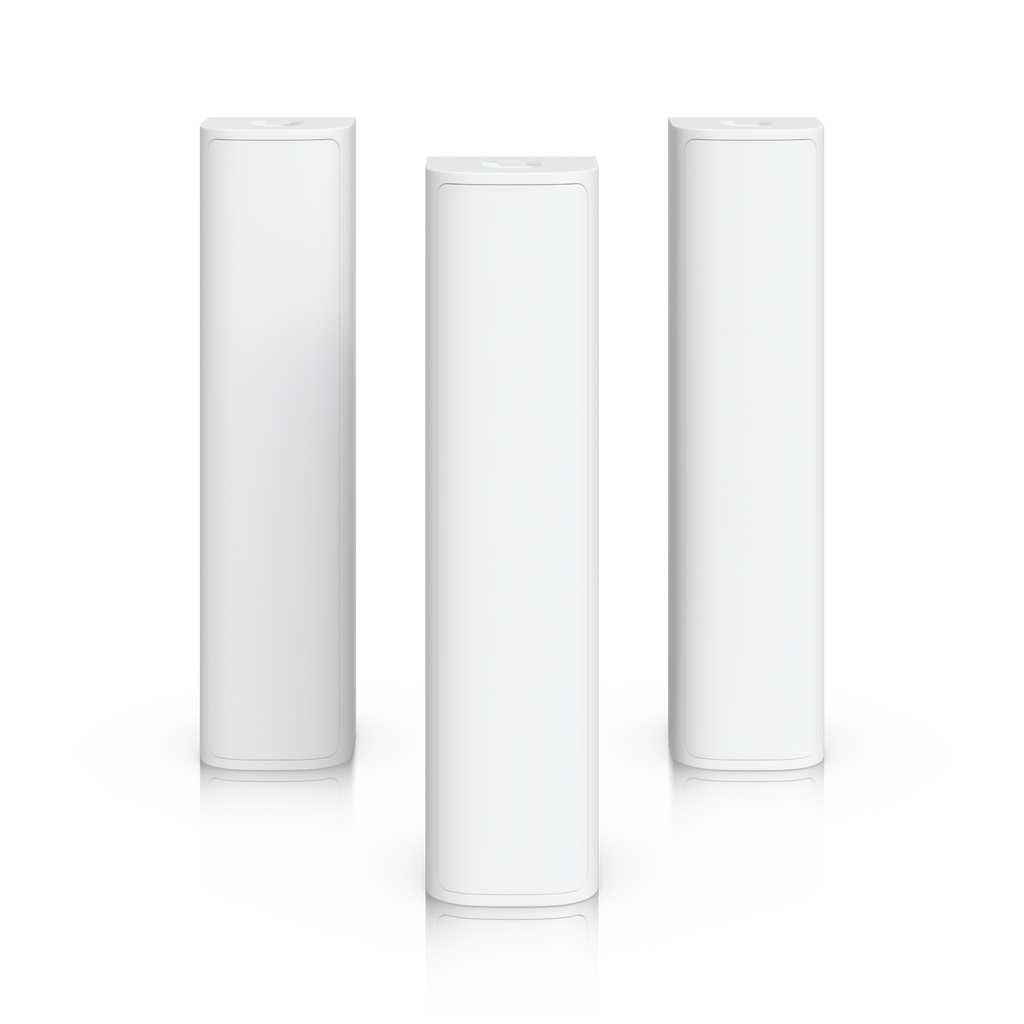

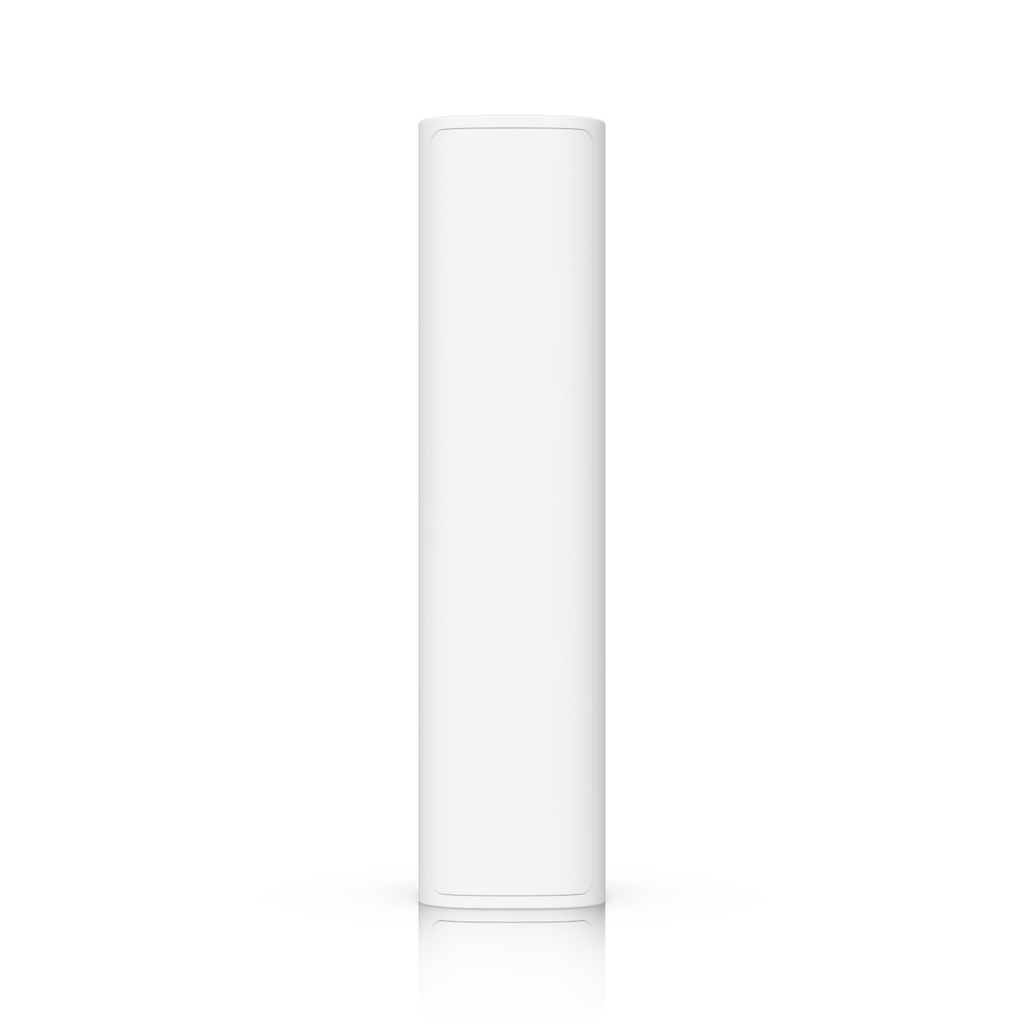

Motion Sensor
USL-Motion-US · Single Unit
SuperLink motion sensor designed for versatile installation, delivering up to 6 years of battery life.SpecificationsOverview Dimensions Device with wall mount: 93.5 x 22.5 x 24.7 mm (3.7 x 0.89 x...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
SuperLink motion sensor designed for versatile installation, delivering up to 6 years of battery life.
Specifications
Overview
| Dimensions | Device with wall mount: 93.5 x 22.5 x 24.7 mm (3.7 x 0.89 x 0.97") Device with corner mount: 93.5 x 22.5 x 27.9 mm (3.7 x 0.89 x 1.1") |
| Mounting | Adhesive and screw mount |
| UniFi Application Suite | Protect |
Performance
| Connectivity | SuperLink (Proprietary) |
| US | 915.6–927.6 MHz |
| EU | 865.1–869.5 MHz |
| SuperLink | 1 dBi |
| SuperLink | 14 dBm |
| SuperLink | 2 km (1.2 mi) Line of Sight (LOS) |
| Horizontal PIR Sensor | Detection range up to 1.5 m (4.9 ft) |
| Vertical PIR Sensor | Detection range up to 6 m (19.7 ft) with pet immunity |
Hardware
| Max. Power Consumption | 22.6mW |
| Supported Voltage Range | 3V |
| Power Method | Lithium battery CR123A |
| Battery Life | Up to 6 years |
| Weight | 45 g (1.6 oz) |
| Enclosure Material | Polycarbonate, high-density polyethylene (HDPE) |
| Mount Material | Polycarbonate |
| Buttons | (1) Factory reset (1) Function button (1) Tamper switch |
| LEDs | (1) Status: R/B/W (1) Signal: B/R |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
Software
| Web Application | UniFi Protect |
| Mobile App | UniFi Protect iOS™ and Android™ |
