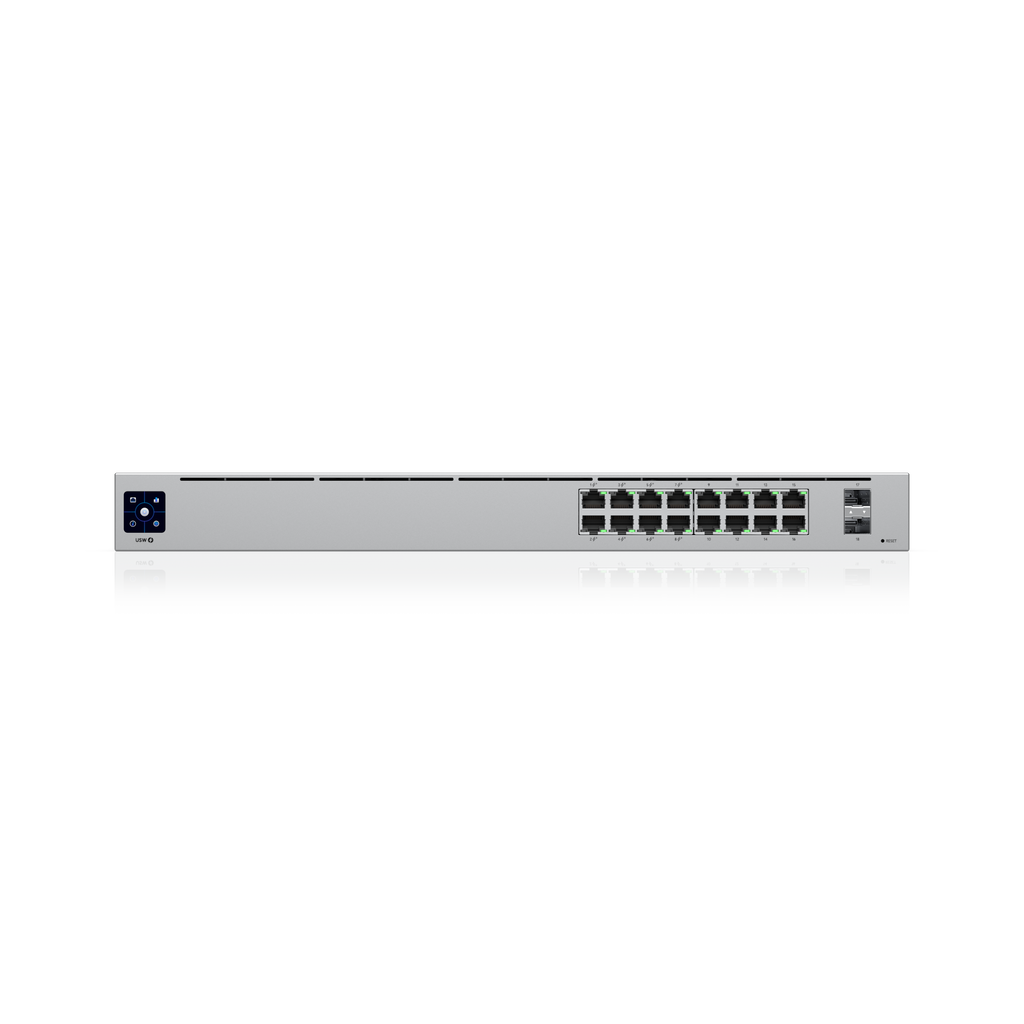

Switch 16 PoE
USW-16-POE
A 16-port, Layer 2 PoE switch with a silent, fanless cooling system.Key features (8) GbE PoE+, (8) GbE ports (2) 1G SFP ports 42W total PoE availability Fanless, silent coolingSpecificationsOverview...
Or build it into a bundle — save up to 6% ↓What’s in the box

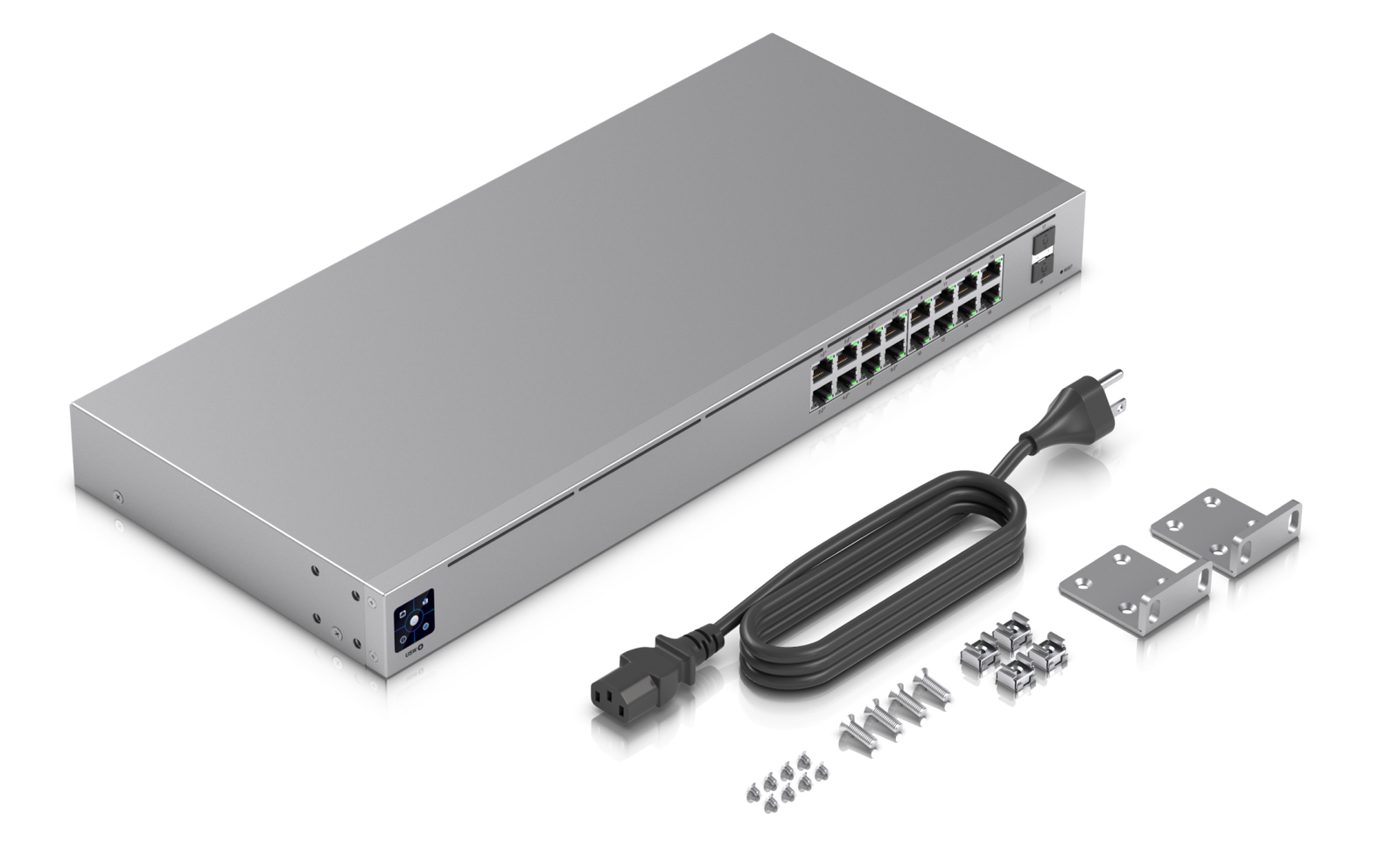

Everything that ships with your Switch 16 PoE — straight from the manufacturer.
What it is, and who it is for.
Right-sized for a small team — punches well above its price, no rack or specialist needed.
How it compares
The honest cross-shop against the real alternatives — same job, no recurring license fees.
| Switch 16 PoEUniFi · $375.00 | TP-Link Omada Smart Switch~$100+ | Netgear Smart Managed~$130+ | |
|---|---|---|---|
| Recurring license | None | None | None |
| Managed from | Same UniFi console as the whole network | Omada controller | Separate switch UI / cloud |
| Ecosystem integration | Topology, PoE & clients in one map | Omada only | Standalone |
| Vendor | Ubiquiti, US-based | TP-Link | Netgear, US-based |
| Price | $375.00 | ~$100+ | ~$130+ |
Managed switching that shows up in the same topology map as your gateway and APs — no extra license. See the full comparison →
Buy your Switch 16 PoE here and a US-based team stands behind it — pre-sales design, setup guidance, and RMA help when you need it. Not a forum thread you hope someone answers. A real Giant in your corner.
Get a hand with your build →What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
A 16-port, Layer 2 PoE switch with a silent, fanless cooling system.
Key features
(8) GbE PoE+, (8) GbE ports
(2) 1G SFP ports
42W total PoE availability
Fanless, silent cooling
Specifications
Overview
| Dimensions | 442 x 200 x 44 mm (17.4 x 7.9 x 1.7") |
| 1 GbE RJ45 | 16 (8 PoE+) (1G/100M/10M) |
| 1G SFP | 2 (1G) |
| Max. PoE Output | Up to PoE+ |
| Total PoE Availability | 42W |
| Form Factor | Rack mount (1U) |
Performance
| Switching Capacity | 36 Gbps |
| Total Non-Blocking Throughput | 18 Gbps |
| Forwarding Rate | 27 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 8,000 |
| Packet Buffer Size | 0.5 MB |
| IPv4 | 128 |
| MAC | 128 |
Hardware
| PoE+ | 8 |
| PoE | 15.4W |
| PoE+ | 32W |
| Max. Power Consumption | 18W (Excluding PoE Output) 60W (Including PoE Output) |
| Power Method | Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 60W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet AR |
| Heat Dissipation | 61.4 BTU/hr |
| Weight | Without mounting brackets: 2.8 kg (6.2 lb) With mounting brackets 2.9 kg (6.4 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm (15.7-47.2") |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 16kV, contact: ± 12kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 00593-21-08356 |
Software
| UniFi Network | Version 7.2.94 and later |
Downloads & documents
Build around the Switch 16 PoE.
It's already in your kit below. Add a gateway and PoE and the discount starts working. Discount tiers climb with the bundle — the Giant fills as you build.
Type your address. We'll spec the building.
Square footage, floors, rooms, construction type — turned into an AP count, a switch size, and a gateway that fits. No guesswork, no overbuying.
Start typing your address — we pull the property's square footage and floors, then size the kit. Adjust anything before you build.
Enter an address and the plan appears here —
property facts first, then the kit.
Pick the right one, not the biggest one
The honest line-up from commercial. Most buyers reading this page should buy the middle column.
G4 Doorbell Pro
Switch 16 PoE
Camera AI Theta ProAsked before checkout
The questions our support inbox actually gets.
Does it ship the same day?+
Orders placed before 2 PM ET on a business day leave the same day from our bench in Altamonte Springs, FL. Tracking is emailed the moment the label prints.
What if it's the wrong size for my building?+
Return it. 30 days, no restocking fee, refund to the original payment method. Better: send us your floor plan first and we'll size the kit for free — half of all returns are sizing problems.
Who handles the warranty?+
We do. Everything carries the manufacturer's warranty and we run the claim for you — one email to us instead of a ticket queue overseas.
How does the bundle discount work?+
Add items to a kit in the bundle builder: 2+ items saves 5%, 3+ saves 8%, 4+ saves 12%, and 5+ saves 15% off the whole kit.
