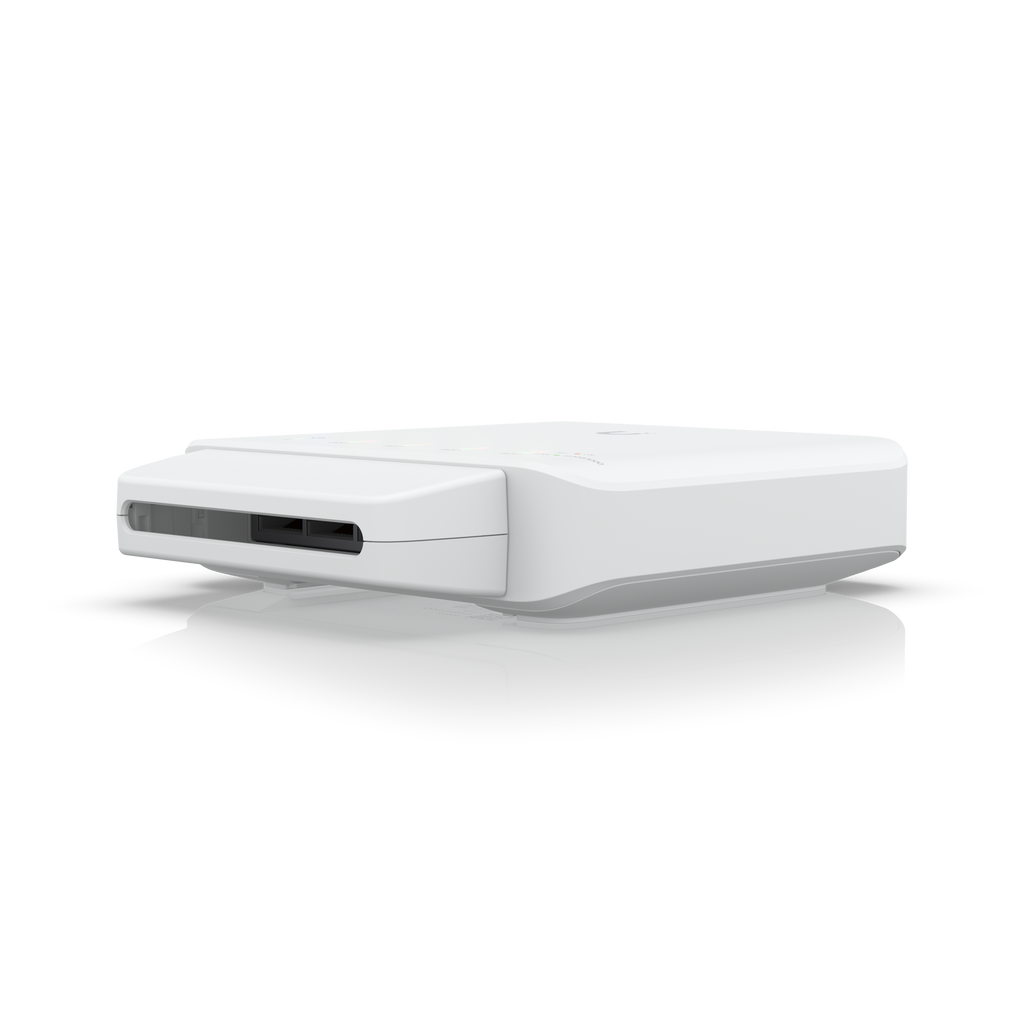

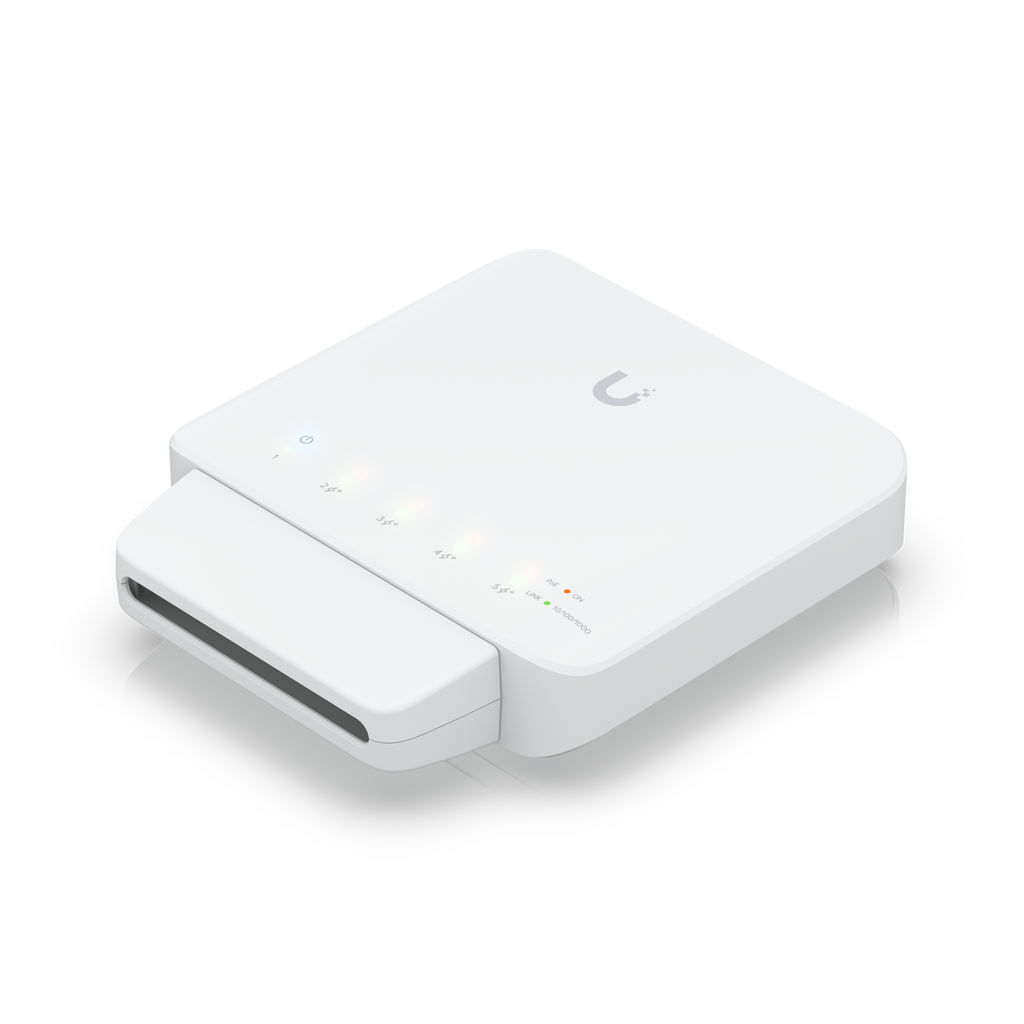

Switch Flex
USW-Flex · Single Unit
Flexible 5-port, Layer 2 PoE switch for indoor and outdoor use, that can be powered with PoE++.Note. 46W total PoE availability when powered with a PoE++ switch or a 60W...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Flexible 5-port, Layer 2 PoE switch for indoor and outdoor use, that can be powered with PoE++.
Note. 46W total PoE availability when powered with a PoE++ switch or a 60W PoE adapter (sold separately).
Key features
(4) GbE PoE+ ports
(1) GbE PoE++ input port for power
— 46W PoE availability* PoE++ input
— 20W PoE availability PoE+ input
— 8W PoE availability PoE input
Indoor/Outdoor
*When powered with a PoE++ switch or a 60W PoE adapter (sold separately).
Specifications
Overview
| Dimensions | 122.5 x 107.1 x 28 mm (4.8 x 4.2 x 1.1") |
| 1 GbE RJ45 | 5 (4 PoE+; 1 PoE++) (1G/100M/10M) |
| Max. PoE Output | Up to PoE+ |
| Total PoE Availability | PoE++/60W PoE adapter input: 46W PoE+ input: 20W PoE input: 8W 60W PoE adapter sold separately |
| Form Factor | Compact desktop, wall, pole Pole mounting requires USW-Flex-Utility accessory |
Performance
| Switching Capacity | 10 Gbps |
| Total Non-Blocking Throughput | 5 Gbps |
| Forwarding Rate | 7 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 2,000 |
Hardware
| PoE+ | 4 |
| PoE++ | 1 |
| PoE+ | 25W |
| Max. Power Consumption | 5W (Excluding PoE Output) 51W (Including PoE Output) |
| Power Method | PoE++ |
| Power Input Method | PoE |
| Supported Voltage Range | 50–57V PoE |
| Management | Ethernet |
| Heat Dissipation | 17.1 BTU/hr (Excluding PoE Output) |
| Weight | 230 g (8.1 oz) |
| ESD Protection | Air/contact: ± 16kV |
| Ambient Operating Temperature | 46W PoE output: -40 to 55° C (-40 to 131° F) 25W PoE output: -40 to 65° C (-40 to 149° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 14502-20-08356 |
Software
| UniFi Network | Version 5.10.3 and later |
Downloads & documents
