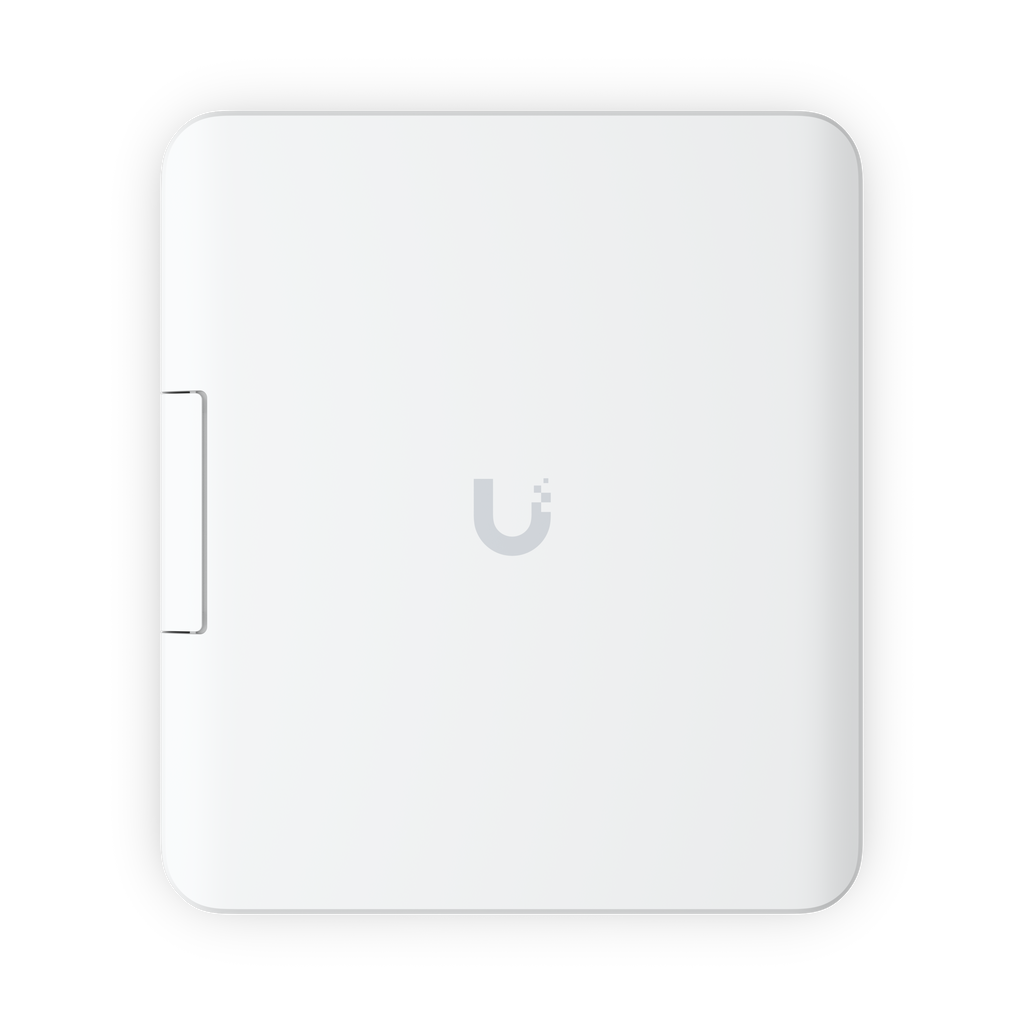

Switch Flex Utility
USW-Flex-Utility
The Switch Flex Utility is an outdoor weatherproof enclosure designed for use with the Switch Flex.Key features Outdoor weatherproof enclosure Max. PoE budget 46W Clean cable management and screw lock...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.

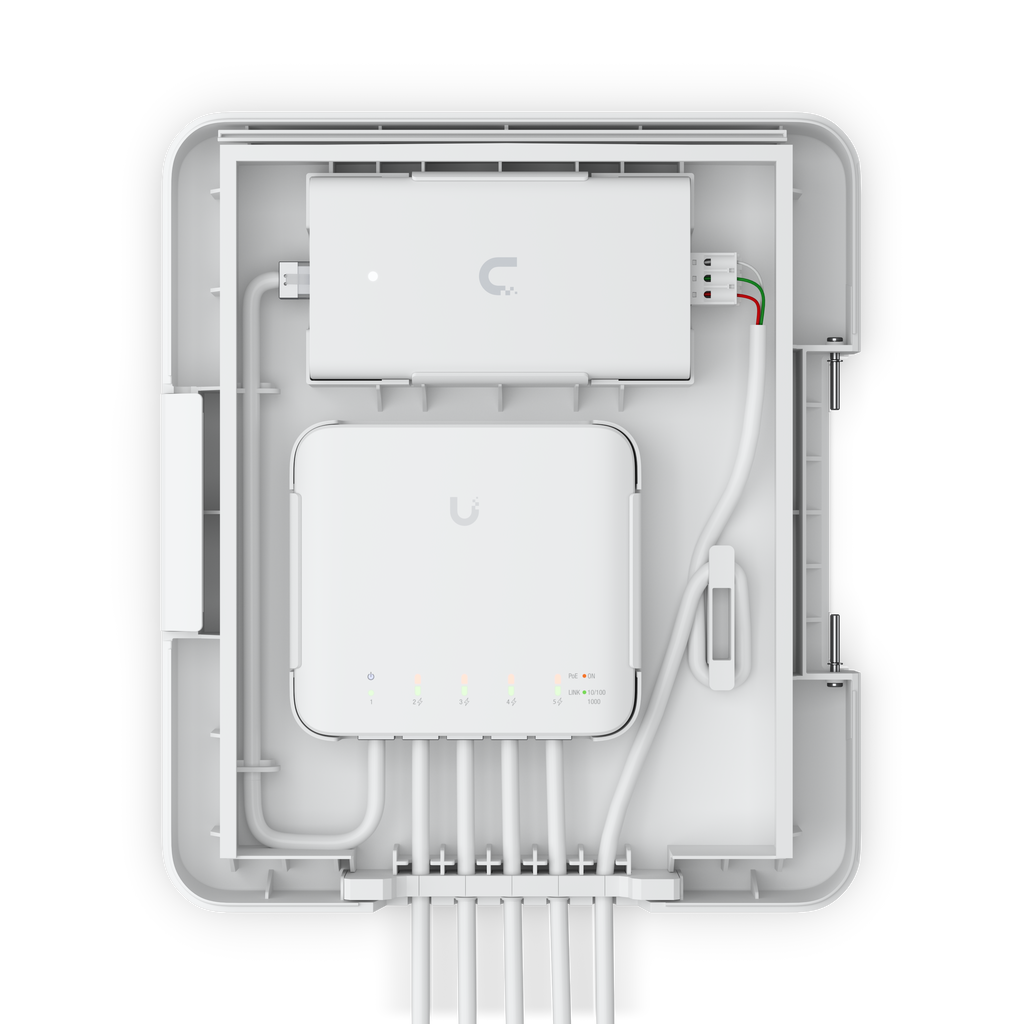

The Switch Flex Utility is an outdoor weatherproof enclosure designed for use with the Switch Flex.
Key features
Outdoor weatherproof enclosure
Max. PoE budget 46W
Clean cable management and screw lock for security

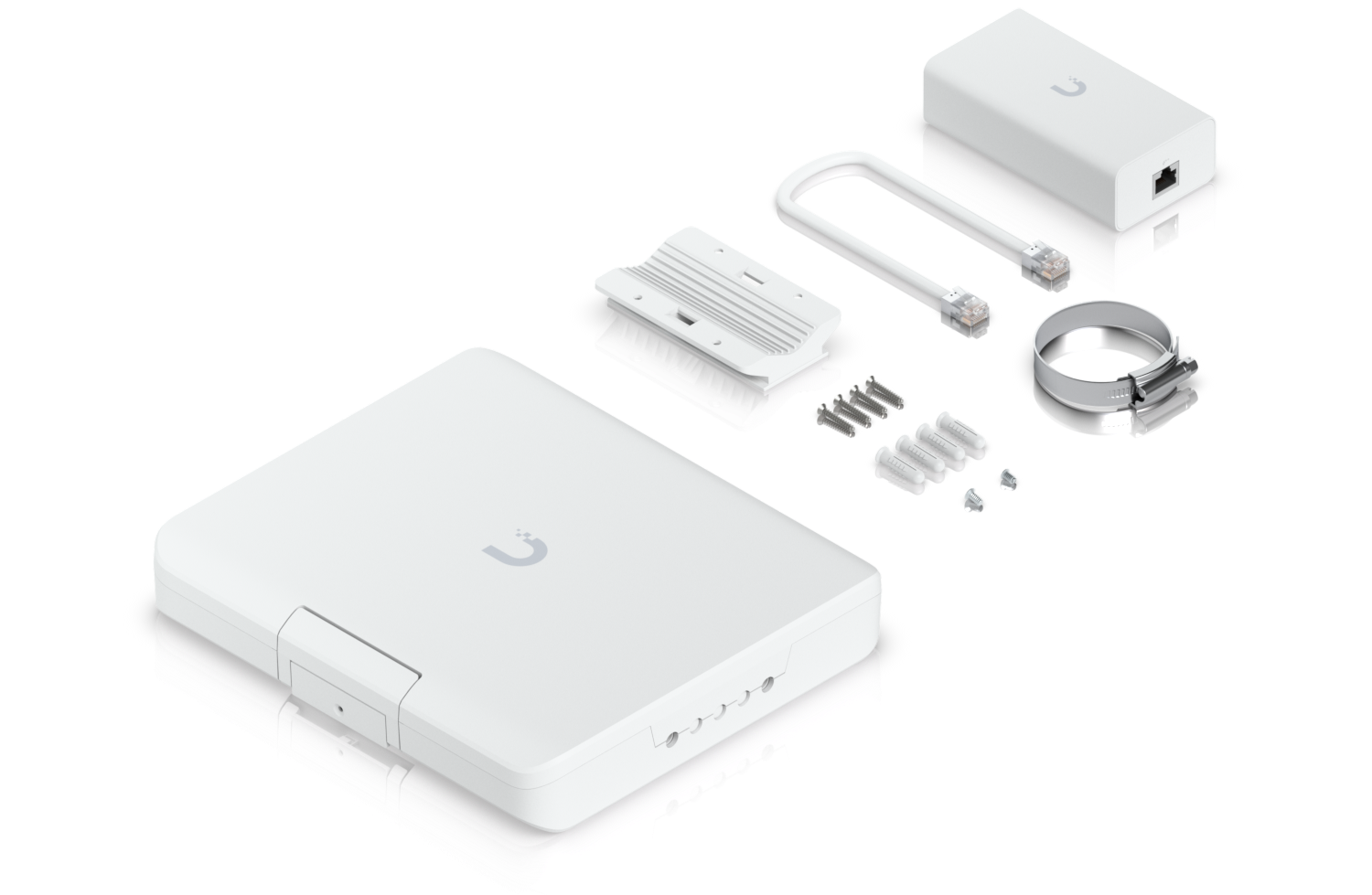

Includes an Ethernet patch cable and a 60W PoE adapter
Compatible with Switch Flex
Specifications
Overview
| Dimensions | Enclosure: 249 x 218 x 60 mm (9.8 x 8.6 x 2.4") Adapter: 118.5 x 63 x 34.7 mm (4.7 x 2.5 x 1.4") |
| Weight | Enclosure: 740 g (1.6 lb) Adapter: 206 g (7.3 oz) |
| Output Voltage | 54V, 1.11A |
| Rated Voltage | 100–240V AC |
| 4-pair Powering | Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) |
| Input Current | 1.5A Max. |
| Efficiency | 86+% |
| Output Ripple | 200mVpp |
| Line Regulation | ≤1% |
| Load Regulation | ≤3% |
| Power Supply | AC/DC |
| Surge Protection | 4kV difference and Common mode |
| Ambient Storage Temperature | -30 to 70° C (-22 to 158° F) |
| Ambient Operating Temperature | -20 to 60° C (-4 to 140° F) |
| Ambient Operating Humidity | 5 to 90%, noncondensing |
| Certifications | CE, FCC, IC |
